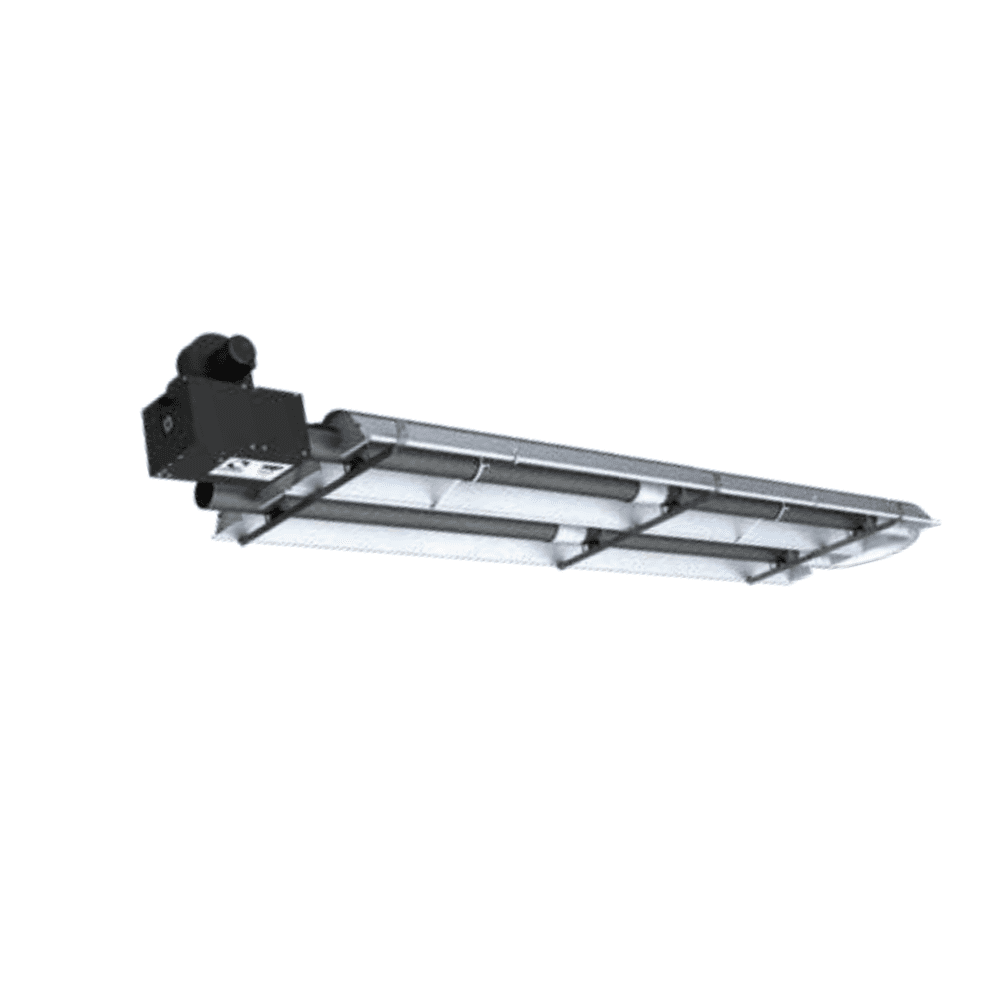

Powrmatic PVU30 Warehouse Vacuum Radiant U Tube Heater 30kW/102000Btu 220-240V~50Hz
Powrmatic PVU30 Warehouse Vacuum Radiant U Tube Heater 30kW/102000Btu 220-240V~50Hz is listed for TieDex store sale under Gas Radiant Tube Heater. The brand/vendor is Powrmatic. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
This Kit Includes: 1 × Powrmatic SRP PVU30 Vacuum Radiant U-Tube Heater 1 × High-efficiency aluminised steel U-tube radiant emitter assembly 1 × Precision aluminium radiant reflector system 1 × Gas burner with induced draft vacuum fan assembly 1 × Suspension mounting bracket kit 1 × Factory-installed ignition and safety control module 1 × MC200 Optimised Control MC200V3 High Output Vacuum U-Tube Radiant Heater for Industrial Warehouse Heating The Powrmatic SRP PVU30 is a high-performance vacuum radiant U-tube heater designed to provide efficient infrared heating across warehouses, factories and large industrial workspaces. Delivering a heat input of 30 kW, the PVU30 provides powerful radiant heat coverage while maintaining a compact installation footprint compared with longer linear radiant tube systems. Vacuum radiant heating technology draws combustion gases through the radiant emitter tube using an induced draft fan system. This ensures a
consistent temperature along the emitter tube and improves radiant heat distribution while maintaining stable combustion performance. Two-stage high/low burner operation allows rapid warm-up when required and efficient steady-state heating during normal operation. Infrared radiant heating works by warming people, machinery and floor surfaces directly rather than heating the surrounding air. This makes radiant heaters particularly effective in buildings with high ceilings where warm air would otherwise rise and accumulate near the roof. By concentrating heat in the occupied working area, radiant heating systems improve comfort while reducing energy loss caused by stratification. The U-tube emitter configuration allows strong radiant heat output while keeping the overall installed length compact. This makes the PVU30 particularly suitable for warehouses, workshops and industrial buildings where ceiling space or structural layout limits the installation of longer linear radiant heaters. When paired with the MC200 optimised
controller, the heater delivers precise temperature control and efficient energy management across demanding industrial heating installations. Key Product Features: • Vacuum radiant U-tube gas heater • Heat input: 30 kW / 102,000 Btu • Induced draft vacuum burner technology • Two-stage high/low burner operation • Compact U-tube radiant emitter configuration • High-efficiency aluminium reflector system • Uniform radiant heat distribution • Suitable for Natural Gas or LPG operation • Supplied with MC200 optimised digital controller • Suspended ceiling installation for industrial buildings • Ideal for warehouses, factories and distribution centres • Reduces heat stratification in high-ceiling environments Technical Specifications: Model: SRP PVU30 Product Type: Vacuum U-Tube Gas Radiant Heater Heat Input (High Fire): 30 kW Heat Input (Low Fire): 23 kW Heating Capacity: 30 kW / 102,000 Btu Fuel Type: Natural Gas (G20) or LPG (G31) Heating Method: Infrared Radiant
Tube Heating Electrical Supply: 220-240V~50Hz 1Ph Burner Type: Gas burner with induced draft vacuum fan Emitter Tube Configuration: U-Tube Radiant Emitter Flue Diameter: 100 mm Installation Type: Suspended ceiling mounting Applications: • Industrial warehouses • Manufacturing plants • Logistics and distribution centres • Workshops and engineering facilities • Agricultural buildings • Commercial storage facilities Compatible Accessories: Description Included Part Number Used On Flue Dia (mm) £ Vertical B22 (Single Pipe) Flue Kit 1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands PSRP/VFK/1 PU/PVU 100 503 PSRP/VFK/2 PL/PVL 100 555 PSRP/VFK/3 PVDL 130 657 Horizontal B22 (Single Pipe) Flue Kit 2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands PSRP/HFK/1
PU/PVU 100 733 PSRP/HFK/2 PL/PVL 100 483 PSRP/HFK/3 PVDL 130 609 Vertical C32 (Twin Pipe Balanced) Flue Kit 1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 PSRP/VBFK/1 PVU 100 881 PSRP/VBFK/2 PU 100 961 Description Included Part Number Used On Flue Dia (mm) £ Vertical B22 (Single Pipe) Flue Kit 1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands PSRP/VFK/1 PU/PVU 100 503 PSRP/VFK/2 PL/PVL 100 555 PSRP/VFK/3 PVDL 130 657 Horizontal B22 (Single Pipe) Flue Kit 2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm
length, 1 × Horizontal terminal, 6 × Locking bands PSRP/HFK/1 PU/PVU 100 733 PSRP/HFK/2 PL/PVL 100 483 PSRP/HFK/3 PVDL 130 609 Vertical C32 (Twin Pipe Balanced) Flue Kit 1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 PSRP/VBFK/1 PVU 100 881 PSRP/VBFK/2 PU 100 961 Difference Between PVL20LS and PVL20: Model Heat Input Main Difference Tube Length PVL20LS 22 kW Longer radiant tube system ~8 m PVL20 22 kW Standard length radiant tube system ~9.85 m
Key Details
- Brand / Vendor: Powrmatic
- Product SKU: SRP-20563
- MPN / Model: PVU30
- Category: Gas Radiant Tube Heater
- Parent Category: Heating
- Condition: New
- Availability: InStock
