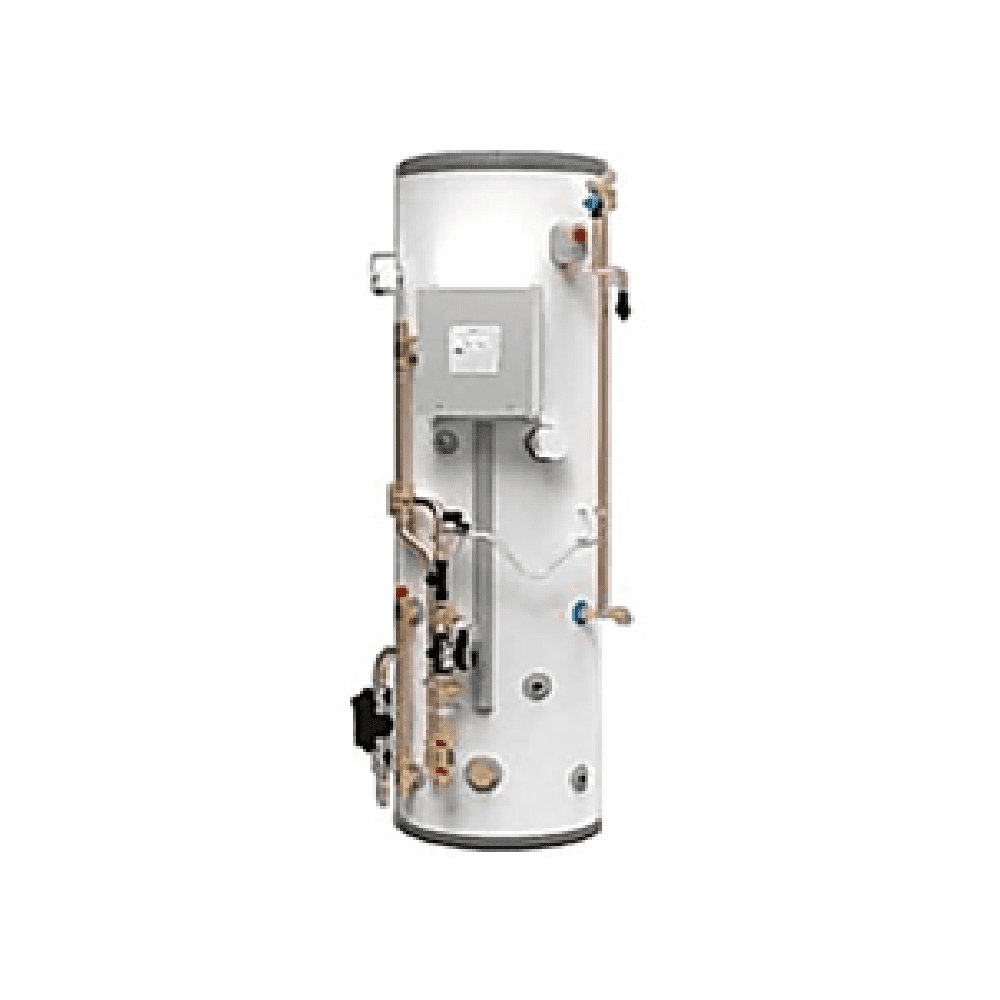

Samsung Air Conditioning Samsung EHS ACL-250PFW Slimline Pre-Plumbed DHW Cylinder 250L + 70L Buffer 1Ph
Samsung Air Conditioning Samsung EHS ACL-250PFW Slimline Pre-Plumbed DHW Cylinder 250L + 70L Buffer 1Ph is listed for TieDex store sale under Solar / Heat pump Compatible Hot Water Cylinders. The brand/vendor is Samsung Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
This Kit Includes: • 1 × Samsung EHS Slimline Pre-Plumbed DHW Cylinder ACL-250PFW (250L cylinder + 70L buffer) • MIM control kit pre-installed (factory fitted) • G3 compliance kit (expansion vessel, cold water groupset and tundish) • Pre-plumbed hydraulic components ready for installation • Installation and user documentation High-Capacity Slimline Pre-Plumbed Cylinder with Integrated Buffer for Heat Pump Systems The Samsung EHS ACL-250PFW is a premium slimline, pre-plumbed domestic hot water cylinder designed for higher demand properties using Samsung EHS air source heat pumps. With a generous 250L cylinder and a 70L integrated buffer tank, it’s built to deliver strong hot water availability while helping the heat pump run smoothly and efficiently across varying heating loads. Because the cylinder arrives pre-plumbed with the MIM control kit already installed, it reduces onsite labour, speeds up commissioning, and keeps the finished plant
room layout clean and professional. The integrated buffer supports stable flow, reduces short cycling, and improves overall system control—particularly useful where zoning, multiple emitters, or mixed heating circuits are in play. Manufactured from high-grade 316L duplex stainless steel and tested to BS EN12897:2016, the ACL-250PFW is engineered for long service life. The high-gain, smooth double-pass coil supports efficient heat transfer at lower flow temperatures, making it a strong match for modern heat pump performance. Colour-coded tapping collars also make pipework connections clearer and quicker during installation. Key Product Features: • Slimline pre-plumbed DHW cylinder with integrated buffer tank (250L + 70L) • Designed for Samsung EHS air source heat pump systems • 316L duplex stainless steel construction for durability and corrosion resistance • High-gain, smooth double-pass coil for efficient heat transfer • Pre-installed MIM control kit for streamlined system integration
• Supplied with G3 compliance kit as standard • Integrated buffer helps stabilise flow and reduce heat pump cycling • Colour-coded tapping collars for quicker, cleaner installation • Includes key hydraulic components for a tidy plant room finish Technical Specifications: Product Code: ACL-250PFW Cylinder / Buffer Capacity: 250L / 70L Usable Water Volume V40: 393L Actual DHW Volume: 236L Height: 1980mm Diameter: 600mm Weight (Empty): 100kg Weight (Full): 336kg Coil Size: 2.5m² Coil Rating: 26.7kW Standing Heat Loss: 1.75kW/24h (73W) Energy Efficiency Class: C Booster Heater DHW: 3kW @ 230V AC Buffer Tappings: 1" BSP (2 primary / 2 secondary) Optional Backup Heater Tapping: Yes (2 1/4") 3-Port Diverter Valve (28mm): Honeywell V4044C1288 Flow Meter: Yes (Sika) Magnetic Filter: Yes DHW Temperature Sensor: Yes Filling Loop / Fill-Flush Point: Yes Primary PWM Circulating Pump: Wilo Para 8-75/iPWM DHW Expansion Vessel:
19L Warranty: • 25-Year Tank Shell warranty • Standard 2-Year Samsung product warranty • Extended 7-Year Samsung warranty available for Samsung trained installers • Note: tank mechanical components (e.g., pump and motorised valve) remain 2-years Disclaimer: Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
Key Details
- Brand / Vendor: Samsung Air Conditioning
- Product SKU: ACL-250PFW
- MPN / Model: ACL-250PFW
- Category: Solar / Heat pump Compatible Hot Water Cylinders
- Parent Category: Air To Water Heat-pump
- Condition: New
- Availability: InStock
