Samsung Air Conditioning Samsung EHS AE050CXYDEK/EU ACL-150PSW Slim Pre-Plumbed DHW Cylinder 150L 30L Buffer 5Kw R290 1Ph
Samsung Air Conditioning Samsung EHS AE050CXYDEK/EU ACL-150PSW Slim Pre-Plumbed DHW Cylinder 150L 30L Buffer 5Kw R290 1Ph is listed for TieDex store sale under Solar / Heat pump Compatible Hot Water Cylinders. The brand/vendor is Samsung Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

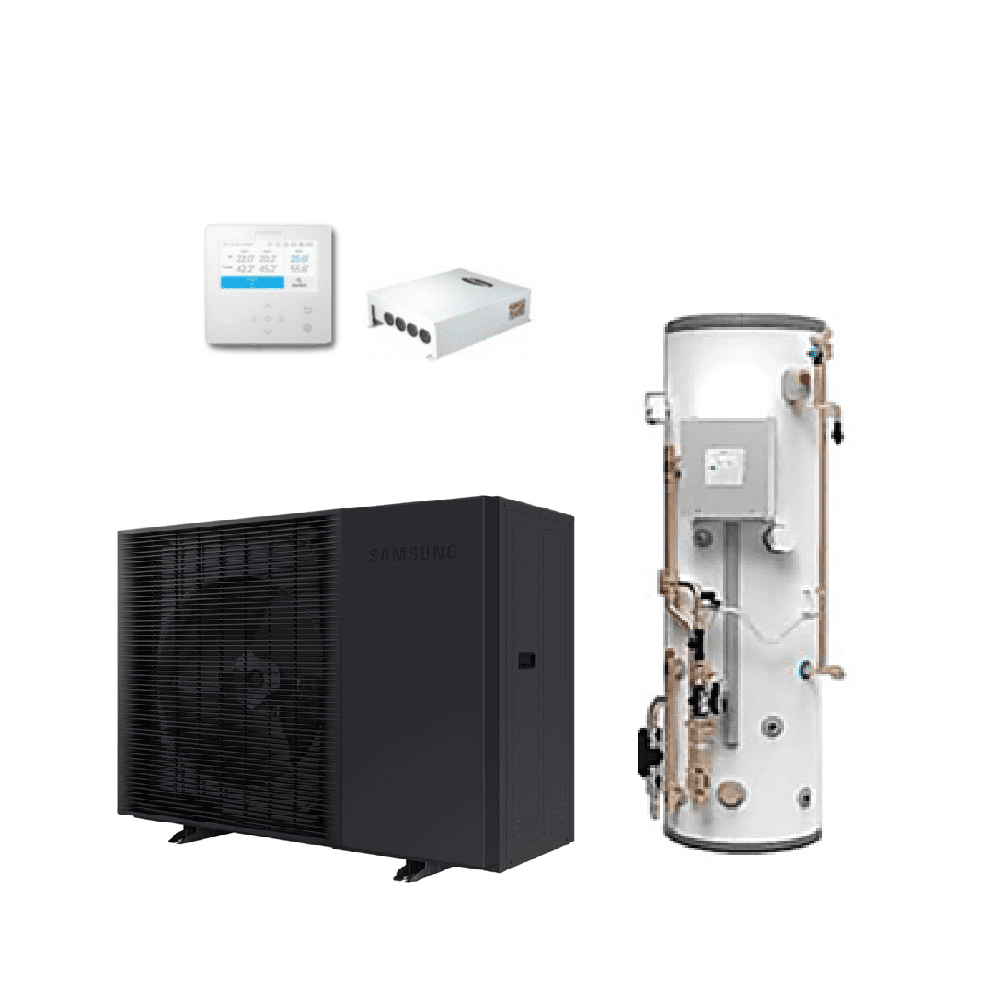

This Kit Includes: • 1 × Samsung EHS Monobloc Air to Water Heat Pump AE050CXYDEK/EU (R290, 5kW, 1 Phase) • 1 × Samsung Slim Line Pre-Plumbed DHW Cylinder ACL-150PSW (150L cylinder with 30L buffer) • Factory-fitted/pre-installed hydraulic components as part of the cylinder package • G3 compliance kit components supplied with the cylinder package • Installation and user documentation • Includes MIM-E03EN (2-zone) control, with optional control kit MIM-E03FN (2-zone) Compact R290 monobloc + slimline cylinder package for efficient DHW and heating This Samsung EHS package pairs a 5kW R290 monobloc air-to-water heat pump with a slimline, pre-plumbed 150L cylinder that includes an integrated 30L buffer. It’s a tidy, space-conscious solution for properties where you want a cleaner install, predictable performance, and a high-quality hot water setup without building a full plant room from scratch. Because the unit is monobloc,
the heating circuit stays on the water side, which keeps the installation straightforward for many domestic layouts. The R290 refrigerant platform is designed to support higher flow temperatures up to 75°C , making it a strong option for upgrades where radiators and domestic hot water performance matter. The integrated buffer in the cylinder package helps stabilise system flow and can support smoother operation during demand changes and defrost cycles. The cylinder itself is built for long service life and practical commissioning: pre-plumbed components, colour-coded connections, and the core safety/compliance items included, reducing time on-site and helping achieve a neat, repeatable install standard for your customers. Key Product Features: • 5kW R290 monobloc air-to-water heat pump for heating and hot water applications • High temperature capability with max heating flow temperature up to 75°C • Slimline 150L cylinder with integrated 30L
buffer for improved system stability • Pre-plumbed cylinder package to simplify installation and reduce on-site labour • High-grade stainless steel cylinder construction with long-life design intent • Integrated “fit-and-finish” details including colour-coded tapping collars for quicker pipe identification • Suitable for single-zone or two-zone control configurations (control kit selectable) Technical Specifications: Heat Pump (AE050CXYDEK/EU): Heating output: 5kW Phase: 1Ph Min / Max heating flow temperature: 15°C / 75°C Min / Max cooling flow temperature: 5°C / 25°C MCS listed SCOP (as provided): 4.84 (@35°C), 4.49 (@40°C), 4.14 (@45°C), 3.78 (@50°C), 3.42 (@55°C), 3.18 (@60°C), 2.93 (@65°C) Dimensions (H × W × D): 850 × 998 × 500 mm Weight: 86.0 kg Min / Max flow rate: 7 / 48 L/min Sound power level: 55 dB(A) Refrigerant: R290 Refrigerant charge: 0.63 kg Cylinder (ACL-150PSW): Cylinder / Buffer (Ltr/Ltr): 150 / 30
Usable water volume (V40): 230 L Actual DHW volume: 134 L Height: 1898 mm Diameter: 475 mm Weight empty / full: 75 / 214 kg Coil size: 1.8 m² Coil rating: 26.6 kW Standing heat loss: 1.64 kWh/24h (68 W) Energy efficiency class: C Booster heater (DHW): 3kW @ 230V AC Buffer tappings: 1" BSP (2 primary / 2 secondary) 3-port diverter valve: Honeywell V4044C1288 Flow meter: Sika Magnetic filter: included (multi-layered mesh strainers) DHW temperature sensor: included Filling loop and fill/flush point: included Primary PWM circulating pump: Wilo Para 7-50/iPWM DHW expansion vessel: 12 L Quick Zone Controller Difference: MIM-E03EN (2-zone) vs MIM-E03FN (2-zone): MIM-E03EN (2-Zone – standard control): Includes: MWR-WW10N wired controller “standard” wall control Best for: straightforward installs where you just want reliable 2-zone control without the premium touchscreen. MIM-E03FN (2-Zone – premium touch + Wi-Fi): Includes:
a 7" Touch Controller and Wi-Fi included Best for: customers who want a nicer front-end, easier day-to-day adjustment, and app/control convenience out of the box. What stays the same (both kits): Both are designed to run 2 separate heating zones (typical example: UFH + radiators with different control demands), as part of a Samsung EHS monobloc setup Disclaimer: Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
Key Details
- Brand / Vendor: Samsung Air Conditioning
- Product SKU: AE050CXYDEK/EU ACL-150PSW
- MPN / Model: AE050CXYDEK/EU ACL-150PSW
- Category: Solar / Heat pump Compatible Hot Water Cylinders
- Parent Category: Air To Water Heat-pump
- Condition: New
- Availability: InStock
