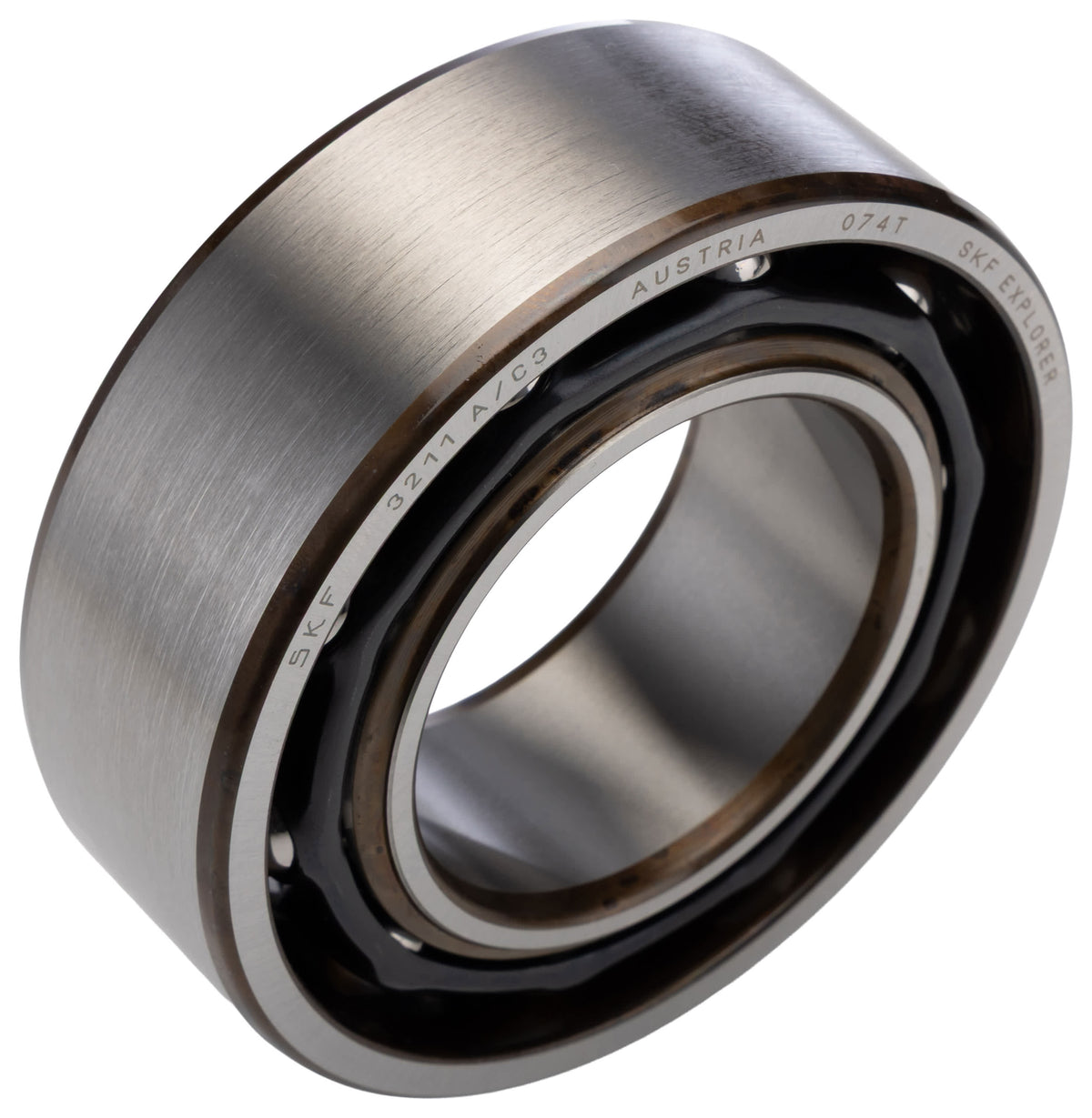

This ball bearing is a double-row angular contact unit designed to support combined radial and axial loads in rotating assemblies. It is intended for applications requiring continuous operation at moderate rotational speeds and presents an open configuration for ease of inspection and lubrication access.
Features and Benefits
- 6300r/min limiting speed for sustained rotational performance
61kN dynamic load capacity for high operational load handling
52kN static load capacity for strong stationary load resistance
C3 internal clearance to accommodate thermal expansion under load
30° contact angle for effective axial load transfer between rows
Sheet-metal cage to maintain ball separation and reduce friction
Applications
- Suitable for paired shaft arrangements requiring axial support
Ideal for moderate-speed gearboxes and transmission systems
Used with rotating machinery where axial and radial loads coexist
Can be used for industrial spindle support with accessible lubrication
Appropriate for assemblies needing an open bearing configuration
What is the bore specification for installation?
The bore is a parallel 55 mm design intended for direct journal mounting.
What external envelope must the housing accept?
The outer diameter measures 100 mm and housings should accommodate this size.
How wide is the bearing for axial space planning?
The race width is 33.3 mm and should be allowed for in axial clearance calculations.
What materials are in contact with the raceways and balls?
The rolling elements are steel and operate within steel raceways to provide wear resistance.
How many rows of rolling elements are present and what is the end configuration?
There are two rows of angular-contact balls and the bearing is supplied with open ends.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
