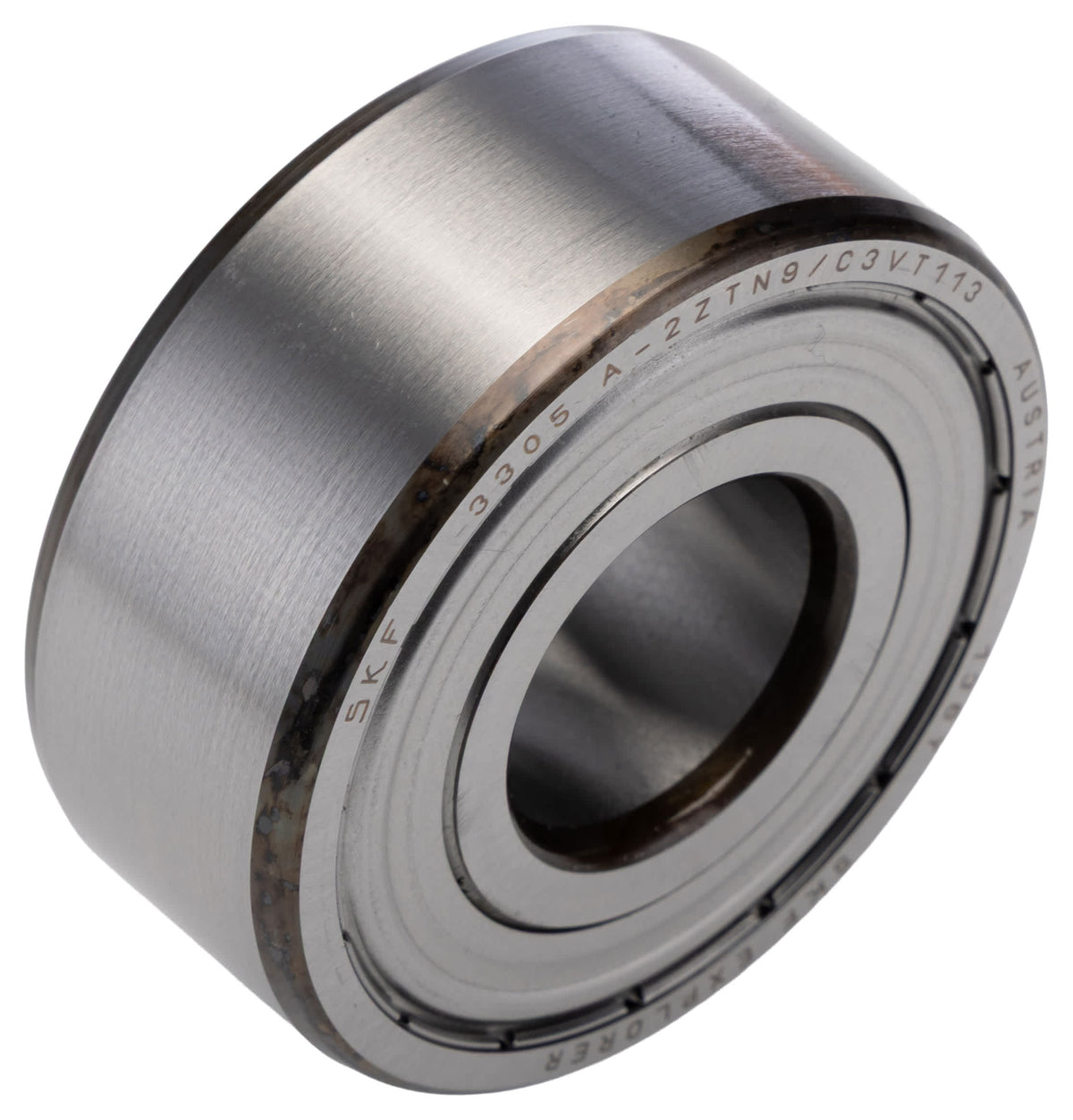

This ball bearing is a double-row angular contact unit designed to support combined radial and axial loads in rotating assemblies. It is intended for applications requiring relatively high rotational speed and controlled internal clearance, offering a balanced solution where axial load capacity and compactness are required.
Features and Benefits
- 11000 r/min rated for high-speed operation
C3 internal clearance reduces preload sensitivity
30° contact angle improves axial load transmission
32.5 kN dynamic load rating extends service life under duty
22 kN static load rating maintains position under stall conditions
Shielded end type limits contamination ingress during operation
Applications
- Suitable for spindle systems requiring high rotational speed
Used with gearboxes transmitting combined loads
Ideal for rotary indexing mechanisms with axial thrust
Can be used for electric motor shaft support
Used for industrial pumps handling intermittent axial loads
What material composes the rolling elements?
The balls are manufactured from steel.
How is the bore presented for mounting?
The inner bore is of parallel form to accept standard shaft fits.
What cage construction is fitted and why?
A non-metallic cage is used to reduce noise and minimise lubrication wicking.
How wide is the bearing race to accommodate load paths?
The race width measures 25.4 mm to provide increased contact area.
What external dimension governs housing design?
The outer diameter is 62 mm for housing bore selection.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
