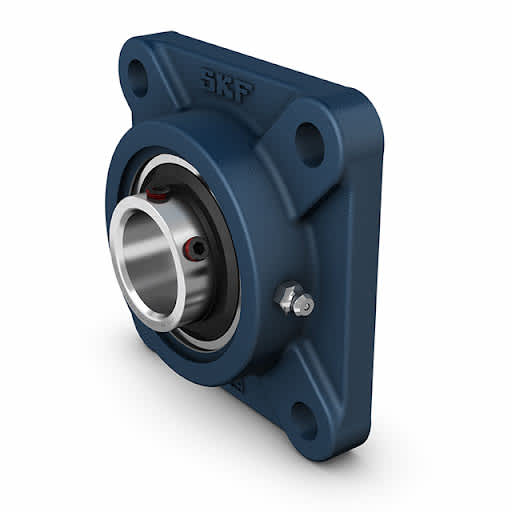

This flanged bearing unit is designed for heavy-duty applications, providing a sturdy solution for material handling systems. With an inside diameter of 60mm, it features a robust cast iron housing that ensures durability and stability. Measuring 193mm in length and 78mm in width, this unit is equipped with four mounting holes for secure installation, making it a reliable choice for various industrial machinery.
Features & Benefits
- Complies with JIS standards ensuring quality performance
- High load ratings of 81.9kN dynamic and 52kN static
- Sealing solution includes standard seals with additional flingers
- Facilitates easy installation with four mounting holes
- Designed for versatile applications in material handling
- Limiting speed of up to 2900 r/min for optimal efficiency
Applications
- Used for conveyor systems for reliable movement of materials
- Ideal for machinery requiring robust bearing solutions
- Used for material handling equipment for increased efficiency
- Suitable for automated systems demanding precision and durability
What load considerations should be taken when selecting this bearing unit?
It features a basic dynamic load rating of 81.9kN and a static load rating of 52kN, making it suitable for applications with significant load demands. Ensuring that the operational loads are within these limits is crucial for optimal performance.
How does the sealing solution benefit performance in industrial applications?
The standard seals, complemented by additional flingers, provide enhanced protection against contaminants, thereby prolonging the bearing's operational life and reducing maintenance needs.
What type of mounting hardware is recommended for this flanged bearing unit?
It is preferred to use attachment bolts with a recommended diameter of 20mm to ensure secure fixation and stability during operation. Additionally, a set screw G2M12x1.5 can be employed for further fastening.
