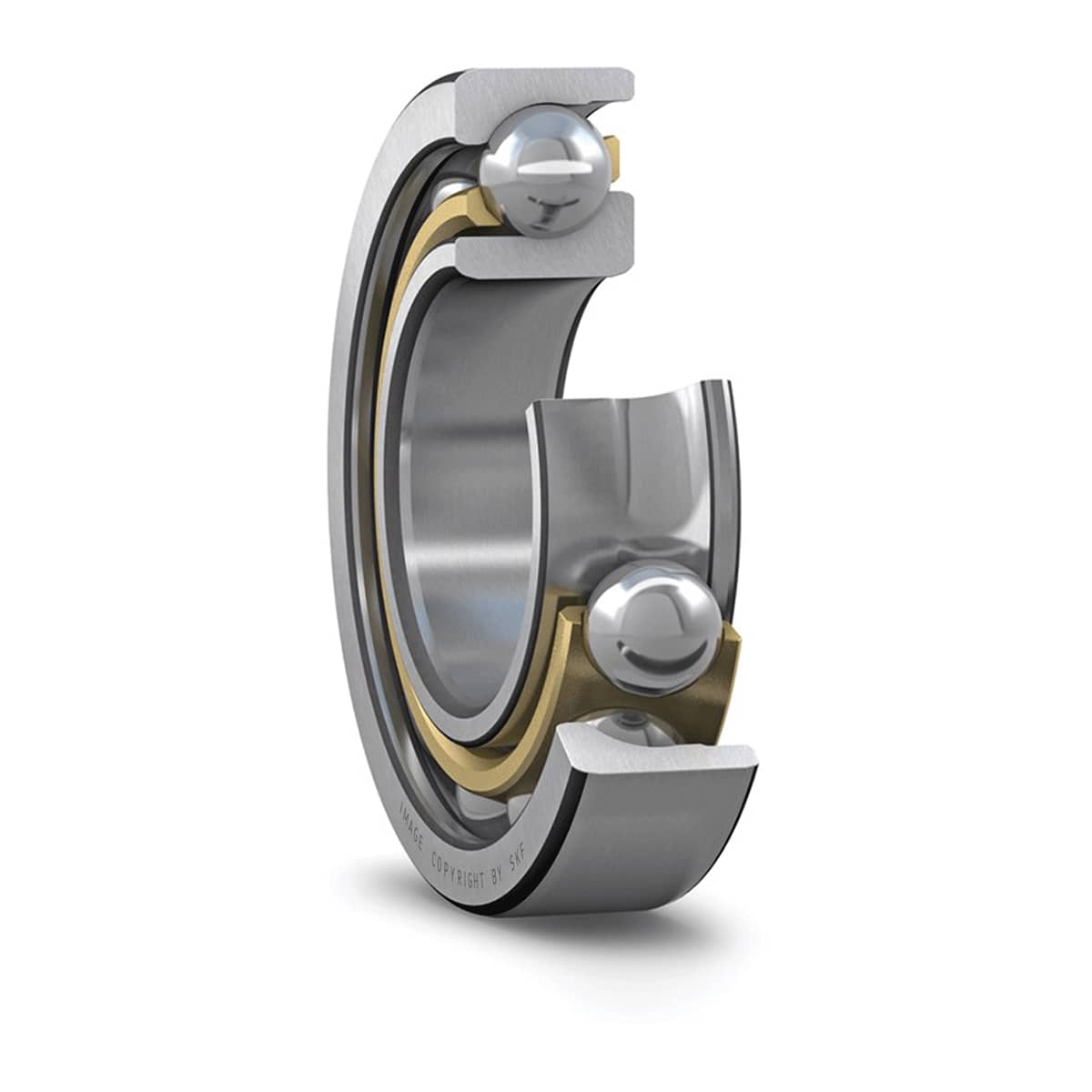

This angular contact ball bearing provides axial and radial load support in rotating machinery where directional load capacity and speed are important. It is a single-row design with a parallel bore and open ends, intended for assemblies in automation, electronics and mechanical drive systems that require a Compact bearing capable of accommodating combined loads while running at elevated rotational speeds.
Features and Benefits
- 40° contact angle increases axial load support capacity
Brass cage reduces friction and improves heat dissipation
Steel balls deliver consistent rolling-element hardness and life
CN internal clearance allows precise preload and alignment control
50kN dynamic load rating sustains heavy operational stresses
13000r/min limiting speed suits high-speed rotating applications
Applications
- Suitable for spindle drives in automation equipment
Ideal for precision motors in electronics manufacturing
Used with gearbox shafts in industrial machinery
Can be used for rotary encoders and servo units
Suitable for electrical actuators requiring axial load handling
What maintenance considerations apply to this bearing in continuous operation?
Regular lubrication monitoring is essential
the open-end design permits relubrication and inspection intervals should align with operating temperature and contamination levels.
How should axial and radial loads be arranged for reliable service?
Position the bearing to take the primary axial load in the direction of the contact angle and combine with radial support elements to distribute forces across the raceways.
What installation tolerances are recommended for the bore and housing?
Use a tight interference fit on the shaft and a lighter fit in the housing to maintain alignment and control internal clearance under operating conditions.
How does the cage material affect thermal performance under high speeds?
The brass cage offers improved thermal conductivity over polymer cages, aiding temperature control at elevated rotational speeds and reducing cage distortion risks.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
