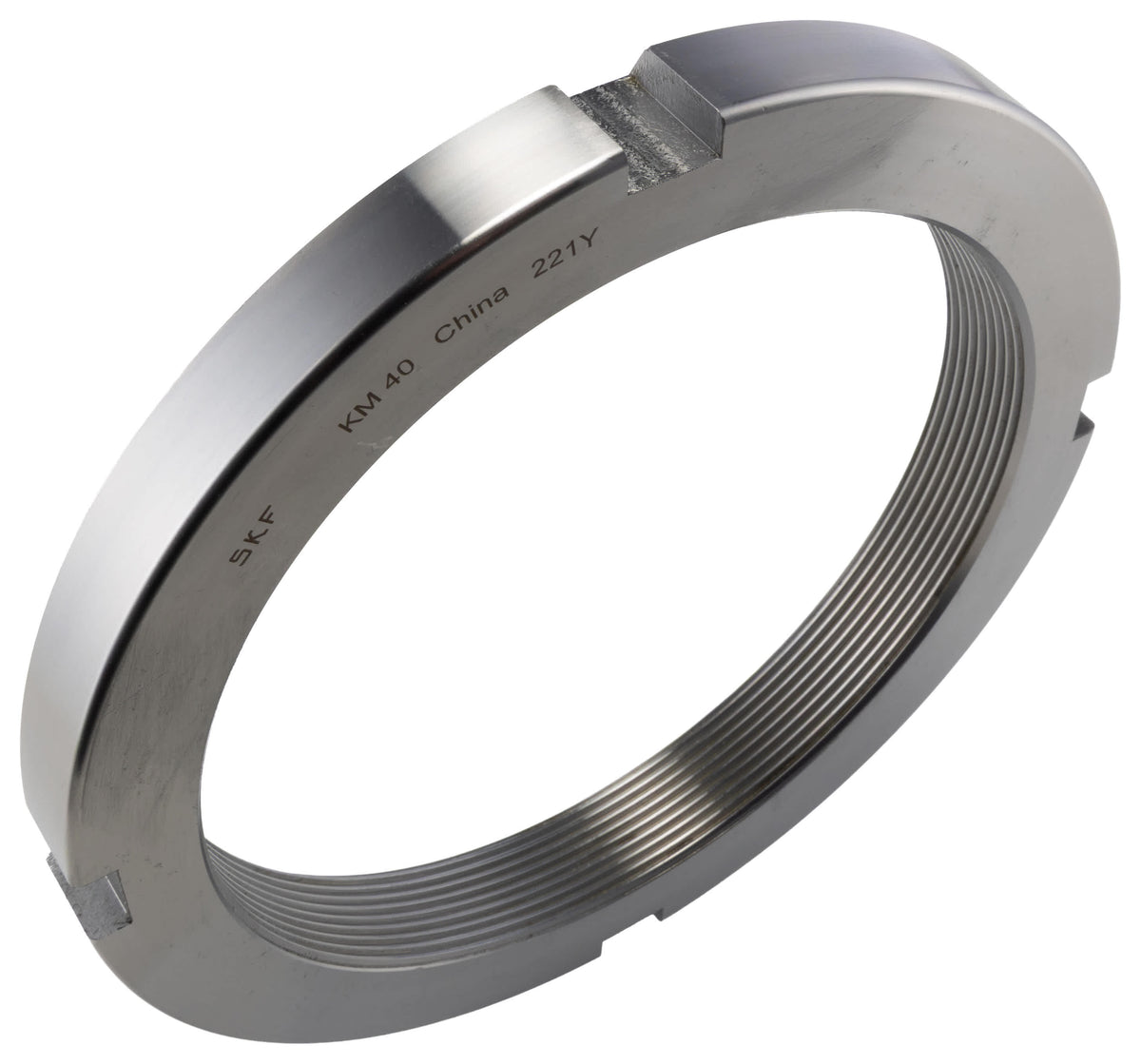

This bearing assembly provides a mechanical Interface for axial securing of rotating shafts within industrial systems. It is designed to work with a lock washer and serves as a locking element to retain bearings on shafts, offering a Compact solution for securing components in automation, electrical and mechanical installations.
Features and Benefits
- 200mm inside diameter enables consistent shaft fitment and alignment • Lock nut and locking device format ensures positive axial retention • Compatible with lock washer to prevent loosening under vibration • Compact thickness contributes to minimal axial space requirement • Manufactured by a recognised brand for component interchangeability
Applications
- Suitable for securing shafts in automation drive modules • Used with industrial gearboxes requiring axial locking • Ideal for mounting bearings in electrical motor assemblies • Can be used for retrofitting mechanical transmission systems
What shaft size will it accommodate?
It fits shafts that match an internal bore of 200mm to achieve the intended compression and locking behaviour with a lock washer.
How does the assembly Interface with a lock washer?
The locking configuration is designed to engage a lock washer, converting torque from the lock nut into axial clamping to maintain preload.
What form factor should I allow for axial clearance?
Account for the assembly profile that corresponds to a 29mm thickness when planning axial envelope and neighbouring components.
Can it be used as a replacement for similar locking nuts?
It serves as a compatible locking element where a bearing lock nut and locking device are specified, matching the stated dimensions and Interface type.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
