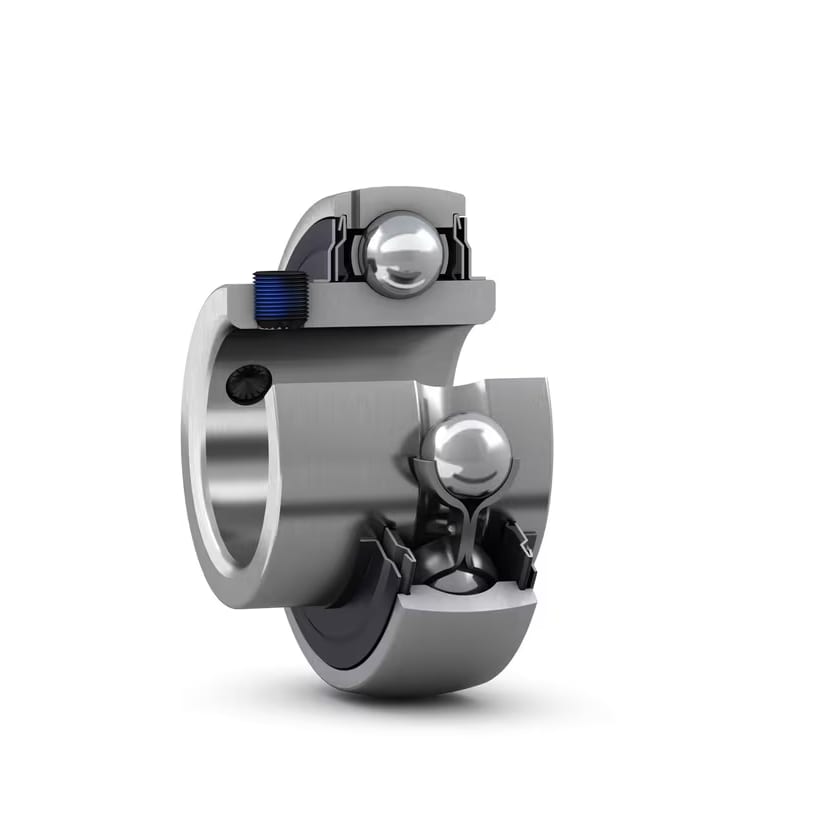

This bearing unit insert provides a Compact rolling-element solution for shaft support within mounted housings used across industrial systems. Designed for robust radial load handling and routine rotational applications, it operates as the internal insert component for mounted units where a cylindrical bore Interface and secure shaft fixing are required.
Features & Benefits
- Dynamic load capacity 114000N supports heavy radial loads
Static load capacity 76500N resists shock and static moments
Screw-type locking enables quick and positive shaft clamping
Limiting speed 2300r/min suits moderate to high-speed drives
**Applications**
- Suitable for conveyor drive shafts in automation lines
Ideal for motor output shafts in electrical equipment
Used with gearboxes in mechanical power transmission
Can be used for support bearings in industrial fans
Suitable for rotational components in electronics manufacturing rigs
What bore Interface does it use for shaft seating?
It provides a cylindrical bore allowing plain shaft engagement without tapered modification.
How does the locking method affect installation?
The screw locking mechanism secures the insert on the shaft using axial screws, enabling straightforward fitting and adjustment without additional locking collars.
What clearance should be considered for housing fitment?
Plan for an insert outside diameter of 160mm to match the housing bore intended for this size of mounted unit.
What axial width must housings accommodate?
The unit requires 82mm of axial space within the housing to ensure full seating and correct retention.
Which material properties influence maintenance cycles?
The steel construction provides dimensional stability and wear resistance, reducing the frequency of replacement under typical radial loading conditions.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
