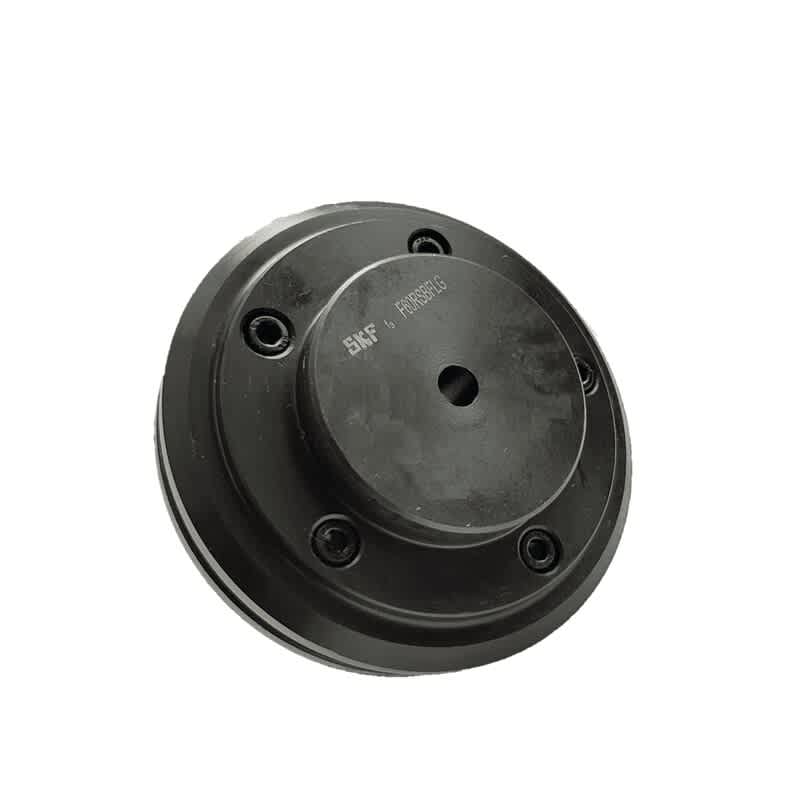

This rigid shaft coupling, categorised as a flange coupling, is designed to accommodate a bore size of up to 90mm. With an outside diameter of 279mm and a length of 53mm, it offers robust performance suitable for various industrial applications. The coupling is ideal for transferring high torque efficiently, addressing mechanical connection needs across diverse sectors.
Features & Benefits
- Flange design ensures secure and stable connections
- Capable of handling maximum bore dimensions of 90mm
- Weighs 12.5kg, suitable for heavy-duty requirements
- Precision-engineered for enhanced coupling performance
- Provides tailored mechanical coupling solutions for varied setups
- Optimises torque transfer efficiency for reliable machinery operation
Applications
- Used for heavy-duty machinery requiring reliable couplings
- Ideal for within the automation and mechanical industries
- Used for systems needing high torque transmission
- Suitable for environments where space constraints are pivotal
What specific dimensions should be considered for installation?
It is essential to ensure compatibility with the maximum bore size of 90mm and to account for the coupling's outside diameter of 279mm to fit within your system designs efficiently.
How does this coupling contribute to improved machinery efficiency?
The coupling's flange design and high torque capacity facilitate smoother power transmission, reducing mechanical strain and enhancing the overall operational efficiency of connected systems.
In what scenarios would I benefit from using this specific coupling?
It is particularly beneficial in setups where robust connections are needed, such as in heavy machinery or systems where high torque is essential for optimal performance.
What is the weight of this coupling, and how does it impact installation?
Weighing 12.5kg, the coupling provides stability during operation; however, it is advisable to consider appropriate mounting methods to support its weight effectively during installation.
What are the implications of using a rigid design for coupling applications?
A rigid design eliminates play between connected shafts, ensuring accurate alignment and uniform torque transfer, which is crucial for high-precision applications in the industrial sector.
