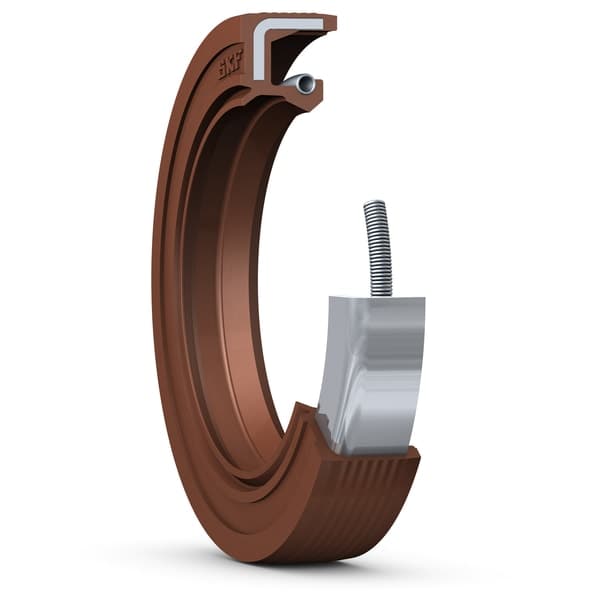

This rotary shaft seal provides a sealing solution for rotating equipment where oil containment and environmental exclusion are required. It is designed for radial installation on shafts and suits industrial settings in automation, electronics, electrical and mechanical sectors. The component uses compounded elastomer and metal reinforcement to maintain sealing contact under dynamic conditions.
Features and Benefits
- Rubber–metal reinforced construction for sustained sealing performance
Rated to operate up to 200°C for high-temperature applications
Withstands environments down to -25°C for cold-start reliability
Conforms to ISO 6194 for dimensional and functional consistency
Meets DIN 3760 for interchangeability with common industry components
Applications
- Suitable for pumps requiring oil retention in manufacturing plants
Ideal for electric motor shaft sealing in control cabinets
Used with gearboxes in conveyor and automation systems
Can be used for rotating assemblies in test and measurement rigs
What shaft size does this seal accept?
The seal fits shafts with an internal diameter of 72mm, ensuring correct radial contact for effective fluid retention.
How thick is the sealing element and why does it matter?
The axial thickness is 10mm which provides a Compact profile while maintaining adequate lip engagement and axial stability in housings.
Which external dimension should housings accommodate?
The outer diameter of the component is 100mm, so housings must permit a press-fit or appropriate retention for that outside measurement.
What materials compose the sealing assembly?
The construction combines elastomeric sealing material bonded to a metallic reinforcement to preserve lip preload and resist distortion during operation.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
