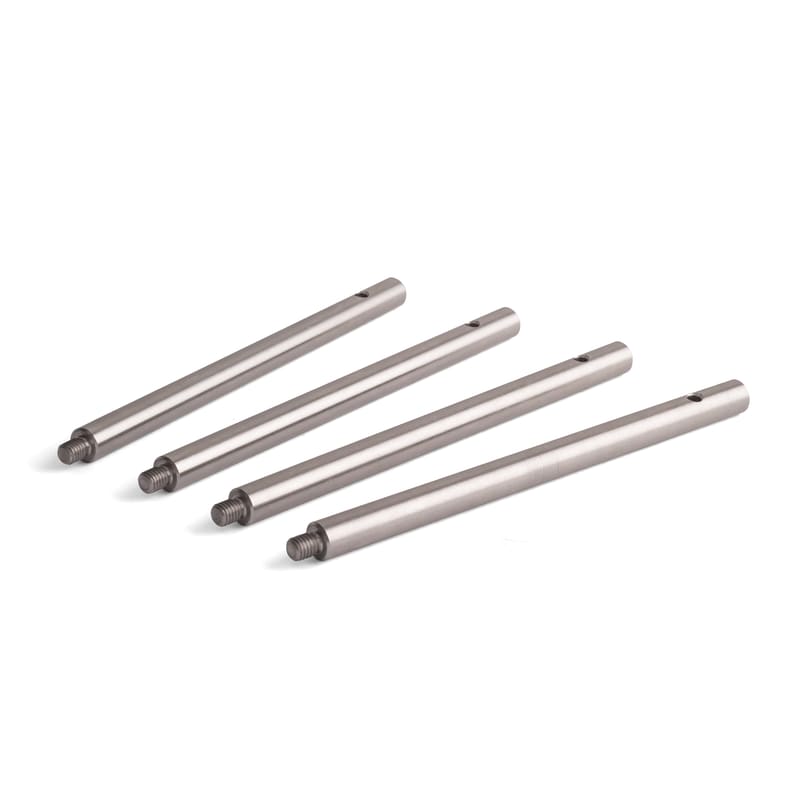

This shaft alignment tool is an accessory set designed to extend the reach of laser alignment systems for rotating machinery. It provides additional threaded connecting rods to adapt existing alignment heads for use in confined or extended coupling arrangements common in automation, electrical and mechanical installations.
Features & Benefits
- Four threaded rods provide modular extension for alignment setups
Threaded connection enables secure assembly during measurements
Lightweight construction minimises added load on alignment heads
Compatible design ensures straightforward integration with existing kits
Precision length support improves repeatable measurement geometry
**Applications**
- Suitable for extending alignment reach on motor and pump couplings
Ideal for confined plant spaces requiring longer probe spacing
Used with shaft laser heads to configure bespoke measurement layouts
Can be used for retrofit adjustments in industrial maintenance routines
How much does the accessory set weigh and why does that matter?
The net mass is 0.4kg which limits additional inertia on alignment heads and simplifies handling during field use.
What length are the connecting rods and how does that affect setup?
Each rod measures 150mm so they provide predictable spacing increments for repeatable alignment geometry in multi-rod assemblies.
Which alignment systems are these rods compatible with?
They are designed to mate with the manufacturer’s range of TKSA alignment heads, allowing adaptation of several head sizes to extended configurations.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
