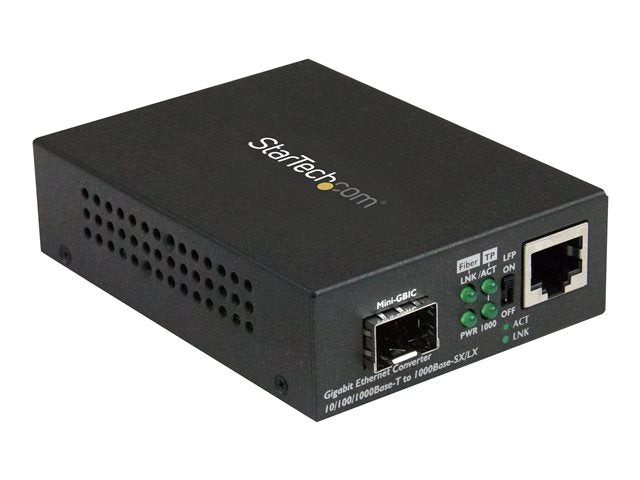

TieDex UK StarTech.com Multimode / Single Mode Fiber Media Converter - Open SFP Slot - 10/100/1000Mbps RJ45 Port - LFP Supported - IEEE 802.1q Tag VLAN - (MCM1110SFP) - fibre media converter - 10Mb LAN, 100Mb LAN, 1GbE

TieDex UK StarTech.com Multimode / Single Mode Fiber Media Converter - Open SFP Slot - 10/100/1000Mbps RJ45 Port - LFP Supported - IEEE 802.1q Tag VLAN - (MCM1110SFP) - fibre media converter - 10Mb LAN, 100Mb LAN, 1GbE

SKU: CPT669866651
Price
Regular price £142.60
Regular price Sale price £142.60
Save <span class=money>£-142.60</span>
/
  • Express Delivery
  • Ship From UK
  • Secure payments
  • Low stock - 10 items left
  • Backordered, shipping soon
Tax included. Shipping calculated at checkout.

StarTech.com Multimode / Single Mode Fiber Media Converter - Open SFP Slot - 10/100/1000Mbps RJ45 Port - LFP Supported - IEEE 802.1q Tag VLAN - (MCM1110SFP) - Fibre media converter - 1GbE - 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T - RJ-45 / SFP (mini-GBIC) - for P/N: GLCLHSMDSTTA, GLCSXMMDST, GLCSXMMDSTT, GLCTEST, MASFP1GBTXST, SFP1GELXST

A versatile way to connect different networks

A versatile way to connect different networks

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
Installation is fast and easy

Installation is fast and easy

The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.

Applications

  • Ideal for secure connections required by government or corporations where EMI is not acceptable
  • Extend or bridge networks cost-effectively using fiber cabling
  • Provide connectivity to users in an isolated area of a large complex or in a separate building
  • Open SFP slot lets you customize your connection mode or distance using most MSA-Compliant transceivers

Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice

  • Convert between an RJ45 copper Ethernet connection and a fiber optic connection to extend your network cost-effectively
  • Gigabit Open SFP slot to customize the network extension distance to your requirements with virtually any MSA-compliant multi or single mode transceiver
  • 10/100/1000 Mbps compatible RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network
  • Compact standalone design and wall mounting option for easy and convenient installation
  • Link Fault Pass (LFP) supported
  • Durable metal housing
  • Auto MDIX
  • Supports IEEE 802.1q Tag VLAN pass through
  • 9K Jumbo Frame supported
Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice
A versatile way to connect different networks

A versatile way to connect different networks

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
Installation is fast and easy

Installation is fast and easy

The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.

Applications

  • Ideal for secure connections required by government or corporations where EMI is not acceptable
  • Extend or bridge networks cost-effectively using fiber cabling
  • Provide connectivity to users in an isolated area of a large complex or in a separate building
  • Open SFP slot lets you customize your connection mode or distance using most MSA-Compliant transceivers

Basic Specifications

Manufacturer's Part Number
MCM1110SFP
EAN
7426801117182
Product Type
Media converter
Device Type
Fibre media converter - RJ-45 / SFP (mini-GBIC)
Designed For
P/N: 3CSFP91ST, 453154B21ST, EXSFP1GELXST, EXSFP1GESXST, EXSFP1GETST, GLCEXSMDST, GLCLHSMDSTTA, GLCLXSMRGDST, GLCSXMMDST, GLCSXMMDSTT, GLCSXMMRGDST, GLCTEST, GLCTSTTAA, GLCZXSMRGDST, J4859CST, J8177C10PKST, J8177CST, JD089BST, JD118BST, JD119BST, MASFP1GBLX10, MASFP1GBSXST, MASFP1GBTXST, SFP1GELXST
Form Factor
External
Dimensions (WxDxH)
7 cm x 2.6 cm x 9.7 cm
Manufacturer Warranty
2-year warranty
Power
AC 120/230 V
Weight
200 g
Data Transfer Rate
1 Gbps
Cabling Type
10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T
Product Description
StarTech.com Multimode / Single Mode Fiber Media Converter - Open SFP Slot - 10/100/1000Mbps RJ45 Port - LFP Supported - IEEE 802.1q Tag VLAN - (MCM1110SFP) - fibre media converter - 10Mb LAN, 100Mb LAN, 1GbE
Model
StarTech.com Multimode / Single Mode Fiber Media Converter - Open SFP Slot - 10/100/1000Mbps RJ45 Port - LFP Supported - IEEE 802.1q Tag VLAN - (MCM1110SFP)
Data Link Protocol
10Mb LAN, 100Mb LAN, 1GbE

Networking

Connectivity Technology
Wired
Cabling Type
10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T
Data Link Protocol
10Mb LAN, 100Mb LAN, 1GbE
Data Transfer Rate
1 Gbps
Status Indicators
Power, link/activity
Features
Auto-uplink (auto MDI/MDI-X), full duplex mode, Link Fault Pass Through function (LFP), Jumbo Frames support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab

Expansion / Connectivity

Interfaces
1 x Ethernet 1000Base-T - RJ-45 ¦ 1 x Ethernet 1000 - SFP

Power

Power Device
External power adapter
Voltage Required
AC 120/230 V
Power Consumption Operational
5 Watt

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)

Compatibility Information

Designed For
P/N: 3CSFP91ST, 453154B21ST, EXSFP1GELXST, EXSFP1GESXST, EXSFP1GETST, GLCEXSMDST, GLCLHSM10PST, GLCLHSMD10ST, GLCLHSMDST, GLCLHSMDSTTA, GLCLXSMRGDST, GLCSXMM10PST, GLCSXMMDST, GLCSXMMDSTT, GLCSXMMRGDST, GLCT10PKST, GLCTEST, GLCTST, GLCTSTTAA, GLCZXSMRGDST, J4858C10PKST, J4858CST, J4859C10PKST, J4859CST, J8177C10PKST, J8177CST, JD089BST, JD118BST, JD119BST, MASFP1GBLX10, MASFP1GBSXST, MASFP1GBTXST, SFP1GELXST, SFPC1110, SFPG1320C, SFPGESST, SFPGLCLHSMST, SFPGLCSXMMST, SFPSXMM

General

Device Type
Fibre media converter
Form Factor
External
Colour
Brown

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Dimensions & Weight

Width
7 cm
Depth
2.6 cm
Height
9.7 cm
Weight
200 g

Miscellaneous

MTBF
50,000 hours
Compliant Standards
FCC, RoHS, MSA
