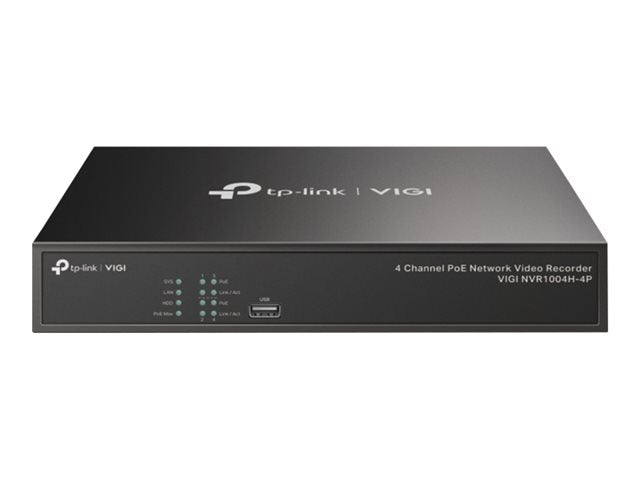

TieDex UK TP-Link VIGI NVR1004H-4P V1 - standalone NVR - 4 channels

TP-Link VIGI NVR1004H-4P V1 - NVR - 4 channels - networked

Basic Specifications

Manufacturer's Part Number

VIGI NVR1004H-4P

EAN

4897098688755

Manufacturer Warranty

3 years

Product Description

TP-Link VIGI NVR1004H-4P V1 - standalone NVR - 4 channels

Model

TP-Link VIGI NVR1004H-4P V1

Dimensions (WxDxH)

24.62 cm x 14.82 cm x 4.5 cm

Device Type

NVR - 4 channels - networked

Voltage

53.5 V

IP Cameras Supported

4

Compression Format

H.265+, H.265, H.264+, H.264

Image Resolution

3840x2160, 1920x1080, 1680x1024, 1440x900, 1280x1024, 1280x720, 1024x768

Hard Drive(s) Supported

Quantity: 1 - total capacity: 10 TB

General

Device Type

NVR

Video Channels

4

IP Cameras Supported

4

Image Resolution

3840x2160, 1920x1080, 1680x1024, 1440x900, 1280x1024, 1280x720, 1024x768

Compression Format

H.265+, H.265, H.264+, H.264

Package Content

HDD screws, mouse

Compliant Standards

IEEE 802.3af, IEEE 802.3at, Plug and Play

Warranty

3 years

Dimensions & Weight

Width

24.62 cm

Depth

14.82 cm

Height

4.5 cm

Connections

Video Input Ports

RJ-45 x 4

Video Output Ports

HDMI x 1, VGA x 1

Audio Input Ports

RCA x 1

Audio Output Ports

RCA x 1

Network Port

10/100Base-T

Other Ports

USB 2.0 x 2

Networking

Network Interfaces

Ethernet 10Base-T/100Base-TX

Supported Protocols

TCP/IP, DHCP, DNS, NTP, UPnP

Features

53W PoE+ power budget, ONVIF support

Hard Drive

Quantity Supported

1

Interface

Serial ATA

Supported Max Total Capacity

10 TB

Power

Voltage

53.5 V

Power Consumption

4.25 Watt

Power Consumption Details

Without HDD

Environmental Parameters

Min Operating Temperature

-10 °C

Max Operating Temperature

55 °C

Security DVR

Playback Search

Date / time, event

Networked

Yes

Features

80Mbps Incoming Bandwidth, 60Mbps Outgoing Bandwidth

Video Server

Features

Two-way audio support
