Toshiba Air Conditioning RAS-2M18G3AVG-E Multi 1 × Mini Cassette RAS-M10S4MUVG-E 1 x RAS-M16S4MUVG-E

Toshiba Air Conditioning RAS-2M18G3AVG-E Multi 1 × Mini Cassette RAS-M10S4MUVG-E 1 x RAS-M16S4MUVG-E

Toshiba Air Conditioning RAS-2M18G3AVG-E Multi 1 × Mini Cassette RAS-M10S4MUVG-E 1 x RAS-M16S4MUVG-E is listed for TieDex store sale under Toshiba Air Conditioning RAS Multi Room Heat Pump Inverter. The brand/vendor is Toshiba Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.

Product Overview

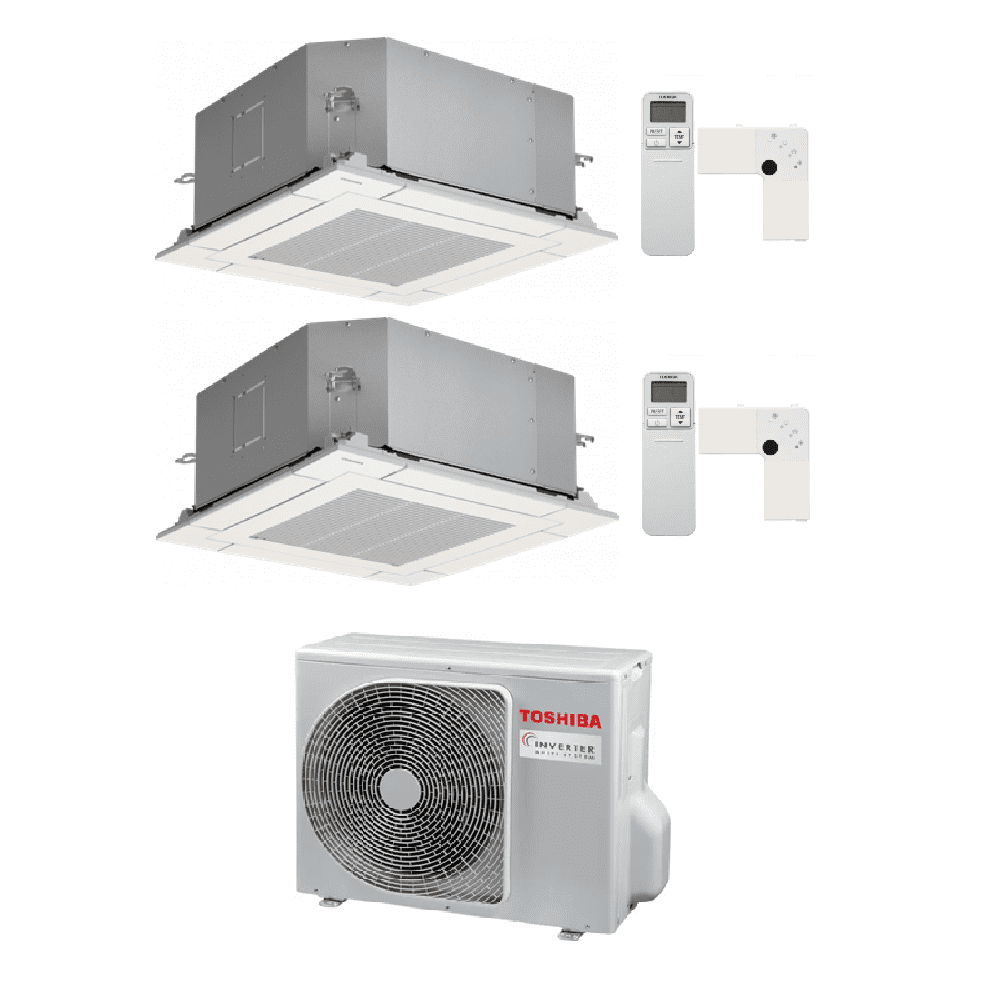

This Kit Includes: • Toshiba Outdoor Unit RAS-2M18G3AVG-E – 5.2kW Cooling / 6.8kW Heating • Toshiba Mini Cassette RAS-M10S4MUVG-E – 2.5kW × 1 • Toshiba Mini Cassette RAS-M16S4MUVG-E – 4.6kW × 1 • Toshiba Fascia Panel RBC-UM21P-E × 2 • Toshiba Remote Controller RBC-AXU31UMP-E × 2 Premium Dual-Zone Climate Control — High-Efficiency Multi-Split Performance with Ultra-Slim 600×600 Cassette Design This versatile dual-room system pairs the energy-efficient RAS-2M18G3AVG-E outdoor unit with a mixed-capacity set of Mini Cassette indoor units, ideal for spaces that require different heating and cooling outputs. Toshiba's advanced G3 multi-split platform uses a DC twin-rotary inverter compressor to deliver outstanding stability, quiet modulation and excellent partial-load performance—where the majority of real-world operation takes place. This ensures highly efficient temperature control across both spaces while reducing energy consumption and enhancing long-term reliability. The use of R32 refrigerant further improves

environmental performance while maintaining strong output in both cooling and heating mode. The RAS-M10S4MUVG-E and RAS-M16S4MUVG-E cassette units deliver wide, balanced air distribution through their 360° airflow design and independently controlled louvers, ensuring optimal comfort even in larger or asymmetrical rooms. Both models integrate smoothly into standard 600×600 ceiling tiles and feature an ultra-slim 12 mm fascia panel for a clean architectural finish. With a built-in 85 cm condensate lift pump, 5-speed quiet fan, self-cleaning function and washable dust filters, these indoor units are designed for practicality and longevity. Optional upgrades include WiFi control via iOS/Android, an occupancy sensor for energy-saving automation, and full compatibility with infrared, wired, and app-based remote controls. This makes the system ideal for residential, hospitality, and commercial environments requiring reliable dual-zone performance. Key Product Features: • Dual-room mixed-capacity multi-split system • Indoor units: 2.5kW ×

1 (M10) + 4.6kW × 1 (M16) • Outdoor capacity: 5.2kW cooling / 6.8kW heating • High seasonal efficiency up to A+++ • DC twin-rotary inverter for stable partial-load operation • Slim 600×600 cassette with 12 mm fascia panel • 360° airflow and four independently controlled louvers • Integrated condensate pump (85 cm lift) • Low-noise 5-speed fan • Self-cleaning and washable dust filter • Optional WiFi control & occupancy sensor • R32 refrigerant • Indoor unit dimensions: 244 × 575 × 575 mm • Panel dimensions: 620 × 620 × 12 mm • Outdoor unit dimensions: 630 × 800 × 300 mm • Compatible with wired, IR and app controllers • Ideal for mixed-zone residential or commercial applications Technical Specifications: • Outdoor Unit Model: RAS-2M18G3AVG-E – Cooling capacity: 5.2kW – Heating capacity: 6.8kW – SEER/SCOP: 8.70–4.80 (A+++/A++) – Dimensions:

630 × 800 × 300 mm – Weight: 43kg – Sound pressure: 52 / 46 dB(A) – Refrigerant: R32 / 1.21kg (extra charge 0.50kg) – Max pipe length: 20/10–15 m – Flare connections: 1/4" × 2 + 3/8" × 2 – Power supply: 220–240V~50Hz – Interconnecting cable: (3C+E) • Indoor Unit Model: RAS-M10S4MUVG-E × 1 – Cooling: 2.5kW – Heating: 3.2kW – Dimensions: 244 × 575 × 575 mm – Panel: 620 × 620 × 12 mm – Sound pressure: 29–33 dB(A) – Flare connections: 3/8" – 1/4" – Controller: RBC-AXU31UMP-E – Panel: RBC-UM21P-E • Indoor Unit Model: RAS-M16S4MUVG-E × 1 – Cooling: 4.6kW – Heating: 5.5kW – Dimensions: 244 × 575 × 575 mm – Panel: 620 × 620 × 12 mm – Sound pressure: 31–35 dB(A) – Flare connections: 1/2" – 1/4" – Controller: RBC-AXU31UMP-E – Panel: RBC-UM21P-E

Performance Table: Unit A Unit B Unit C Unit D Unit Capacity A (kW) Unit Capacity B (kW) Unit Capacity C (kW) Unit Capacity D (kW) Min Cooling (kW) Nom Cooling (kW) Max Cooling (kW) Power Input Min (W) Power Input Nom (W) Power Input Max (W) Op Current Nom (A) Op Current PdC (A) SEER Class EER 16 10 – – 3.54 2.06 1.30 – 5.60 8.20 – 240 1220 2420 5.62 3.20 4.60 5.80 A++ These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement

of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.

Key Details

• Brand / Vendor: Toshiba Air Conditioning
• Product SKU: RAS-2M18G3AVG-E-20066
• MPN / Model: RAS-2M18G3AVG-E-1-RAS-M10S4MUVG-E -1-RAS-M16S4MUVG-E
• Category: Toshiba Air Conditioning RAS Multi Room Heat Pump Inverter
• Parent Category: Toshiba Air Conditioning
• Condition: New
• Availability: InStock
