Toshiba Air Conditioning Standard Ducted RAV-GV561ATP-E RAV-HM561BTP-E 5Kw/17000Btu Heat Pump A 1Ph
Toshiba Air Conditioning Standard Ducted RAV-GV561ATP-E RAV-HM561BTP-E 5Kw/17000Btu Heat Pump A 1Ph is listed for TieDex store sale under Toshiba Air Conditioning RAV Ducted Heat Pump Inverter. The brand/vendor is Toshiba Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

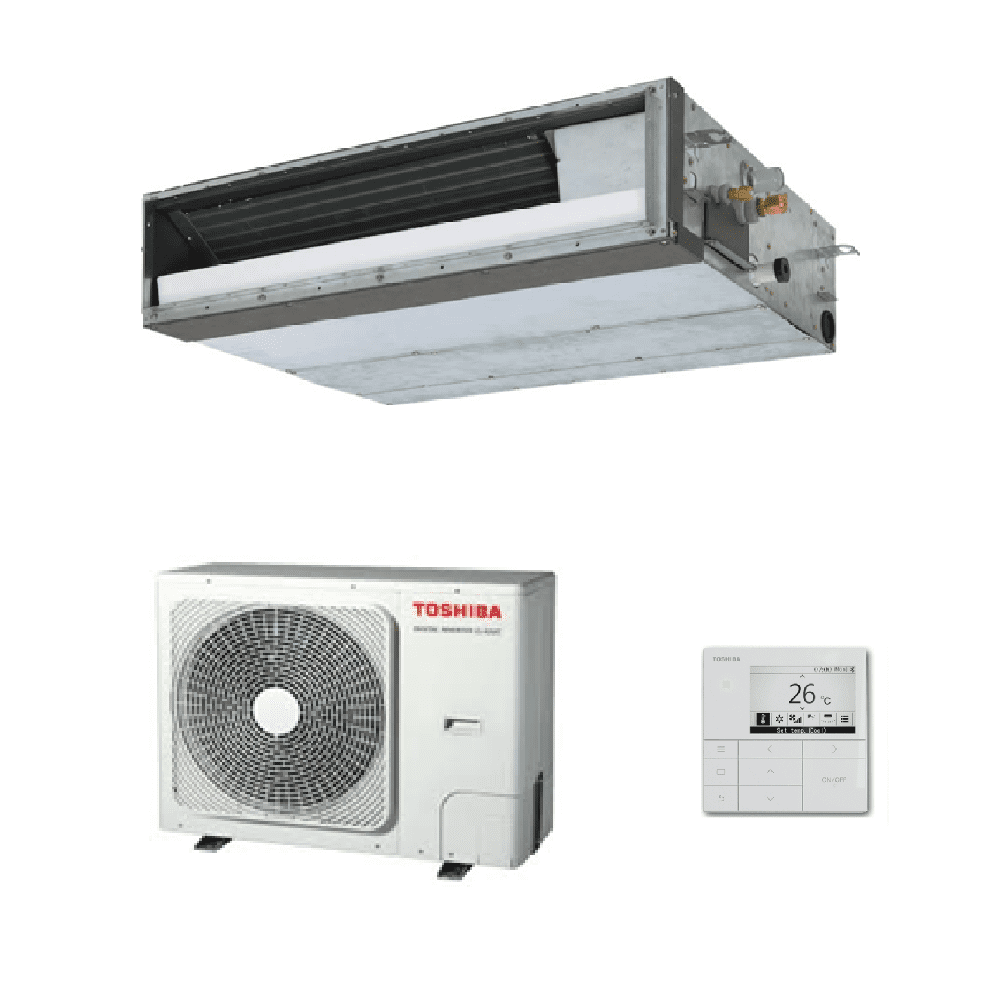

This Kit Includes: 1 × Toshiba Standard Ducted Indoor Unit RAV-HM561BTP-E Compact 275mm-high ducted chassis, quiet operation, high-efficiency DC motor, flexible installation, 5.0kW cooling & 5.3kW heating output. 1 × Toshiba Digital Inverter Outdoor Unit RAV-GV561ATP-E (Single-Phase) Heavy-duty 220-240V~50Hz/60Hz inverter system delivering 5.0kW cooling / 5.3kW heating, optimised for commercial and residential applications. 1 × Toshiba RBC-AMSU52-E Wired Controller Slimline, intuitive control interface with precise temperature and fan management. Efficient low-profile ducted air conditioning for commercial and residential spaces The Toshiba RAV-HM561BTP-E ducted system provides flexible, quiet, and discreet climate control for applications where a concealed solution is required. With a slim 275mm chassis and a highly efficient Digital Inverter outdoor unit, the system is ideal for offices, hotels, retail units, apartments, and renovation projects where ceiling void height is limited. The adjustable external static pressure (120–30 Pa) and high-performance
DC motor enable long duct runs and balanced airflow throughout the installation. Key Product Features: 5.0kW cooling / 5.3kW heating performance Slim 275mm-high ducted chassis for tight ceiling voids Up to 120Pa external static pressure for flexible ductwork design Low-noise fan motor with 222 / 175 / 133 l/s airflow Digital Inverter outdoor unit with wide operating range Quiet operation: 34–26–24 dB(A) indoor Heavy-duty cooling/heating: 2350–653 m³/h outdoor airflow DC fan motor for improved efficiency Natural drain gravity port + optional high-lift pump Flexible installation with front or bottom air return Compatible with wired and infra-red control options 20m chargeless pipe length R32 refrigerant for low environmental impact Technical Specifications: Cooling Capacity: 5.0kW Heating Capacity: 5.3kW UK Cooling Total/Sensible: 4.90 / 4.00 kW UK Heating: 3.65kW SEER / SCOP (Energy Label): 5.20-3.90 – A / A Indoor Unit Weight: 23–36kg
Outdoor Unit Weight: 30–39kg Indoor Dimensions (H×W×D): 275 × 700 × 750mm Outdoor Dimensions (H×W×D): 550 × 780 × 290mm Indoor Airflow (H-M-L): 222 – 175 – 133 l/s Outdoor Airflow (High): 2350 – 653 m³/h External Static Pressure: 120–30Pa Sound Pressure Level (H-M-L): 34 – 26 – 24 dB(A) Outdoor Sound Level: 48 / 52 dB(A) Suggested Power & Fuse Rating: 220/240-1-50 & 16A Interconnecting Cable: (3C+E) Flare Connections (Gas/Liquid): 1/2″ – 1/4″ Min/Max Pipe Length – Height: 5/30m – 20m Refrigerant – Additional Charge: R32 / 0.9kg / 20g Options: Model Description Price RBC-AX31U(W)-E Wireless Receiver Kit for 4-Way Cassette £191 RBC-AX33UYP-E Wireless Receiver Kit for 1-Way Cassette £57 RBC-AX31U-E Wireless Remote Controller Kit – Ceiling £211 RBC-AX31UMP-E Wireless Remote Controller Kit – Others (Exclude High Static Ducted) £317 RBC-AX31U1-E Wireless Receiver Kit for 4-Way Cassette £225 RBC-AX31UME-E
Wireless Receiver Kit for Compact Cassette £141 RBC-AX31U4WE-E Wireless Remote Controller Kit for 2-Way Cassette £142 RBC-AX31U3MP-E Wireless Remote Controller Kit for Compact 4-Way White £185 RBC-AX31U3MPB-E Wireless Remote Controller Kit for Compact 4-Way Black £185 RBC-AX33U4PE-E Wireless Receiver Kit for 4-Way Cassette (MMU-UP, 1HP-E & RAV-HM, 1UP-E) £185 RBC-AX41U-E Wireless Receiver Kit for 4-Way Cassette £225 RBC-AXU33UPB-E Wireless Remote Controller Kit (IR receiver + handset), Black £173 Model Description Price RBC-AS41E Simplified Remote Controller £106 RBC-ASCU11-E Compact Remote Controller £76 RBC-ASCU32YP-E Compact Remote Controller £81 RBC-AMT32E Standard Remote Controller £126 RBC-AMT32E2 Standard Remote Controller £126 RBC-AMT54E Standard Remote Controller C/W 24/7 Schedule Timer £173 RBC-AMT52E Premium Remote Controller C/W 24/7 Schedule Timer £173 RBC-AMT52U-E Premium Remote Controller C/W 24/7 Schedule Timer + Bluetooth £157 RBC-MTSC1 Mini Touch Screen Controller £272 RBC-MTSC2 Mini Touch Screen Controller C/W Schedule Timer £272
Model Description Price BMS-CT1280E Touch Screen Controller £4,189 BMS-CT2560U-E 256 Touch Screen Controller (Multi-Language) £6,143 BMS-CT5121E Touch Screen Controller £8,733 RBC-BP2 Black Pear BMS Controller £5,233 RBC-BP1 Black Pear Controller For BACnet £4,254 RBC-BPM1 Black Pear Controller For Modbus £4,254 These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Toshiba Air Conditioning
- Product SKU: RAV-GV561ATP-E RAV-HM561BTP-E
- MPN / Model: RAV-GV561ATP-E RAV-HM561BTP-E
- Category: Toshiba Air Conditioning RAV Ducted Heat Pump Inverter
- Parent Category: Toshiba Air Conditioning
- Condition: New
- Availability: InStock
