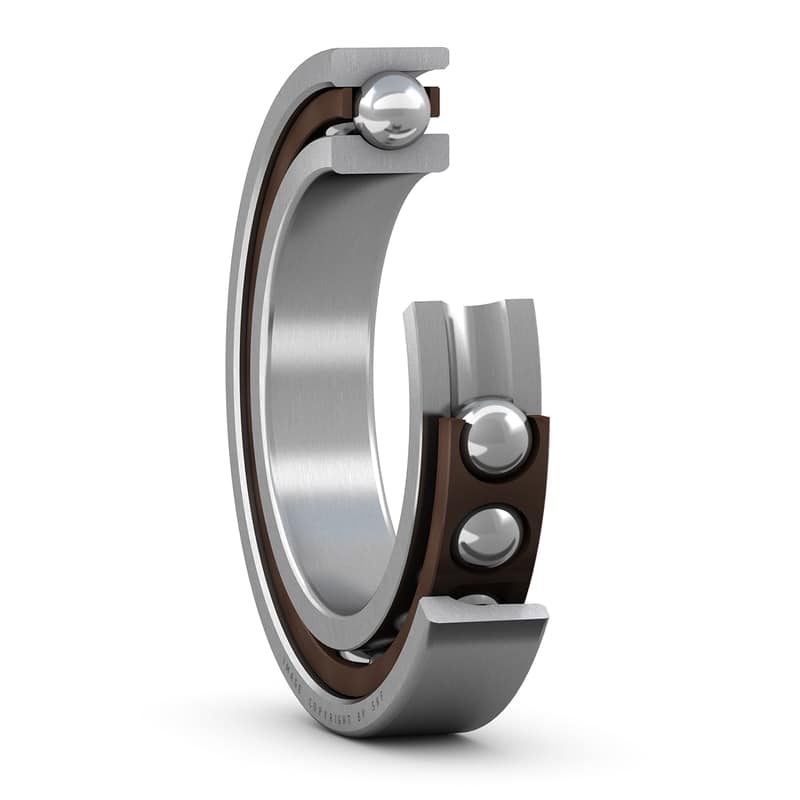

This angular contact ball bearing is a single-row precision component designed to support combined radial and axial loads in high-speed rotary equipment. It is intended for use where accurate shaft alignment and rotational performance are required, particularly in precision spindles and small electric motors within automation, electronics and mechanical systems.
Features & Benefits
- High dynamic capacity delivers 9.56 kN for sustained operational loads
Precision class P4A permits very tight running accuracy at high speed
Open-end design enables easy inspection and lubrication access
Grooved steel raceway offers consistent ball guidance under load
Steel ball elements reduce deformation for stable rotational behaviour
**Applications**
- Suitable for precision spindle assemblies in CNC machines
Ideal for small high-speed motors in automation equipment
Used with rotary encoders requiring accurate shaft support
Can be used for miniature gearboxes in control systems
Suitable for high-speed fans and blowers in electronics cooling
What limiting rotational speeds can be expected in operation?
The bearing is rated for maximum speeds up to 56,000 r/min under optimal conditions, with the higher precision variant reducing permissible speeds to 36,000 r/min where required by application constraints.
How does the bearing cope with axial loading in Compact assemblies?
The contact geometry with a 15° angle translates axial loads into the raceway, enabling axial support while maintaining radial stiffness suitable for Compact layouts.
What materials are used for rolling elements and raceways?
Both the balls and races are manufactured from steel to provide hardness and wear resistance appropriate for precision, high-speed operation.
How does the design affect maintenance intervals?
The open-end configuration allows straightforward access for re-lubrication and inspection, which can simplify routine upkeep and reduce downtime.
What static resistance is provided for stationary loads?
The static capacity is specified at 5.2 kN, indicating the allowable non-rotating load before the risk of permanent deformation increases.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
