Mitsubishi Electric Air Conditioning Heat Pump Inverter MFZ-KT25VG Floor 2.5Kw/9000Btu Install Kit
Mitsubishi Electric Air Conditioning Heat Pump Inverter MFZ-KT25VG Floor 2.5Kw/9000Btu Install Kit is listed for TieDex store sale under Mitsubishi Electric Air Conditioning MFZ Console Floor Mounted A. The brand/vendor is Mitsubishi Electric Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

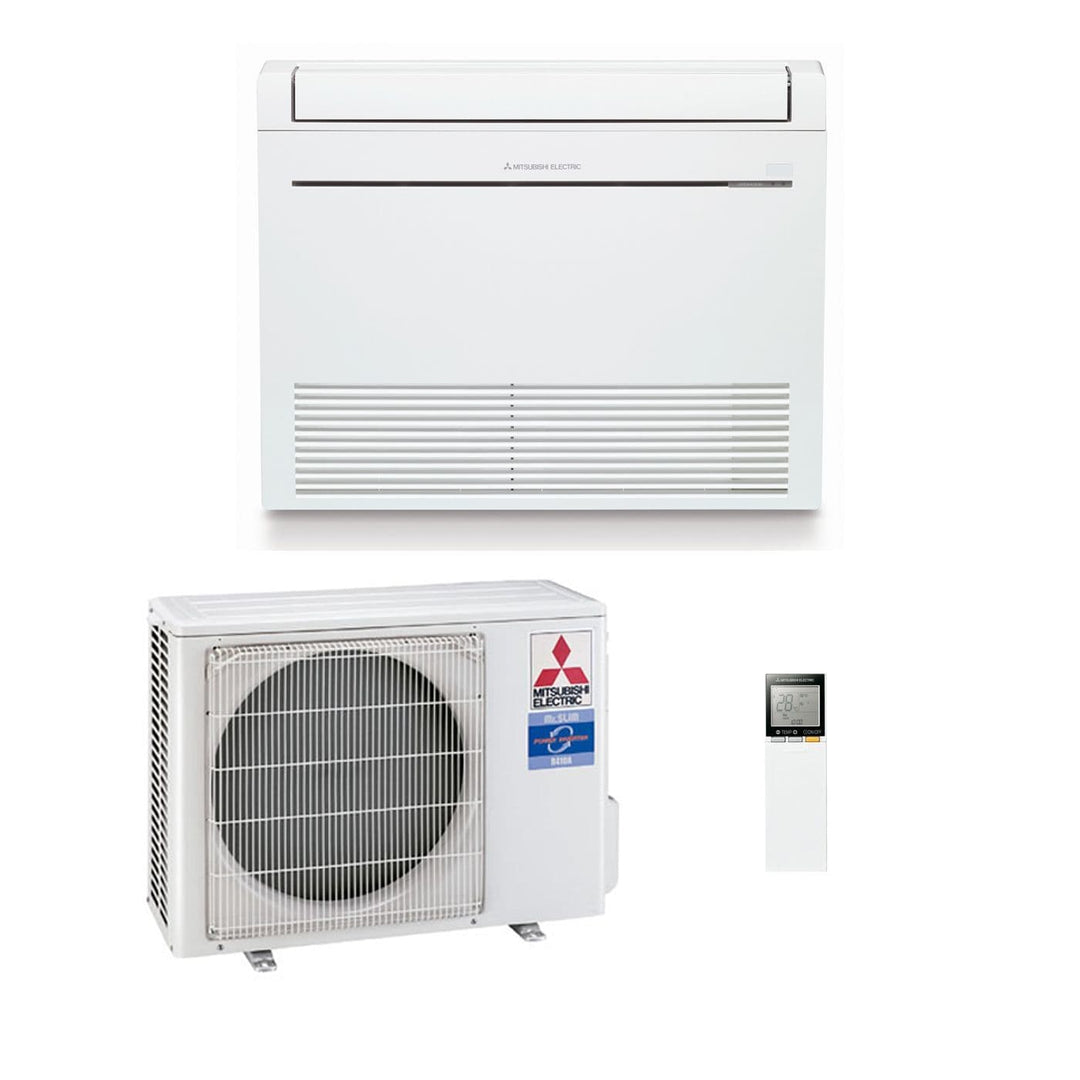

Mitsubishi Electric Air Conditioning Heat Pump Inverter MFZ-KT25VG Floor 2.5Kw/9000Btu A++ 240V~50Hz A++ Rated energy product This kit includes: 1 x MFZ-KT25VG indoor floor console unit 1 x SUZ-M25VAR2 outdoor R32 unit 1 x Remote controller 15 Meters of 1/4" & 3/8" Pipes 15 Meters of cable for interconnecting cable 15 Meters of installation for pipes 1 X Pack of cable ties 1 x Premium Wall bracket for condensing unit The Mitsubishi Electric Air Conditioning heat pump Inverter MFZ floor mounted console unit is extremely versatile and is designed for wall attached installation at floor level. The auto swing vane provides a more natural and comfortable airflow throughout the room and the lightweight, compact design makes installation easy. The Mitsubishi Electric MFZ floor mounted console gives high performance from a compact unit. At only 600mm high, it will fit under
most windows making it ideal for residential and light commercial applications. The indoor unit design provides easier cleaning. The unit is a slim-line construction 750 x 215 x 600. To aid control and energy saving, the controller has an inbuilt 7 day time-clock. Product Key Feature's: • Advanced technology control • Infra-red controller with wall mounting bracket • Super compact construction mm - 750 x 215 x 600 • Pipe runs up to 20 metres • Low noise – 19dBA on low • Back-up switch for loss of controller • Cold draft prevention on heat pump start up • Fault diagnosis • Auto re-start after power interruption • PRE-CHARGED WITH REFRIGERANT for up to 7 metres pipe length MFZ-KT - INDOOR UNITS MFZ-KT25VG CAPACITY (kW) Heating (nominal) 3.4 (1.3-4.2) Cooling (nominal) 2.5 (1.6-3.2) Heating (UK) 2.79 (1.07-3.44) Cooling (UK) 2.45
(1.57-3.14) SHF (nominal) 0.79 COP / EER (nominal) 3.74 / 4.03 SCOP / SEER (BS EN14825) 4.2 / 6.5 ErP ENERGY EFFICIENCY CLASS Heating/Cooling A+ / A++ AIRFLOW (l/s) Heating - Silent-Lo-Mi-Hi-SHi 58-67-93-122-162 Cooling - Silent-Lo-Mi-Hi-SHi 65-80-108-130-148 PIPE SIZE mm (in) Gas 9.52 (3/8”) Liquid 6.35 (1/4”) SOUND PRESSURE LEVEL (dBA) Heating/Cooling - Silent-Lo-Mi-Hi-SHi 19-23-30-37-44 / 19-24-31-37-41 SOUND POWER LEVEL (dBA) 54 DImENSIONS (mm) Width x Depth x Height 750 x 215 x 600 WEIGHT (kg) 14.5 ELECTRICAL SUPPLY Fed by Outdoor Unit FUSE RATING (BS88) – HRC (A) 6 INTERCONNECTING CABLE No. CORES 4 SUZ-M - OUTDOOR UNITS SUZ-M25VAR2 SOUND PRESSURE LEVEL (dBA) Heating/Cooling 46 / 45 SOUND POWER LEVEL (dBA) Cooling 59 WEIGHT (kg) 30 DImENSIONS (mm) Width x Depth x Height 800 x 285 x 550 ELECTRICAL SUPPLY 220-240V, 50Hz PHASE Single SYSTEm POWER INPUT (kW) Heating/Cooling
(nominal) Heating/Cooling (UK) 0.80 / 0.71 0.68 / 0.61 STARTING CURRENT (A) 3.7 SYSTEm RUNNING CURRENT (A) Heating/Cooling [MAX] 3.7 / 3.0 [6.8] FUSE RATING (BS88) – HRC (A) 10 mAINS CABLE No. CORES 3 mAX PIPE LENGTH (m) 20 mAX HEIGHT DIFFERENCE (m) 12 CHARGE REFRIGERANT (kG) / CO2 EQUIVALENT (T) - R32 (GWP 675) - 7M 0.65 / 0.44 mAX ADDITIONAL REFRIGERANT (kG) / CO2 EQUIVALENT (T) - R32 (GWP 675) 0.26 / 0.18 PDF Data: Accessories: Outdoor Units: MAC-889SG Air outlet guide for SUZ-m25/35VAR2 MAC-882SG Air outlet guide for SUZ-m50VAR2 System Control Units: PAR-CT01MAA-SB/PB: Touch screen wired remote controller (PB = Premium Finish) PAR-40MAA: Standard wired remote controller MAC-334IF: Interface for m-NET, mA remote controller (PAR-40mAA / PAR-CT01mAA), on/off input and run/fault output MAC-397IF: Interface for mA remote controller (PAR-40mAA / PAR-CT01mAA), on/off input and run or
fault output MAC-567IF: Interface for connection to Wi-Fi mELCloud service MELCOBEMS MINI: modbus and BACnet mSTP CN105 adaptor MELCORETAIL MINI: Retail control and input / output interface Installation Manual These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Mitsubishi Electric Air Conditioning
- Product SKU: MFZ-KT25VG inst
- MPN / Model: MFZ-KT25VG inst
- Category: Mitsubishi Electric Air Conditioning MFZ Console Floor Mounted A
- Parent Category: Mitsubishi Electric Air Conditioning
- Condition: New
- Availability: InStock
- TieDex UK
