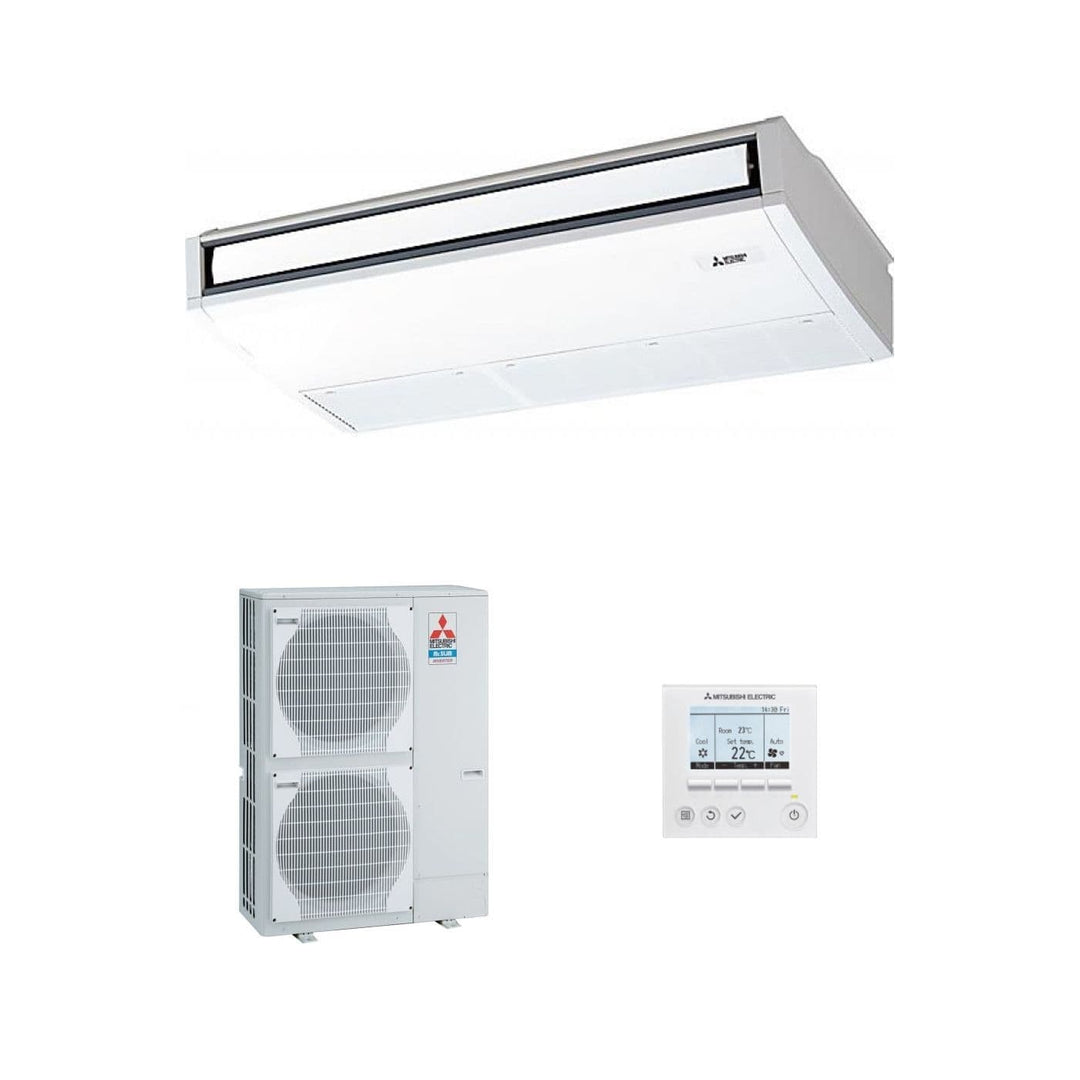

Mitsubishi Electric Air Conditioning PCA-M140KA Ceiling Mounted Inverter Heat Pump 14Kw/48000Btu R32 A++ 240V~50Hz
Mitsubishi Electric Air Conditioning PCA-M140KA Ceiling Mounted Inverter Heat Pump 14Kw/48000Btu R32 A++ 240V~50Hz is listed for TieDex store sale under Mitsubishi Electric Air Conditioning Mr Slim PCA Ceiling Suspended Inverter Heat Pump A+, A++. The brand/vendor is Mitsubishi Electric Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
A++ Rated energy product The new R32 PCA Ceiling Suspended indoor units have a stylish rounded side panels, and a slimmer profile only 230mm on smaller models. The Mitsubishi Electric air conditioning PCA units are suitable for areas which do not have suspended ceilings, and can be installed adjacent to a side wall, allowing the pipe connections and electrical wiring are concealed. The Mitsubishi PCA Series split systems are ideal for commercial application such offices, shops, meeting rooms, restaurants, hotels, clubs, gyms, and open plan areas. The internal heat exchange uses slit-fins and inner grooved tubing for maximum efficiency in heating and cooling, whilst maintaining lower sound levels. The Mitsubishi Electric air conditioning inverter PCA range has now been extended to include new small capacity system starting at 5kW / 17000Btu, and a high capacity system 14kW at the top
end. (figures stated are for cooling/heating performance). The advanced 7-Day Programmable Timer is now included as standard controls specification and 24Hr control. Mitsubishi Electric air conditioning and heat pump high performance power inverter cassette series split systems designed for residential and commercial application such as offices, shops, meeting rooms, restaurants, hotels, clubs, gyms, and open plan areas. The units have a extended pipe run capability of up to 50 meters making them ideal for high-rise buildings. The Mitsubishi Electric air conditioning inverter air conditioning system's sCoP (Seasonal Coefficient of Performance) is up to 4 on some models. This means the system can deliver 4 kW of heating, whilst consuming only 1.0kW of electrical power. This has been achieved by combining advanced Mitsubishi Electric air conditioning inverter technology with R32 refrigerant. The cassette design has improved air flow-pattern through the unit,
and the new design of the high performance indoor heat exchanger, have resulted in a pressure loss reduction, allowing the fan design to be optimised for significantly lower sound Db levels. The air discharge louver has been modified to minimise air smudging on the ceiling adjacent to the air outlets. Quiet Operation The indoor unit has a quiet operational noise of 27dB in quiet mode to offer you peace and quiet for the bedroom or office. In addition, the outdoor units have drastically reduced vibration and noise thanks to a super quiet fan and motor and an innovative anti noise mechanism. Heating / cooling and dehumidification This unit heats, cools and dehumidifies. Healthy De humidification Dehumidification mode reduces uncomfortable humidity from the room without over cooling. Auto Changeover The air conditioner will switch automatically from cooling to heating modes depending
on the set temperature. Optimized Cooling & Heating Air Flow The air vanes will be adjusted according to the mode of operation. In heating mode air will be distributed at a lower angle due to hot air rising. Product Key Feature's: • Weekly Program • Auto Changeover • Low Standby Power • Auto Restart • Central Controller • Easy-to-Clean Air Filter • Two Thermistor Control • Optimal Air Distribution • Quiet Operation • Healthy Dehumidification • Hot Start • 24-Hour ON/OFF Setting Timer • 7-Day Programmable Timer - now included in standard controls specification and with the option to use the MELCloud WiFi controller. Indoor Unit: PCA-M - INDOOR UNITS PCA-M140KA CAPACITY (kW) Heating (nominal) 16.0 (5.7-18.0) Cooling (nominal) 13.4 (6.2-15.0) Heating (UK) 13.6 (4.85-15.3) Cooling (UK) 12.9 (5.7-13.8) SHF (nominal) 0.72 COP / EER (nominal) 3.61 / 3.40 SCOP
/ SEER (BS EN14825) 4.4 / 6.1 ERP ENERGY EFFICIENCY CLASS Heating/Cooling A+/ A++ AIRFLOW (l/s) Lo-Mi1-Mi2-Hi 400-433-483-533 PIPE SIZE MM (in) Gas/Liquid 15.88 (5/8”) / 9.52 (3/8”) SOUND PRESSURE LEVEL (dBA) Lo-Mi1-Mi2-Hi 41-43-45-48 SOUND POWER LEVEL (dBA) 68 DIMENSIONS (mm) Width x Depth x Height 1600 x 680 x 230 WEIGHT (kg) 40 ELECTRICAL SUPPLY Fed by Outdoor Unit FUSE RATING (BS88) - HRC (A) 6 INTERCONNECTING CABLE No. Cores 4 WIRED REMOTE CONTROLLER REFERENCE PAR-33MAA WIRELESS REMOTE CONTROLLER REFERENCE PAR-SL94B Outdoor Unit: PUZ-ZM - OUTDOOR UNITS PUZ-ZM140VKA 1 phase PUZ-ZM140YKA/3 3 phase SOUND PRESSURE LEVEL (dBA) Heating/Cooling 52 / 50 52 / 50 SOUND POWER LEVEL (dBA) Cooling 70 70 WEIGHT (kg) 118 131 DIMENSIONS (mm) Width x Depth x Height 1050 x 330 + 40 x 1338 1050 x 330 + 40 x 1338 ELECTRICAL SUPPLY 220-240v,
50Hz 380-415v, 50Hz PHASE Single Three SYSTEM POWER INPUT (kW) Heating/Cooling (nominal) 4.312 / 3.772 4.312 / 3.772 Heating/Cooling (UK) 3.83 / 3.15 3.83 / 3.15 STARTING CURRENT (A) 13.0 6.0 SYSTEM RUNNING CURRENT (A) Heating/Cooling [MAX] 18.41 / 15.88 [28.7] 6.23 / 5.37 [13.7] FUSE RATING (BS88) - HRC (A) 40 16 MAINS CABLE NO. CORES 3 5 MAX PIPE LENGTH (m) 100 100 MAX HEIGHT DIFFERENCE (m) 30 30 CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t) R32 (GWP 675) - 30m 4.00 / 2.70 4.00 / 2.70 MAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT R32 (GWP 675) 2.80 / 1.89 2.80 / 1.89 PDF DATA: These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation
service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Mitsubishi Electric Air Conditioning
- Product SKU: PUZ-ZM140YKA/3 + PCA-M140KA
- MPN / Model: PUZ-ZM140YKA/3 + PCA-M140KA
- Category: Mitsubishi Electric Air Conditioning Mr Slim PCA Ceiling Suspended Inverter Heat Pump A+, A++
- Parent Category: Mitsubishi Electric Air Conditioning
- Condition: New
- Availability: InStock
