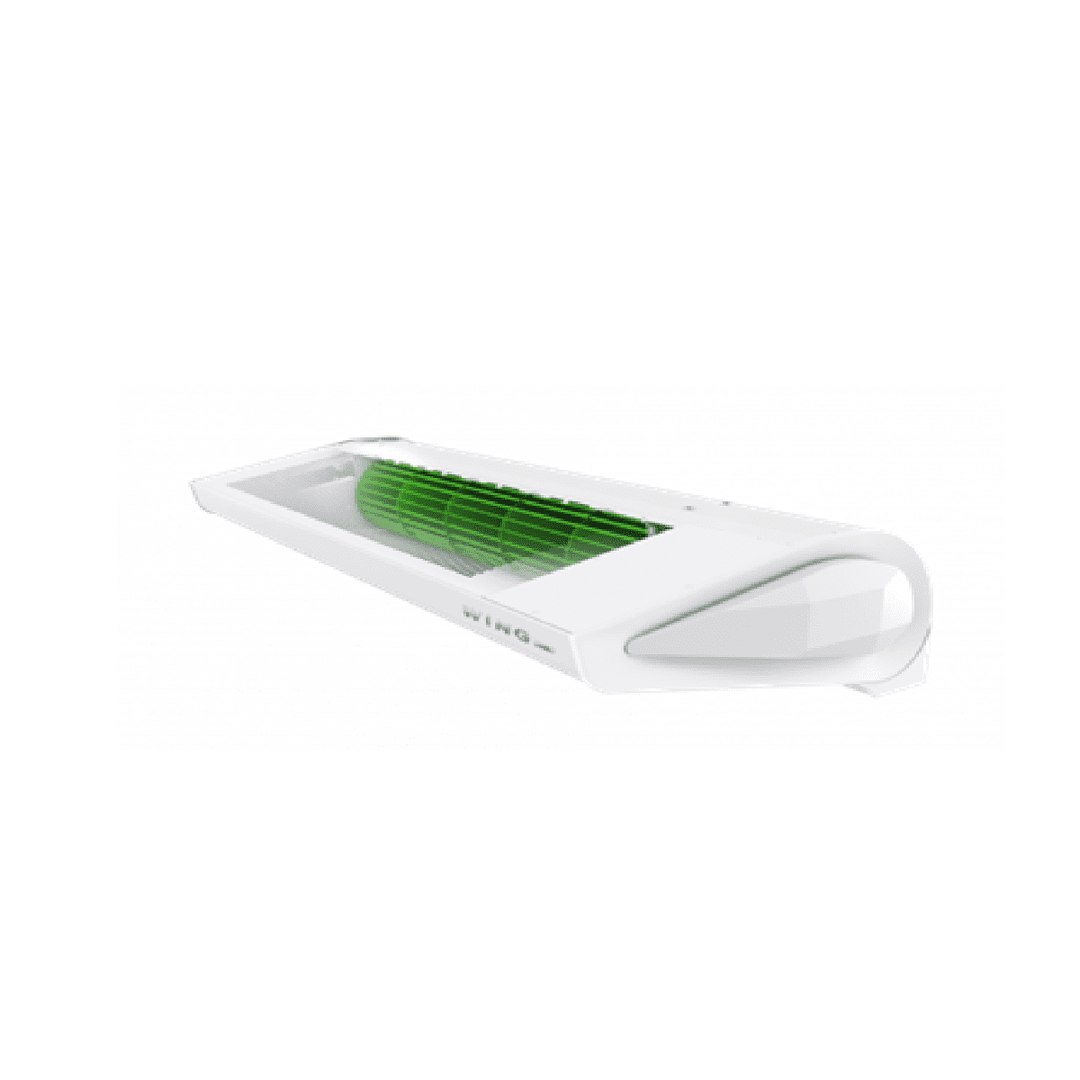

Powrmatic VTS WING-C150W-EC Ambient EC Motor Air Curtain 1500mm White 3200m³/hr 220-240V~50Hz
Powrmatic VTS WING-C150W-EC Ambient EC Motor Air Curtain 1500mm White 3200m³/hr 220-240V~50Hz is listed for TieDex store sale under Standard Electric Air Curtains. The brand/vendor is Powrmatic. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
This Kit Includes: 1 × Powrmatic VTS WING-C150W-EC Ambient Air Curtain 1 × Integrated EC motor fan assembly 1 × Factory-finished white casing (RAL 9016) 1 × Mounting bracket set Energy Efficient Ambient Air Curtain for Medium Width Commercial Doorways The Powrmatic VTS WING-C150W-EC is a high-efficiency ambient air curtain engineered to provide reliable environmental separation across medium-width commercial and industrial door openings. Featuring advanced EC motor technology, this model delivers adjustable airflow with significantly lower electrical consumption compared to conventional AC motor units. With a maximum airflow of 3,200 m³/hr, the WING-C150W-EC creates a strong and stable air barrier to reduce heat loss, limit cold air ingress and minimise the entry of dust and airborne contaminants when doors are opened. Designed for horizontal installation above entrances up to approximately 4 metres high, the 1500mm format provides greater coverage than
the 1000mm model while maintaining energy-efficient performance. Finished in clean RAL 9016 white, this unit integrates seamlessly into retail, hospitality and modern commercial environments where appearance is as important as performance. Key Product Features: • Ambient (unheated) air curtain • High-efficiency EC motor technology • Maximum airflow: 3,200 m³/hr • Suitable for door heights up to approx. 4 metres • 1500mm unit length • White finish (RAL 9016) • Adjustable fan speed control • Low noise operation • 220-240V~50Hz single-phase supply • Designed for commercial and light industrial applications Technical Specifications: Model: WING-C150W-EC Product Type: Ambient EC motor air curtain Length: 1500 mm Finish: White (RAL 9016) Airflow Range: Low: 1,500 m³/hr Medium: Approx. 2,200 m³/hr High: 3,200 m³/hr Electrical Supply: 220-240V~50Hz 1Ph Motor Power: 0.3 kW Rated Current: 1.3 A Maximum Recommended Door Height: Up to 4 m Noise
Level: Approx. 54–63 dB(A) Weight: 20.4 kg Applications: • Retail shop entrances • Supermarkets • Showrooms • Hospitality venues • Commercial buildings • Light industrial premises Accessories: Part Number Description Price (£) WING-HMI Programmable Automatic Variable Speed Potentiometer 182 WING-HMI-WIFI WiFi Programmable Automatic Variable Speed Potentiometer 209 WING-100G-WB Mounting Bracket Set (2) to suit Wing 100: Grey 50 WING-100W-WB Mounting Bracket Set (2) to suit Wing 100: White 50 WING-150/200G-WB Mounting Bracket Set (3) to suit Wing 150/200: Grey 69 WING-150/200W-WB Mounting Bracket Set (3) to suit Wing 150/200: White 69 WING-DS Door Sensor (Reed Switch) to suit Wing/Wing Pro 50 WX-VA Valve with Actuator 138 WX-FC Set of ¾" Flexible Connection Hoses 62 HMI-SMB HMI Surface Mounting Box 35
Key Details
- Brand / Vendor: Powrmatic
- Product SKU: WING-C150W-EC
- MPN / Model: WING-C150W-EC
- Category: Standard Electric Air Curtains
- Parent Category: Air Curtains
- Condition: New
- Availability: InStock
