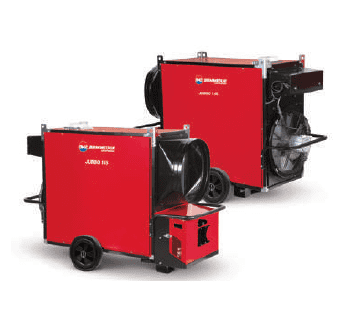

Arcotherm JUMBO 145M Industrial Heater Without Burner 144kW Axial Fan 230V~50Hz
Arcotherm JUMBO 145M Industrial Heater Without Burner 144kW Axial Fan 230V~50Hz is listed for TieDex store sale under Oil Fired Space Heaters Without Flue. The brand/vendor is Arcotherm. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
The Arcotherm JUMBO 145M is a high-capacity indirect combustion mobile warm air heater engineered for use in construction sites, warehouses, agricultural facilities, and event spaces. Supplied without a burner, this model gives you flexibility to choose between diesel, natural gas, or LPG burner options. Designed to deliver consistent high airflow and exceptional thermal efficiency, the JUMBO 145M is robust, service-friendly, and IP-rated for use in harsh working environments. Why Choose the Arcotherm JUMBO 145M? With a thermal efficiency of 92.83% and airflow up to 12,000 m³/h, the JUMBO 145M offers exceptional performance with low energy wastage. A 7-blade axial fan keeps noise to a minimum while maintaining high static pressure. Modular panel design, metric fittings, and protected service access make installation and maintenance quick and simple. The unit includes advanced rear and service front electrical panels, IP55/IP65/IP68 component protections, and
full compatibility with Arcotherm ducting and flue systems. Key Product Features: Supplied without burner – compatible with diesel, gas, or LPG burner systems Rated heat power: 144.72kW (497,821 BTU/h) Output heat power: 134.87kW (463,969 BTU/h) Thermal efficiency: 92.83% Axial fan airflow capacity: 12,000 m³/h Static pressure: 200 Pa Temperature rise at 20°C: 46°C Effective heat range: 46m Fuel compatibility (with burner): Oil (diesel) consumption: 11.45 kg/h Natural gas (G20): 13.664 m³/h LPG (G31): 5.436–10.53 m³/h Power supply: 230V ~ 50Hz Electrical consumption: 1,570W Chimney/flue diameter: 200mm Air outlet duct options: 1-way: 600 ± 25mm 2-way: 400 ± 15mm 4-way: 350 ± 15mm Rear Electrical Panel (IP65): 4-position switch: Stop / Ventilation / Heating / Heating + Continuous Ventilation Thermoregulator for fan & burner, runtime display, outlet air temp Password-protected setting adjustment Service Front Electrical Panel: Manual-reset safety thermostat Pre-heat filter
socket Thermostat/humidistat/timer ports Indicator lights for burner, overheat, and power Durability and Safety: IP55 ventilator, IP65 control panel, IP68 component connectors Removable interior panels for cleaning and inspection Cross-pleated panel reinforcements Metric screw system with captive inserts Supplied with 350mm mounting chain Operating temperature range: -30°C to +60°C Dimensions & Weight (Machine Only): Length (A): 1905mm Width (B): 894mm Height (C): 1354mm Net Weight: 254kg Packaging Dimensions: Length (X): 1870mm Width (Y): 780mm Height (H): 1330mm Gross Weight: 274kg Disclaimer: Image is for illustrative purposes.
Key Details
- Brand / Vendor: Arcotherm
- Product SKU: Jumbo 145M
- MPN / Model: Jumbo 145M
- Category: Oil Fired Space Heaters Without Flue
- Parent Category: Oil Fired Space Heater
- Condition: New
- Availability: InStock
- TieDex UK
