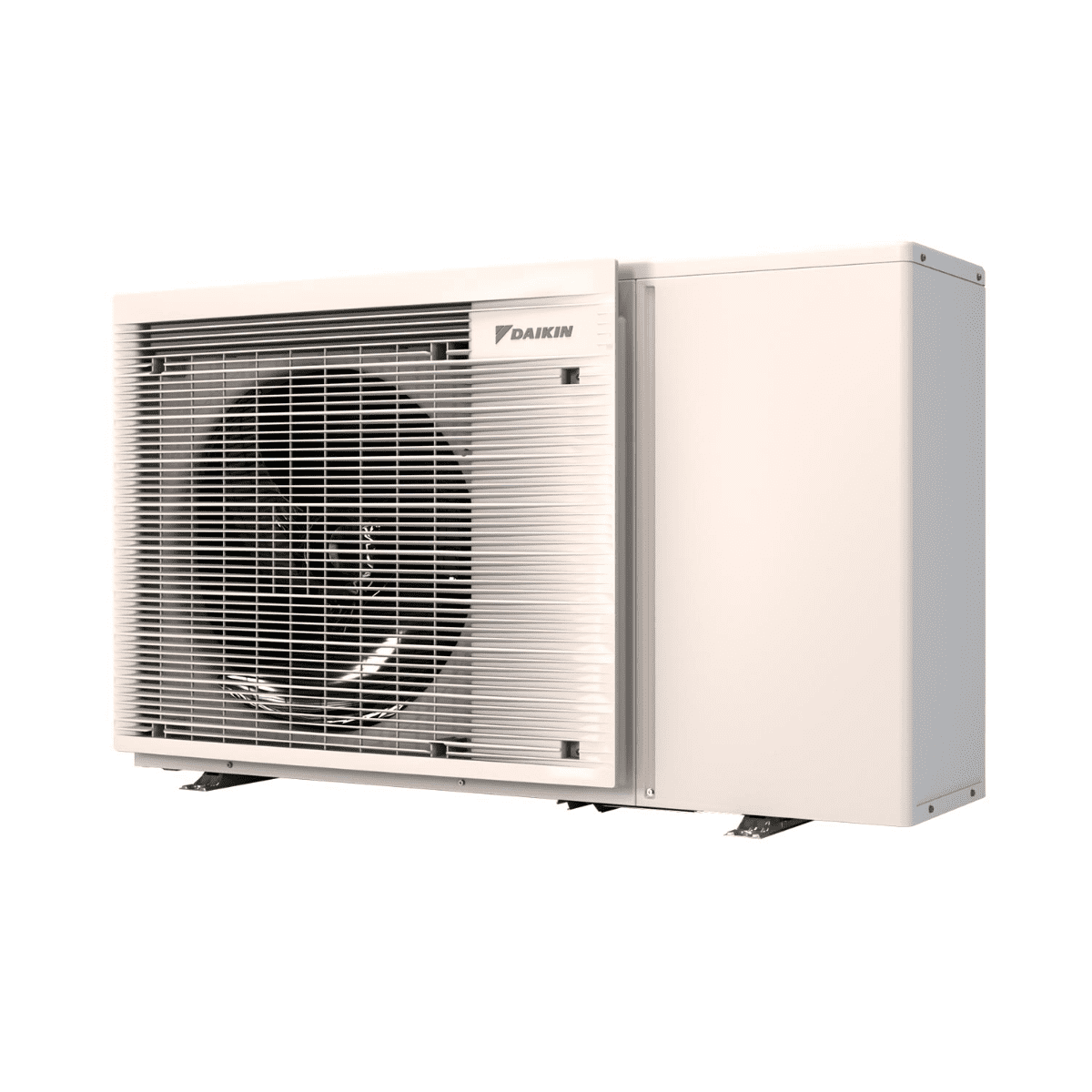

Daikin Air Conditioning Daikin EBLA04EV3 Altherma 3 Low Temperature Monobloc Plus Cooling R32 4.60Kw A+++ 220-240V
Daikin Air Conditioning Daikin EBLA04EV3 Altherma 3 Low Temperature Monobloc Plus Cooling R32 4.60Kw A+++ 220-240V is listed for TieDex store sale under Daikin Air Conditioning Altherma Air Source Heat Pump. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
Introducing the Daikin EBLA04EV3 Altherma 3 Low Temperature Monobloc, a high-efficiency air-to-water heat pump designed for heating and cooling applications. This unit boasts an impressive A+++ energy rating and operates on 220-240V, ensuring optimal performance and energy savings. The Monobloc all-in-one concept includes all necessary hydraulic parts, making installation straightforward and hassle-free. Additionally, a separate back-up heater kit is available, enhancing the system's reliability and versatility. The Daikin Altherma 3 Low Capacity Monobloc is equipped with the most intuitive control solutions, featuring the Onecta app with voice control capabilities. This allows users to manage their heating system from home or remotely via a smartphone. Voice commands can be used for seamless control, with integrations available for Google Assistant and Amazon Alexa. Key functions include scheduling, holiday and boost modes, controlling multiple units, and monitoring energy consumption. For those who prefer
a more traditional approach, the Madoka wired room thermostat offers a sleek and elegant design with intuitive touch button controls. Available in white, black, and silver-grey, this compact unit (85 x 85 mm) can seamlessly match any interior. The user-friendly interface inspired by the award-winning design of Daikin Altherma 3 indoor units ensures easy operation. The high-contrast color screen provides practical and visually appealing feedback for both installers and service engineers. The Daikin Altherma 3 Monobloc is cloud-ready with WLAN capabilities, allowing for quick and easy configuration. After logging in, users can set up the unit in less than 10 steps and run test cycles to ensure it is ready for use. The new interface, featuring a few buttons and two navigational knobs, makes it simple to set room temperatures and control the units. The interface's intuitive design, combined with
its small dimensions (136 x 160 x 37 mm), ensures a discreet yet effective control solution. This Monobloc unit is versatile and compatible with various heating and cooling emitters, including fan coils, underfloor heating, and heat pump convectors. It can also be combined with stainless steel tanks, Daikin R32 Pre Plumbed Cylinders, thermal stores, and panels to provide domestic hot water efficiently. The Daikin EDLA04EV3 Altherma 3 Low Temperature Monobloc is an all-in-one solution that combines advanced technology, user-friendly controls, and exceptional energy efficiency to meet diverse heating needs. Key Product Features: For Heating and cooling applications Energy efficient heating only system based on air to water heat pump technology Monobloc all-in-one concept including hydraulic parts Separate back-up heater kit Possible to combine with domestic hot water WLAN cartridge included Specification: COP 5.10 , 3.65 Voltage 220 V Cooling capacity
Nom. 4.86 , 4.52 kW Dimensions Unit Depth 362 mm Height 770 mm Width 1250 mm EER @ 5.91 , 3.32 Heating capacity Nom. 4.30 , 4.60 kW Operation range Cooling Ambient Min. 43 °CDB Water side Min. 22 °C Domestic hot water Ambient Min. 35 °CDB Water side Min. 55 °C Heating Water side Min. 65 °C Power input Cooling Nom. 0.820 , 1.36 kW Heating Nom. 0.840 , 1.26 kW Power supply Frequency Hz 50 Name V3 Phase 1~ Voltage V 230 +/-10% Refrigerant Charge 1.35 kg 0.91 tCO2Eq GWP 675 Type R-32 Sound power level Cooling Nom. 58 dBA Sound pressure level Cooling Nom. 44 dBA Space heating Average climate water outlet 35°C General SCOP @ 4.54 Seasonal space heating eff. class A+++ Average climate water outlet 55°C General SCOP @ 3.29 Seasonal space heating eff. class
A++ Weight Unit 88 kg
Key Details
- Brand / Vendor: Daikin Air Conditioning
- Product SKU: EBLA04EV3
- MPN / Model: EBLA04EV3
- Category: Daikin Air Conditioning Altherma Air Source Heat Pump
- Parent Category: Daikin Air Conditioning
- Condition: New
- Availability: InStock
