Daikin Air Conditioning Daikin EBLQ011CV1 Air to Water Low Temperature Monoblock Heat Pump 11Kw/37000Btu A++ 415V~50Hz
Daikin Air Conditioning Daikin EBLQ011CV1 Air to Water Low Temperature Monoblock Heat Pump 11Kw/37000Btu A++ 415V~50Hz is listed for TieDex store sale under Daikin Air Conditioning Altherma Air Source Heat Pump. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

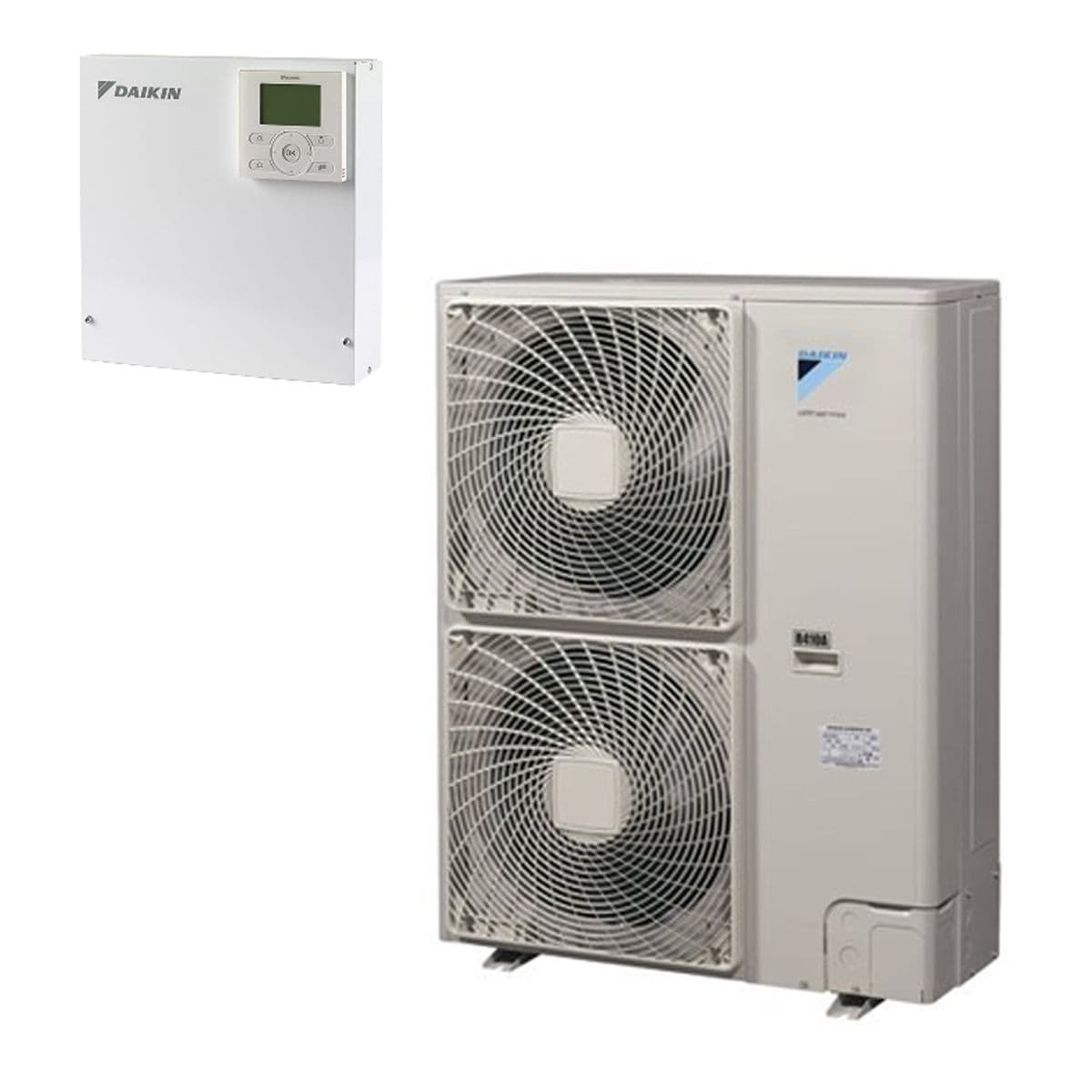

Daikin EBLQ011CV1 Air to Water Low Temperature Monoblock Heat Pump 11Kw/37000Btu A+ 415V~50Hz HEATING AND COOLING This Kit Includes: 1 X EDLB011CV1 HEATING AND COOLING 415V~50Hz Outdoor heat pump 1 x EKCB07CV3 Wiring Centre 1 x EKRUCBL2 - User interface This unit is used for both heating and cooling applications. The unit can be combined with Daikin fan coil units, floor heating applications, low temperature radiators, domestic hot water tank (option) and Daikin solar kit (option). A remote controller is standard supplied with the unit to control your installation. Heating/cooling units and heating only units The unit range consists of two main versions: a heating/cooling (EB) version and a heating only (ED) version. The units are delivered with an integrated backup heater for additional heating capacity during low outdoor temperatures. The backup heater also serves as a backup in case
of malfunctioning of the unit and for freeze protection of the outside water piping during winter time. The backup heater factory set capacity is 6 kW, however, depending on the installation, the installer can limit the backup heater capacity to 3 kW/2 kW. The backup heater capacity decision is a mode based on the equilibrium temperature, An optional domestic hot water tank can be connected to the unit. The domestic hot water tank is available in 2 types: tank with built-in electrical booster heater (EKHW*) in 3 different sizes: 150, 200 and 300 litre, tank without electrical booster heater (EKHTS) in 2 different sizes: 200 and 260 litre. An optional room thermostat EKRTW, EKRTWA, or EKRTR can be connected to the unit. Refer to the installation manual of the room thermostat for more information. To obtain more information concerning these
option kits, please refer to dedicated installation manuals of the kits. Key Product Features: Outdoor Unit 3 Phase EBLQ011CW1 Trade Unit Price £3,467.00 User Interface (must be ordered separately) EKRUCBL2 Description 11kW, 3-phase, 400V Function Reversible Dimensions Height x Width x Depth mm 1348 x 1160 x 380 Weight kg 154 Nominal capacity Heating (a/b) kW 11.2 / 11.0 Cooling kW 12.4 Nominal input Heating (a/b) kW 2.43 / 3.10 COP Heating (a/b) 4.61 / 3.55 Seasonal space heating efficiency Space heating (Average climate) 35°C Class A++ Efficiency 156 SCOP 3.98 Space heating (Average climate) 55°C Class A+ Efficiency 120 SCOP 3.09 EER Cooling 2.63 Operation range Heating* °C -10 ~ +35 Cooling °C 10 ~ 46 Hot water °C -25 ~ +35 Sound pressure / power level Heating dBA 51 / 64 Cooling dBA 50 / 64 Refrigerant charge
(factory) R-410A kg 3.40 Power supply 3-phase / 400V / 50Hz Recommended fuses Outdoor unit A 20 Pump No. of speeds Inverter controller Expansion vessel volume litres 10 Water connections (diameter) inches 1” (male) Max piping length OU to cylinder m 10 Minimum water volume without back-up heater litres 80 Minimum water volume with back-up heater litres 20 Nominal capacity and nominal input tested according to EN 14511 at the following conditions: Heating a: Ambient air temperature 7°C and leaving water temperature 35°C (A7 W35) Heating b: Ambient air temperature 7°C and leaving water temperature 45°C (A7 W45) Cooling: Ambient air temperature 35°C and leaving water temperature 7°C (A35 W7) Sound pressure level measured at 1m from the unit Notes: i) User interface (EKRUCBL2) must be ordered with every EDLQ011-016 BACK UP HEATER KIT (RECOMMENDED) EKMBUHC3V3 EKMBUHC9W1** Description Back up
heater kit (3kW) Back up heater kit (3/6/9kW) Trade Unit Price £517.00 £576.00 Nominal rating kW 3 3-6 Dimensions Depth mm 210 Width mm 250 Height mm 560 Power supply 1-phase / 230V / 50Hz 3-phase / 400V / 50Hz fuses 3 kW 1ph 230V Amps 16 6 kW 1ph 230V Amps - 32*** 6kW 3ph 400V Amps - 10*** 9kW 3ph 400V Amps - 16*** Water connections Diameter inch 1” (male) Accessories: Accessory Ref Description Trade Price EKRUCBL2 User interface £100.00 EKRUCBS Optional simplified room thermostat £94.00 EKPCCAB4 PC cable – to upload field settings from PC to unit or spare controller £215.00 EKRSC1 Optional remote outdoor temperature sensor (see note) £71.00 KRCS01-1 Optional remote indoor temperature sensor (see note) £54.00 EK2CB07CV3 Optional Wiring centre - for remote alarm monitoring, run and fault indication and bivalent operation £252.00 K.FF600ASN
Pair of flexi feet to mount the outdoor unit £55.00 K.CWBXL Wall mounting brackets for outdoor units (250kg, 660mm long) £81.00 K.DT2 Condensate drip tray for use with K.CWBXL £68.00 K.HOSE750 Pair of flexible hoses (Length 750mm, 19mm tough PVC coat insulation, 1" FBSP, 28mm compression) £80.00 K.HOSE750EL Pair of flexible hoses with elbow (Length 750mm, 19mm tough PVC coat insulation, 1" FBSP, 28mm compression) £114.00 K.CG750S Outdoor unit guard £326.00 K.FERNOXTF1 Fernox magnetic filter 1” £110.00 K.FERNOXTF1FL Fernox magnetic filter 1” and F1 inhibitor fluid (500ml) £129.00 BRP069A62 Smart Comfort Controller £143.00 K.ELECMETV Electric meter for domestic RHI - Single-phase (Metering for performance compliant) MID Class A electric meter to measure the electricity consumption of the Daikin Altherma heat pump £129.00 K.ELECMETW Electric meter for domestic RHI - Three-phase (Metering for performance compliant) MID Class A electric meter to
measure the electricity consumption of the Daikin Altherma heat pump £230.00 EKUMBPART 3rd party tank connection kit - Dry pocket sensor £210.00 PDF Data:
Key Details
- Brand / Vendor: Daikin Air Conditioning
- Product SKU: EBLQ011CW1
- MPN / Model: EBLQ011CW1
- Category: Daikin Air Conditioning Altherma Air Source Heat Pump
- Parent Category: Daikin Air Conditioning
- Condition: New
- Availability: InStock
