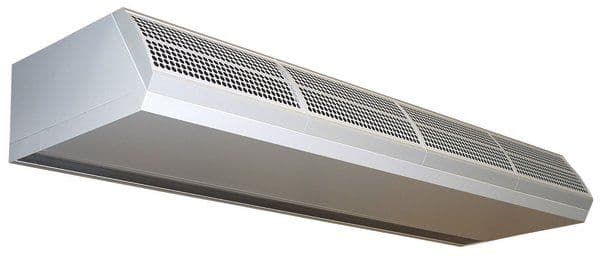

Daikin Air Conditioning Daikin Heat Pump Air Curtain CYQS250DK140*BN/*SN 14kW / 48000Btu 230V~50hZ
Daikin Air Conditioning Daikin Heat Pump Air Curtain CYQS250DK140*BN/*SN 14kW / 48000Btu 230V~50hZ is listed for TieDex store sale under Daikin Air Curtains. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
Daikin Heat Pump Air Curtain CYQS250DK140*BN/*SN 14kW / 48000Btu 230V~50hZ Air Curtains for light commercial applications. Daikin standard air curtains are the ideal solution for retailers and consultants to combat the issue of climate seperatiom across their outlet or office doorway. Using a combination of rectifier technology, optimised air velocity and temperature control, they deliver greater comfort to staff and customers alike, all year roumd, in all weathers. In conjunction with Biddle, Daikin now offer the best air curtain to the market, coupling the benefits of the Biddle air curtain technology with the benefits of the Daikin heat pump inverter technology. Technical Specifications Technical Specifications CYQS250DK140*BN/*SN Heating capacity Installation level B speed 2 kW 12.7 speed 3 kW 16.2 Delta T inlet = room temperature speed 2 K 18 speed 3 K 16 Power Input (50Hz) Fan only kW 0.58
Heating kW 0.58 Maximum door width m 2.5 Maximum door height Favorable conditions m 2.3 Normal conditions m 2.15 Unfavorable conditions m 2 Dimensions Height Unit F mm 270 Unit C mm 270 Unit R mm 270 Width Unit F mm 2,500 Unit C mm 2,500 Unit R mm 2,548 Depth Unit F mm 590 Unit C mm 821 Unit R mm 561 Packed unit Height mm 760 Width mm 2,630 Depth mm 680 Weight Unit F kg 107 Unit C kg 129 Unit R kg 137 Packed unit F kg 145 Packed unit C kg 182 Packed unit R kg 190 Casing Colour BN:RAL9010 Material Electrogalvanised sheet steel Required Ceiling Void mm 420 Fan - Air flow rate - Heating Installation level B speed 2 m³/h 2,058 speed 3 m³/h 2,910 Refrigerant Type R-410A Control Electronic expansion valve Sound
pressure level - Heating Installation level B speed 2 dBA 41 speed 3 dBA 51 Piping connections Liquid (OD) Diameter (OD) mm 9.52 Gas Diameter (OD) mm 19 Air Filter Vacuum cleanable filter G1 Required accessories Daikin wired remote control (BRC1E51A or BRC1D52) Notes Favorable conditions: covered shopping mall or revolving-door entrance. Normal conditions: little direct wind, no opposite open doors, building with ground floor only. Unfavorable conditions: location at a corner or square, multiple floors and/or open stairway. Pipe work and electrical connections are on top of the unit Sound pressure level (at 3m) Installation level B: standard setting, refer to the databook or installation manual for more information (only one installation level available) *F = Free Hnging, C = Cassette, R = Recessed. Electrical Specifications Electrical Specifications CYQS250DK140*BN/*SN Power Supply Frequency Hz 50 Voltage V 230 Voltage range
Min. V 240 Current (50Hz) Maximum fuse amps (MFA) A 16 Full load amps (FLA) A 2.10
Key Details
- Brand / Vendor: Daikin Air Conditioning
- Product SKU: CYQS250DK140
- MPN / Model: CYQS250DK140
- Category: Daikin Air Curtains
- Parent Category: Commercial Heat Pump Air Curtains
- Condition: New
- Availability: InStock
