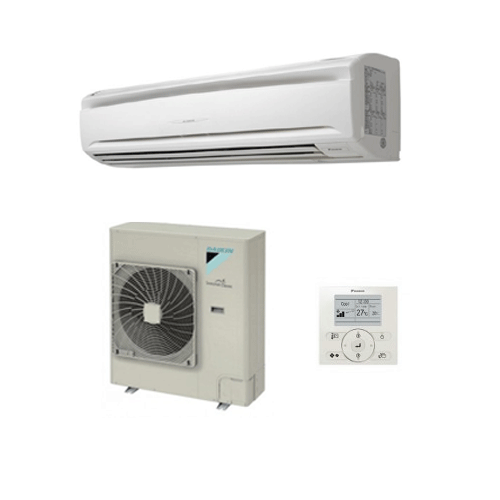

Daikin Air Conditioning FAA100A+AZAS100MV1 Wall Mounted Active Inverter Heat Pump 10Kw/36000Btu R32 A+ 240V/415V~50Hz
Daikin Air Conditioning FAA100A+AZAS100MV1 Wall Mounted Active Inverter Heat Pump 10Kw/36000Btu R32 A+ 240V/415V~50Hz is listed for TieDex store sale under Daikin Air Conditioning Wall Mounted Inverter Heat Pump FAQ. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
Now with R32 Refrigerant, A+ rated energy product Daikin air conditioning FAA R32 range of wall mounted units have a modern look and reduced size and weight, making them a discreet option for many applications. Pairing them with Seasonal classic condensers provides a system that is optimised for Efficiency. Daikin air conditioning FAA wall mounted unit's are ideal for IT and server room applications thanks to the EDP setting which allows constant cooling at low humidity levels, providing ideal conditions for computer equipment. The flat, stylish front panel blends easily within any interior décor and is easier to clean. Can easily be installed in both new and refurbishment projects The air is comfortably spread up- and downwards thanks to 5 different discharge angles that can be programmed via the remote control. Maintenance operations can be performed easily from the front
of the unit and is flexible to install as the largest casing only weighs 17kg and piping connection can be done at the bottom, left or right of the unit. Optimum comfort guaranteed with automatic air-flow volume control as this minimises the difference between room and required temperature. No action required from occupants to meet the desired temperature. Unified indoor unit for use with R-32 refrigerant. No optional adapter needed for DIII-connection, link your unit into the wider building management system Technical Data: Technical Specifications FAA100A+AZAS100MV1 Power input - 50Hz Cooling Nom. kW 0.061 Heating Nom. kW 0.061 Casing Colour Fresh White Material Resin Dimensions Unit Height/Width/ Depth mm 340/1,200/240 Packed unit Height/Width/ Depth mm 429/1,310/325 Weight Unit kg 17.0 Packed unit kg 24 Heat exchanger Fin Type Cross fin coil (Multi slit fins and Hi-XB tubes) Fan Type Cross
flow fan Quantity 1 Air flow rate Cooling High m³/min 26.0 cfm 918 Mediu m m³/min 23 cfm 812 Low m³/min 19.0 cfm 671 Heating High m³/min 26.0 cfm 918 Mediu m m³/min 23.0 cfm 812 Low m³/min 19.0 cfm 671 Fan motor Speed Steps 3 Output High W 64 Phase x Voltage V DC325 Full load amps (FLA) Cooling A 0.4 Heating A 0.4 Sound power level Cooling dBA 65 Heating dBA 65 Sound pressure level Cooling High/Medium/ Low dBA 49/45/41 Heating High/Medium/ Low dBA 49/45/41 Refrigerant Type R-410A / R-32 Piping connections Liquid Type/OD mm Flare connection/9,52 Gas Type/OD mm Flare connection/15.9 Drain VP13 (I.D. 18) Heat insulation Foamed polystyrene/polyethylene 2-2 Electrical Specifications FAA100A Power supply Phase 1~ Frequency Hz 50 Voltage V 220-240 Acc essories: 1 Remote control Wireless Heat pump operation BRC7EB518 Cooling only BRC7EB519 Wired
BRC1E53A7(1)(4), BRC1E53B7(2)(4), BRC1E53C7(3)(4), BRC1E51A7, BRC1D528 2 Simplified remote control (with operation mode selector button) BRC2E52C7(5) 3 Simplified remote control (without operation mode selector button) BRC3E52C7(5) 4 Wiring adaptor for electrical appendices (2) KRP4AA51(6) 5 Installation box for adaptor PCB KRP4AA93(6) 6 Central remote control DCS302CA51 6-1 Electrical box with earth terminal (3 blocks) KJB311AA 7 Unified ON/OFF controller DCS301BA51 8-1 Electrical box with earth terminal (2 blocks) KJB212AA 8-2 Noise filter (for electromagnetic interface only) KEK26-1A 9 Schedule timer DST301BA51 10 Remote sensor KRCS01-4B 11 Drain plug kit K-KDU572EVE 12 iTouch Controller DCS601C51 13 Digital input adaptor BRP7A51(6)(7) PDF Data: These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit
until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Daikin Air Conditioning
- Product SKU: FAA100A+AZAS100MV1
- MPN / Model: FAA100A+AZAS100MV1
- Category: Daikin Air Conditioning Wall Mounted Inverter Heat Pump FAQ
- Parent Category: Daikin Wall Air Conditioning FTXP, FAQ, FTXJ, FTXZ and FTXM A+, A++, A+++
- Condition: New
- Availability: InStock
