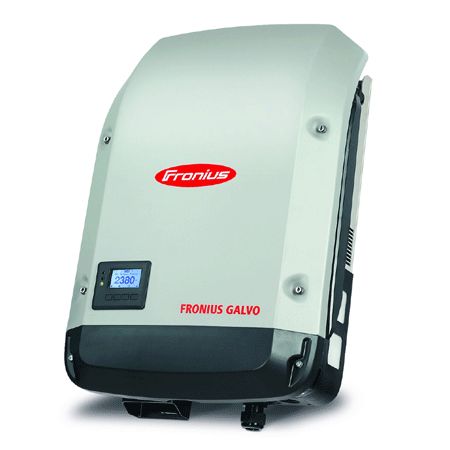

Fronius GALVO 2.5-1 Single Phase Solar Inverter 1 MPPT 2.5kW 415V~50Hz
Fronius GALVO 2.5-1 Single Phase Solar Inverter 1 MPPT 2.5kW 415V~50Hz is listed for TieDex store sale under Single Phase Solar Inverters. The brand/vendor is Fronius. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
With power categories ranging from 1.5 to 3.1 kW, the Fronius Galvo is perfect for households – and is especially suitable for self-consumption systems. The integrated energy management relay allows the self-consumption component to be maximised. A host of other smart features make the Fronius Galvo one of the most future-proof inverters in its class: for example, the integrated datalogging, the simple connection to the internet by WLAN, or the plug-in card technology for retrofitting additional functions. Technical Specification INPUT DATA GALVO 2.5-1 Max. input current (Idc max) 16.6 A Max. array short circuit current 24.8 A Min. input voltage (Udc min) 165 V Feed-in start voltage (Udc start) 185 V Nominal input voltage (Udc,r) 330 V Max. input voltage (Udc max) 550 V MPP voltage range (Umpp min – Umpp max) 165 - 440 V Number of MPP trackers
1 3 OUTPUT DATA GALVO 2.5-1 AC nominal output (Pac,r) 2,500 W Max. output power 2,500 VA AC output current (Iac nom) 10.9 A Grid connection (voltage range) 1~NPE 230 V (+17 % / -20 %) Frequency (frequency range) 50 Hz / 60 Hz (45 - 65 Hz) Total harmonic distortion < 4 % 0.85 - 1 ind. GENERAL DA T A GALVO 2.5-1 Dimensions (height x width x depth) 645 x 431 x 204 mm Weight 16.8 kg Degree of protection IP 65 Protection class 1 Overvoltage category (DC / AC) 2) 2 / 3 Night-time consumption < 1 W Inverter concept HF transformer Cooling Regulated air cooling Installation Indoor and outdoor installation Ambient temperature range -25 - +50 °C Permitted humidity 0 to 100 % Max. altitude 2,000 m / 3,500 m (unrestricted / restricted voltage range) DC
connection technology Screw terminal connection 2.5 mm² - 16 mm² AC connection technology Screw terminal connection 2.5 mm² - 16 mm² ÖVE / ÖNORM E 8001-4-712, AS 4777-2, AS 4777-3, AS3100, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1-2, IEC 62116, IEC 61727, CER 06-190, CEI 0-21, EN 50438, G83, G59, NRS 097
Key Details
- Brand / Vendor: Fronius
- Product SKU: GALVO 2.5-1
- MPN / Model: GALVO 2.5-1
- Category: Single Phase Solar Inverters
- Parent Category: Solar Inverters
- Condition: New
- Availability: OutOfStock
