Fujitsu Air conditioning AIRSTAGE ARYG60LHTA AOYG60LATT Duct Heat Pump High Static 15Kw/60000Btu 3Ph
Fujitsu Air conditioning AIRSTAGE ARYG60LHTA AOYG60LATT Duct Heat Pump High Static 15Kw/60000Btu 3Ph is listed for TieDex store sale under Fujitsu Air Conditioning ARXG Medium Static Duct. The brand/vendor is Fujitsu Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

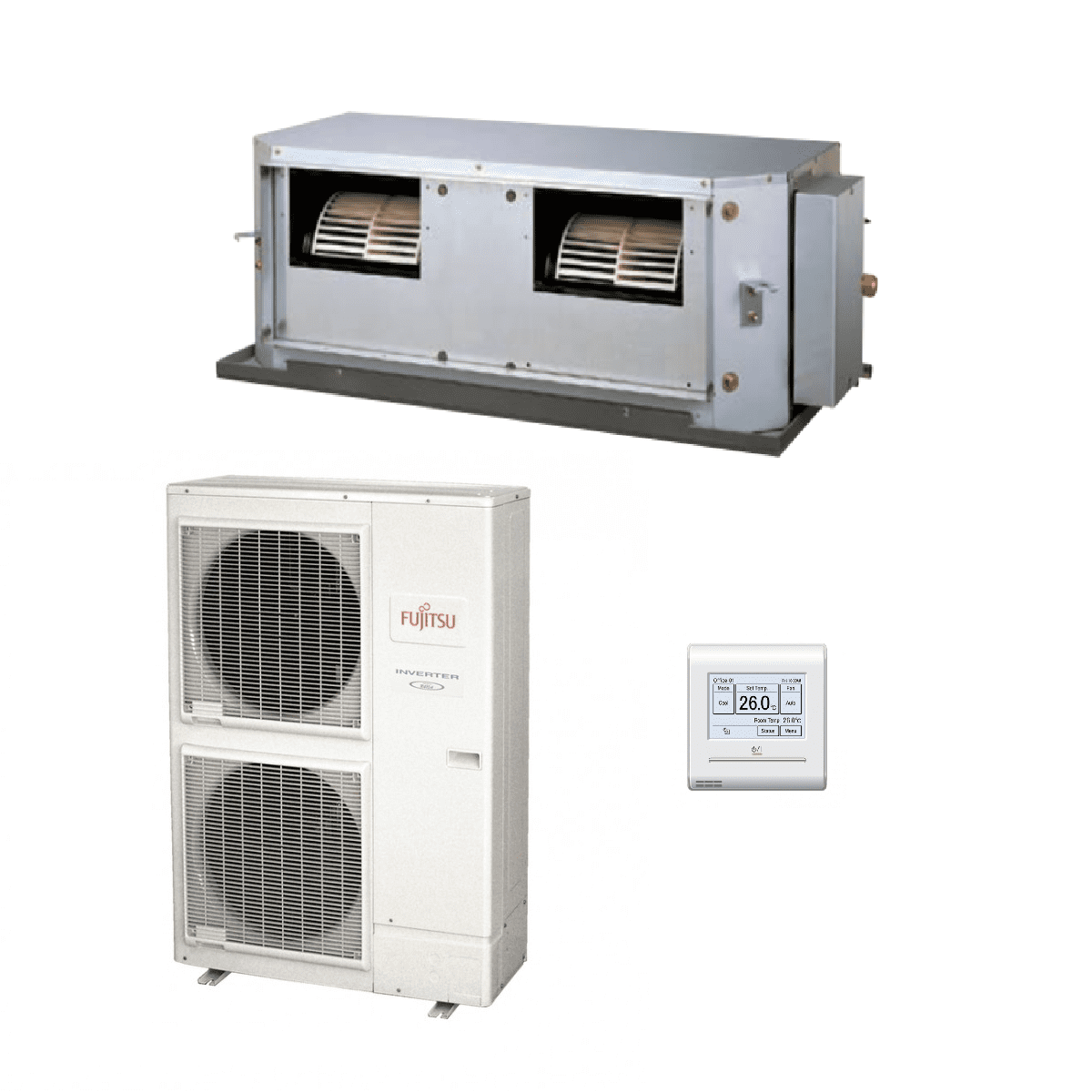

Fujitsu Air conditioning AIRSTAGE ARYG60LHTA AOYG60LATT Duct Heat Pump 15Kw/60000Btu Inverter High Static 15Kw/60000Btu R32 415V~50Hz This Kit Includes: 1 x Fujitsu Air conditioning AIRSTAGE ARYG60LHTA Duct Heat Pump High Static 15Kw/60000Btu R32 1 x Fujitsu Air conditioning AIRSTAGE AOYG60LATT Outdoor Condensing Unit 5Kw/60000Btu R32 3Ph 415V~50Hz 1 x Touch-screen Controller UTY-RNRYZ3 Horizontally Mounted Perfect for areas where you want high-powered concealed air conditioning, the ARYG-LHTA high static pressure ducted units are mounted above a ceiling and designed for small homes, offices, restaurants, or shops. The ARYG-LHTA ducted unit operates at low noise levels and is virtually invisible when installed within a suspended ceiling. Its low unit height and lightweight design make installation easier and more convenient. With high static pressure capability, it is ideal for large rooms and commercial uses. The Fujitsu air conditioning condensing R32 inverter outdoor unit
features an energy-saving inverter circuit for compact, lightweight operation with enhanced performance. This advanced system operates efficiently even in extreme conditions, whether at very low or hot outdoor temperatures. Unlike conventional systems, Fujitsu inverter technology adapts the compressor speed to real-time requirements, consuming only the necessary energy. The unit’s design features slanted corners to minimise turbulent airflow, while a plastic case and fan further reduce operational noise. Stable temperature control is achieved within a margin of ±0.5ºC, ensuring greater comfort in any environment. With its combination of advanced features, whisper-quiet operation, and compact, energy-efficient design, the ARYG-LHTA high static pressure ducted unit delivers outstanding performance for large, demanding spaces. Key Product Features: Economy Operation: Reduces energy consumption for greater efficiency. Auto Changeover: Automatically switches between heating and cooling as needed. Adjust Function: Provides optimised airflow and operation adjustments. Auto Restart:
Automatically resumes operation after a power failure. Setback Timer: Enables scheduled temperature settings to optimise comfort and energy savings. Filter Sign: Alerts you when it’s time to clean the filter for improved performance. Blue Fin Coating: Enhances durability with superior resistance to corrosion. High static duct compression High output Large air volume flow 2 temperature sensors (controller and unit) for improved convenience Touch-screen remote controller hard wired R32 refrigerant gas Highly efficient DC fan motors Specification: Specification Details Power Source 3-phase, ~400 V, 50 Hz Cooling Capacity (kW) 15.0 Cooling Min-Max (kW) 6.2-17.5 Heating Capacity (kW) 18.0 Heating Min-Max (kW) 6.2-20.0 Input Power Cooling/Heating (kW) 4.70 / 5.15 EER (W/W) 3.19 COP (W/W) 3.50 Max Operating Current (A) 12.5 / 12.5 Moisture Removal (L/h) 2.0 Sound Pressure Indoor (Cooling) 45/40/36/- Sound Pressure Indoor (Heating) 45/40/36/- Sound Pressure Outdoor (Cooling) 56
Sound Pressure Outdoor (Heating) 58 Airflow Rate Indoor/Outdoor (Cooling) 3,550 / 6,900 Airflow Rate Indoor/Outdoor (Heating) 3,550 / 7,300 Static Pressure Range (Pa) 60 to 260 (60) Net Dimensions Indoor (mm) 425 × 1,250 × 490 Net Dimensions Outdoor (mm) 1,290 × 900 × 330 Weight Indoor (kg) 54 Weight Outdoor (kg) 104 Connection Pipe Diameter (mm) 9.52 / 15.88 Drain Hose Diameter (I.D./O.D.) 23.4 / 25.4 Max. Pipe Length (Pre-Charge) 75 (30) Max Height Difference (m) 30 Operating Range Cooling (°CDB) -15 to 46 Operating Range Heating (°CDB) -15 to 24 Refrigerant Type R410A (2,088) Refrigerant Charge (kg CO2eq-T) 3.45 (7.204) Options: Category Part Code Wired Remote Controller: UTY-RNNYM Wired Remote Controller: UTY-RNYM External Switch Controller: UTY-TERX WLAN Adapter: UTY-TFNXZ1, FG-RC-WIFI1Z2 Remote Sensor Unit: UTY-XSZXZ1 IR Receiver Unit: UTY-LRHYM Network Convertor for Single Split (DC Power): UTY-VTGX Network Convertor
for Single Split (AC Power): UTY-VTGXV External Connect Kit: UTD-ECS5A External Connect Kit (Outdoor Unit): UTY-XWZXZ2 PDF Data Sheet: These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Fujitsu Air Conditioning
- Product SKU: ARYG60LHTA AOYG60LATT
- MPN / Model: ARYG60LHTA AOYG60LATT
- Category: Fujitsu Air Conditioning ARXG Medium Static Duct
- Parent Category: Fujitsu Air Conditioning ARXG Ducted Heat Pump Inverter
- Condition: New
- Availability: OutOfStock
