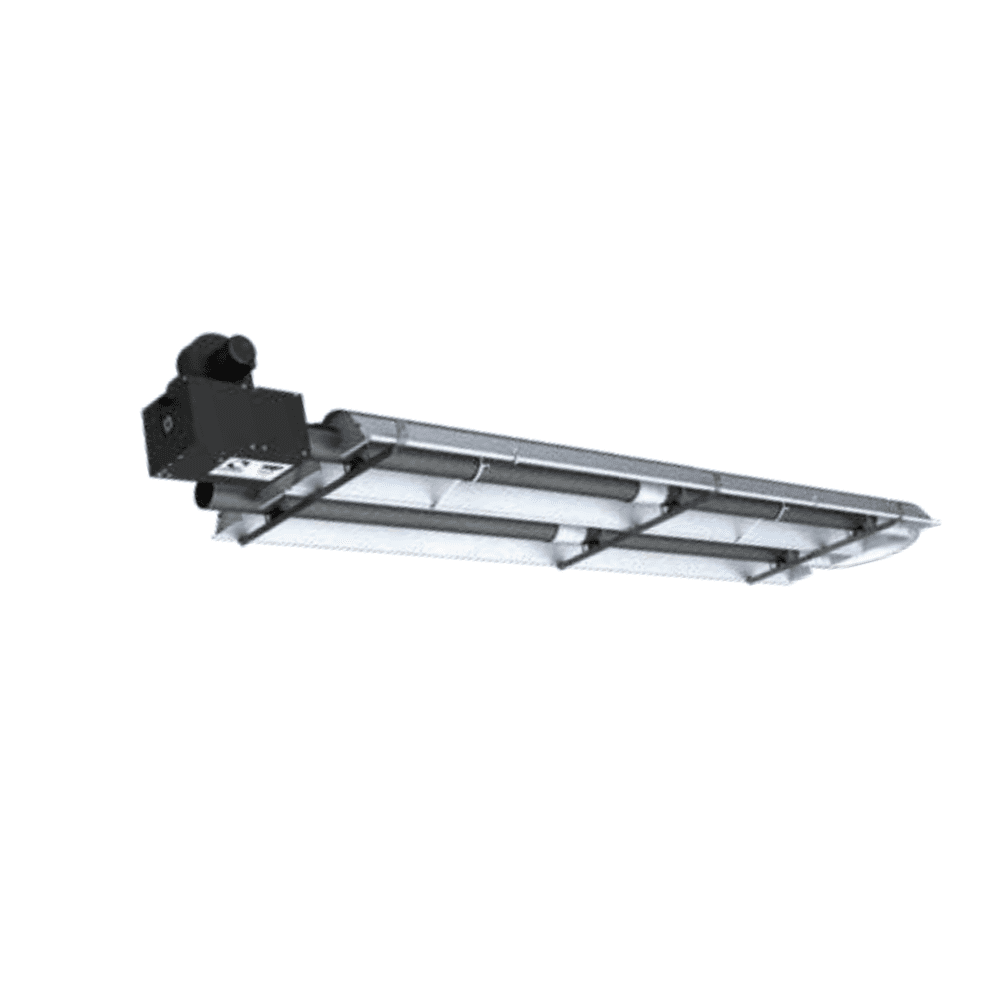

Powrmatic PVDL20 Warehouse Double Linear Radiant Vacuum Tube Heaters 44kW/150000Btu 220-240V~50Hz
Powrmatic PVDL20 Warehouse Double Linear Radiant Vacuum Tube Heaters 44kW/150000Btu 220-240V~50Hz is listed for TieDex store sale under Gas Radiant Tube Heater. The brand/vendor is Powrmatic. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
This Kit Includes: 1 × Powrmatic PVDL20 Double Linear Vacuum Radiant Tube Heater 1 × Twin aluminised steel radiant emitter tube assemblies 1 × High-efficiency aluminium reflector system 1 × Induced vacuum gas burner assembly with combustion fan 1 × Galvanised suspension mounting bracket set 1 × Factory-installed ignition and safety control module 1 × MC200 Optimised Control MC200V3 High Capacity Double Linear Radiant Heating for Large Industrial Buildings The Powrmatic PVDL20 double linear radiant heater is designed to provide powerful and efficient infrared heating for large industrial buildings such as warehouses, logistics hubs and manufacturing facilities. Using vacuum burner technology, the heater draws combustion gases through the radiant tubes to maintain consistent surface temperatures and uniform heat distribution across the emitter length. This design ensures reliable performance and improved heating efficiency compared with conventional warm-air systems. Infrared radiant heating
works by warming people, floors and equipment directly rather than heating the air volume inside the building. This reduces heat loss caused by air stratification in high-roof industrial spaces and provides faster warm-up times with improved comfort in the occupied working zone. The double linear configuration effectively doubles the radiant emitter surface compared with a single tube heater, making the PVDL range particularly suitable for wide warehouse bays or large open production areas. Two-stage burner technology allows rapid warm-up on high fire and energy-efficient operation on low fire once the building reaches the desired temperature. Combined with the MC200 optimised control system and remote black-bulb sensor, the heater delivers accurate radiant temperature control and reduced energy consumption in demanding commercial heating applications. Key Product Features: • Double linear vacuum radiant tube heater • Heat input (high fire): 44 kW /
150,000 Btu • Heat input (low fire): 35 kW • Vacuum burner technology for consistent tube temperatures • Two-stage high / low burner operation • High-efficiency aluminium reflector profile • Twin radiant emitter tube design for wider heat coverage • Designed for suspended installation in large buildings • Compatible with MC200 optimised radiant heating controller • Suitable for Natural Gas or LPG (injector change required) • Ideal for warehouses, factories and logistics centres Powrmatic SRP radiant heaters are engineered with high-efficiency reflectors designed to direct the majority of radiant energy downward into the working space, maximising heating performance while reducing energy losses. Technical Specifications: Model: PVDL20 Product Type: Double Linear Vacuum Radiant Tube Heater Heat Input (High Fire): 44 kW Heat Input (Low Fire): 35 kW Heating Capacity: 44 kW / 150,000 Btu Fuel Type: Natural Gas (G20) or LPG
(G31) Electrical Supply: 220-240V~50Hz 1Ph Burner Type: Induced vacuum gas burner Emitter Configuration: Double linear radiant tubes Flue Diameter: 130 mm Heater Length: 19,700 mm Installation Type: Suspended ceiling mounting Applications: • Industrial warehouses • Manufacturing plants • Logistics and distribution centres • Workshops and engineering facilities • Agricultural buildings • Commercial storage facilities Compatible Accessories: Description Included Part Number Used On Flue Dia (mm) £ Vertical B22 (Single Pipe) Flue Kit 1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands PSRP/VFK/1 PU/PVU 100 503 PSRP/VFK/2 PL/PVL 100 555 PSRP/VFK/3 PVDL 130 657 Horizontal B22 (Single Pipe) Flue Kit 2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands PSRP/HFK/1
PU/PVU 100 733 PSRP/HFK/2 PL/PVL 100 483 PSRP/HFK/3 PVDL 130 609 Vertical C32 (Twin Pipe Balanced) Flue Kit 1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 PSRP/VBFK/1 PVU 100 881 PSRP/VBFK/2 PU 100 961 Description Included Part Number Used On Flue Dia (mm) £ Vertical B22 (Single Pipe) Flue Kit 1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands PSRP/VFK/1 PU/PVU 100 503 PSRP/VFK/2 PL/PVL 100 555 PSRP/VFK/3 PVDL 130 657 Horizontal B22 (Single Pipe) Flue Kit 2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm
length, 1 × Horizontal terminal, 6 × Locking bands PSRP/HFK/1 PU/PVU 100 733 PSRP/HFK/2 PL/PVL 100 483 PSRP/HFK/3 PVDL 130 609 Vertical C32 (Twin Pipe Balanced) Flue Kit 1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 PSRP/VBFK/1 PVU 100 881 PSRP/VBFK/2 PU 100 961 Difference Between PVL20LS and PVL20: Model Heat Input Main Difference Tube Length PVL20LS 22 kW Longer radiant tube system ~8 m PVL20 22 kW Standard length radiant tube system ~9.85 m
Key Details
- Brand / Vendor: Powrmatic
- Product SKU: PVDL20
- MPN / Model: PVDL20
- Category: Gas Radiant Tube Heater
- Parent Category: Heating
- Condition: New
- Availability: InStock
