Powrmatic SQ20H1 Electric Quartz Horizontal Industrial Infrared Heater 2Kw /7000Btu 220-240V~50Hz
Powrmatic SQ20H1 Electric Quartz Horizontal Industrial Infrared Heater 2Kw /7000Btu 220-240V~50Hz is listed for TieDex store sale under Infrared Heaters. The brand/vendor is Powrmatic. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

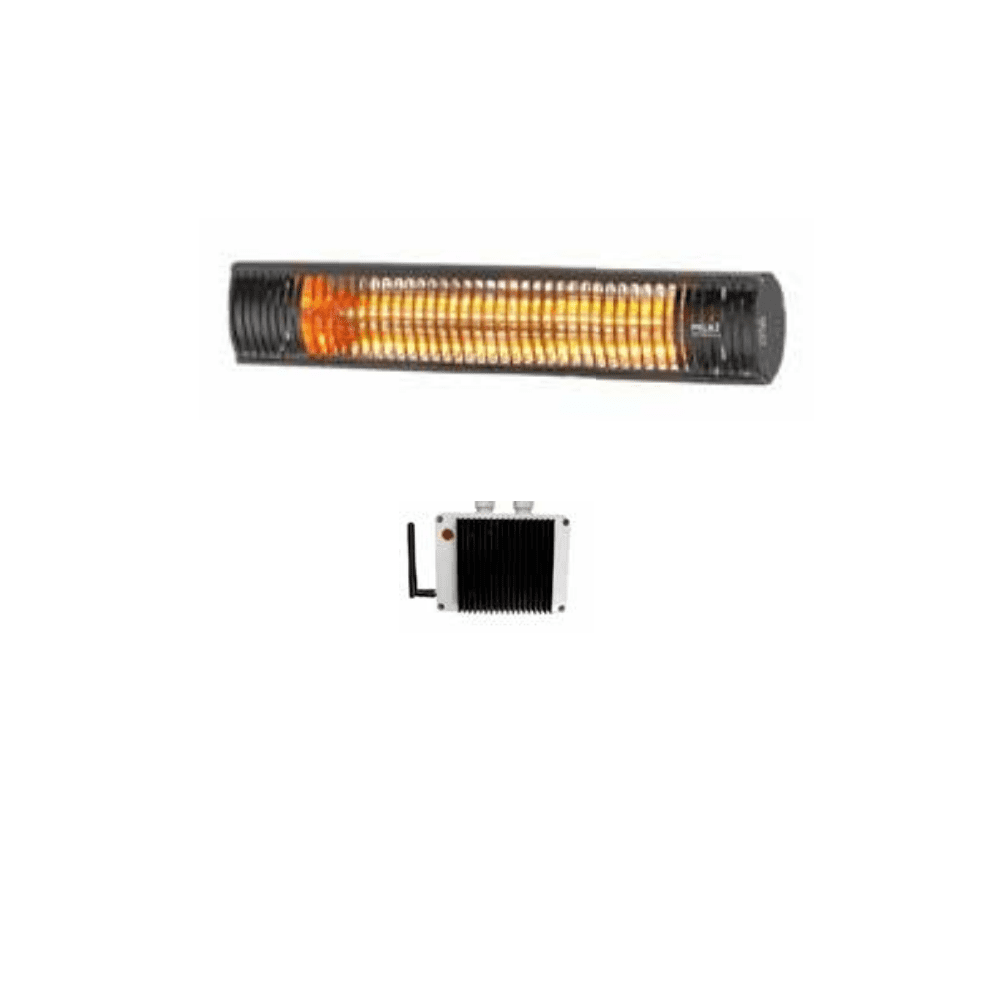

This Kit Includes: 1 × Powrmatic SQ20H1 Electric Quartz Horizontal Industrial Infrared Heater 1 × Integrated quartz infrared heating lamp (1 × 2kW) 1 × Adjustable wall or suspension mounting bracket 1 × Protective safety guard and heater housing 1 × Factory fitted electrical supply cable and connection 1 x SQ30RVC 3kW Remote Variable Heater Controller Compact Industrial Quartz Infrared Heater for Targeted Spot Heating The Powrmatic SQ20H1 Electric Quartz Infrared Heater is a compact industrial heating solution designed to provide rapid and efficient warmth to specific work areas in commercial and industrial environments. Using high-intensity quartz infrared technology, the heater emits radiant heat that warms people, machinery and surfaces directly rather than heating surrounding air. This method of heating is particularly effective in spaces such as warehouses, workshops, loading bays and production areas where warm air heating systems can
lose efficiency due to high ceilings, open doors or large air volumes. Infrared radiant heating provides instant comfort and targeted heat exactly where it is required. The SQ range from Powrmatic has been designed to offer an energy-efficient alternative to conventional heating systems by focusing heat into occupied zones rather than attempting to heat entire building volumes. The SQ20H1 model delivers 2kW of radiant heat output from a single quartz heating lamp and is ideally suited to small industrial work areas requiring reliable and responsive heating. Its compact horizontal design allows the heater to be easily mounted on walls or suspended from ceilings above workstations, entrances or production areas where focused spot heating is required. Key Product Features: • Electric quartz infrared radiant heating technology • Heat output: 2kW / 7,000Btu • Single phase electrical supply • Instant heat output
with no warm-up delay • Direct radiant heat to people and surfaces • IPX5 rated for industrial environments • Long-life low glare quartz heating lamp • Adjustable wall or suspended mounting options • High-efficiency parabolic reflector design • Suitable for targeted industrial spot heating applications Technical Specifications: Model: SQ20H1 Product Type: Electric Quartz Infrared Heater Heat Output: 2kW / 7,000Btu Heating Technology: Quartz infrared radiant heating Electrical Supply: 220-240V~50Hz 1Ph Heating Element: 1 × 2kW quartz infrared lamp Dimensions (H × W × L): 75 × 100 × 540 mm Minimum Mounting Height: 1.8 m Minimum Distance from Ceiling: 0.25 m Minimum Distance from Side Wall: 0.5 m Lamp Length: 330 mm Weight (without guard): 2.5 kg Cable Length: 1.8 m Recommended Heating Coverage: Up to approximately 6m² work area Applications: • Warehouses and distribution centres • Workshops and garages
• Factory production lines • Industrial workstations • Loading bays and dispatch areas • Agricultural buildings • Retail and commercial spaces Accessories: Part Code Description £ SQ30RVC 3kW Remote Variable Heater Controller 882 SQ60RVC 6kW Remote Variable Heater Controller 882 SQ90RVC 9kW Remote Variable Heater Controller 882 SQ/1Z 1 Zone Master Controller 900 SQ/3Z 3 Zone Master Controller 900 SQ180/3Z 18kW 3 Zone Industrial Heater Controller 3947 SQ240/3Z 24kW 3 Zone Industrial Heater Controller 4067 SQ270/3Z 27kW 3 Zone Industrial Heater Controller 4500 SQ40HC Heater Controller 4kW 896 SQ60HC Heater Controller 6kW 1187 SQ/PIR PIR Switch (12v) 102 SQ40TL Time Lag Switch 4kW (1–60min) 213 SQ60TL Time Lag Switch 6kW (1–60min) 273 SQ/ETL External Time Lag (used with 18, 24 and 27kW Controller) 171 SQ15HL/382 Industrial Heater Lamps 1.5kW 240v – 382mm 167 SQ20HL/382 Industrial Heater Lamps 2.0kW 240v –
382mm 167 SQ15HL/530 Industrial Heater Lamps 1.5kW 240v – 530mm 208 SQ20HL/530 Industrial Heater Lamps 2.0kW 240v – 530mm 208
Key Details
- Brand / Vendor: Powrmatic
- Product SKU: SQ20H1
- MPN / Model: SQ20H1
- Category: Infrared Heaters
- Parent Category: Heating
- Condition: New
- Availability: InStock
