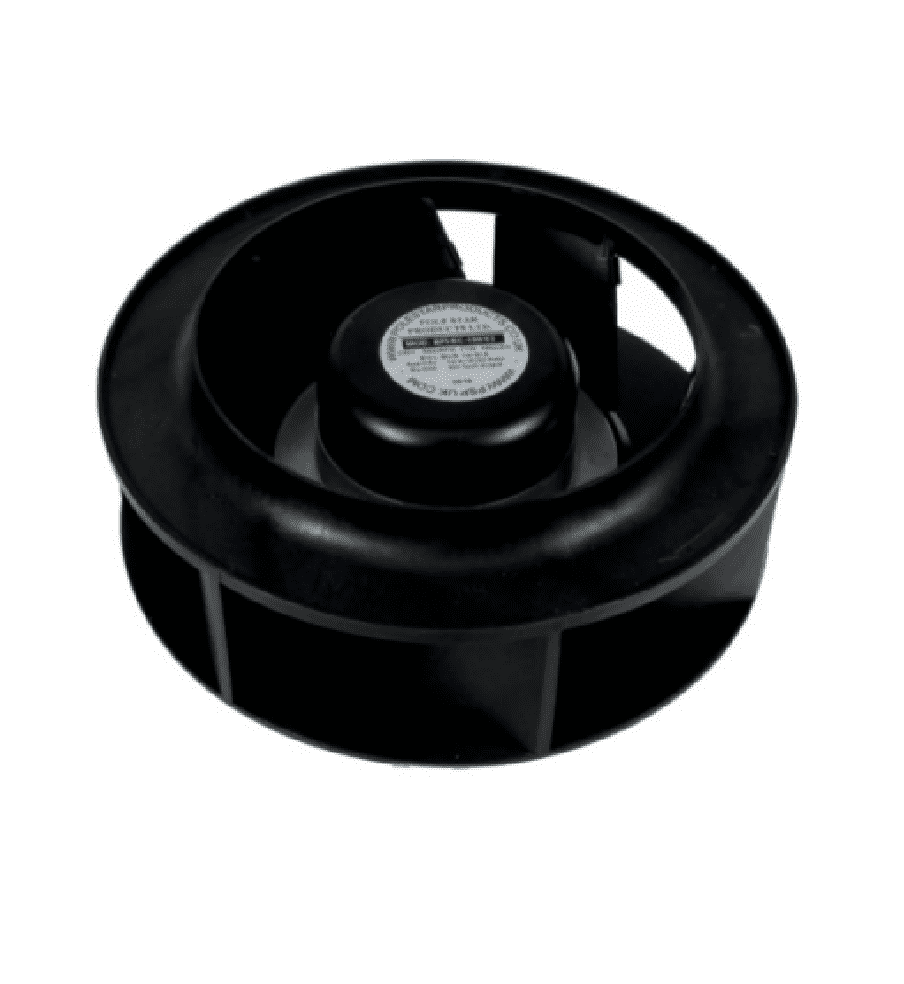

PSP BPI-EC-225/90 Backward Curved Centrifugal Fan 225mm EC 230V~50Hz/60Hz
PSP BPI-EC-225/90 Backward Curved Centrifugal Fan 225mm EC 230V~50Hz/60Hz is listed for TieDex store sale under Industrial Blowers & Air Movers. The brand/vendor is PSP. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
Introduction The PSP BPI-EC-225/90 is a high-performance backward curved centrifugal fan designed for commercial HVAC systems, air handling units, heat recovery equipment and OEM ventilation applications. Equipped with advanced EC motor technology and a precision-engineered backward curved impeller, this model provides excellent airflow performance with low energy consumption. Its robust construction and continuous-duty design make it ideal for demanding ventilation environments where efficiency and reliability are essential. Key Product Features Single-phase 230V~50Hz/60Hz EC motor Backward curved centrifugal impeller Variable speed controllable operation 225mm wheel diameter 90mm wheel height Airflow up to 1270m³/h 139W input power Maximum speed 3010 RPM Totally enclosed motor construction IP54 motor protection Class B insulation Sealed-for-life ball bearings Continuous-duty operation Suitable for AHUs, heat recovery units and OEM ventilation equipment Technical Specifications: Model: BPI-EC-225/90 Brand: PSP Fan Type: Backward Curved Centrifugal Fan Voltage: 230V~50Hz/60Hz Phase: 1PH
Input Power: 139W Maximum RPM: 3010 Airflow: 1270m³/h Overall Height: 130mm Outlet Height: 62.5mm Wheel Height: 90mm Wheel Diameter: 225mm Fixing PCD: 58/105 Disclaimer Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
Key Details
- Brand / Vendor: PSP
- Product SKU: BPI-EC-225/90
- Category: Industrial Blowers & Air Movers
- Parent Category: Fans And Extraction
- Condition: New
- Availability: InStock
- TieDex UK
This Industrial Blowers & Air Movers product page is formatted for a clear buying experience, with the essential commercial fields separated for TieDex import. The listing keeps the manufacturer or supplier wording where available and adds structured details so customers can quickly identify the brand, model, category and condition. Before purchase, customers should compare the product code, voltage, size, capacity, compatibility and installation requirements against their project needs. For business, trade and export enquiries, the item can be reviewed alongside the full specification, delivery options and any site-specific requirements. The product is suitable for catalogue presentation where customers need a straightforward overview, searchable title, mapped SKU, image, and product category information in one place.
