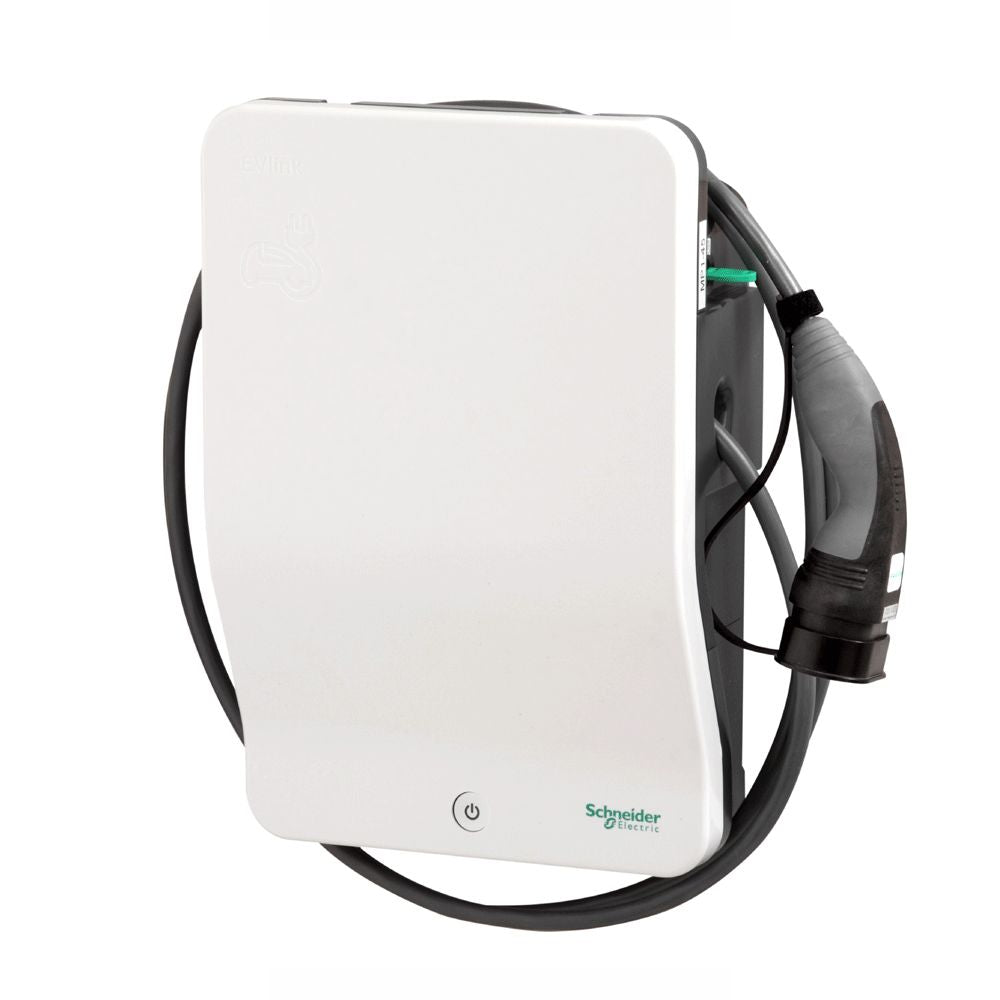

Scheider Electric Schneider Electric "EVlink 2" Electric Vehicle Charger with Attached Cable & Type 2 Plug 22kW 240V~50Hz
Scheider Electric Schneider Electric "EVlink 2" Electric Vehicle Charger with Attached Cable & Type 2 Plug 22kW 240V~50Hz is listed for TieDex store sale under Three Phase Electric Vehicle Charging. The brand/vendor is Scheider Electric. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
EVLINK WALLBOX CHARGING STATIONS FOR HOME OR PRIVATE PROPERTIES (INDOORS OR OUTDOORS) EVlink Wall box – EVlink charging solutions for electric vehicles at home and in private or semi- public car parks. Charging stations are specially designed to withstand several hours of use on a daily basis in a tough environment. EVlink 2 - Electric Vehicle Charger 22kW Charger with Attached Cable & Type 2 Plug. Key Features •Outdoor or Indoor installation •Wall-mounted or floor standing* •Power Range: 3.7 kW to 22.1 kW with permanent derating option •Socket outlet (T2/T2S) or attached cable (T2/T1) •Keylock to limit socket outlet access and/or limit access while charging Technical Specification Main Range- EVlink Product name- EVlink wallbox Product or component type- Charging station Device short name- EVH2 Poles description- 3P + N Mounting mode- Wall-mounted Offer type- Standard Nominal output power- 22 kW
32 A Socket outlet type- Cable T2 Socket number- 1 Output type- Attached cable T2 4 m Access control system- Key Complementary [Us] Rated supply voltage- 380...415 V AC 50/60 Hz Earthing system- TN/ TT Number of inputs- 1 Input type- Contact for delayed charging/ Contact for power limitation Control type- 1 white button, function: stop/restart/ Green button, function: cable unlocking Local signalling- 1 multi-colour LED, function: status indication Height- 480 mm Width- 330 mm Depth- 170 mm Product weight- 7.5 kg Colour- Grey RAL 7016/ White RAL 9003 Standards- IEC 61851-1/ IEC 61851-22/ IEC 62196-2/ IEC 62196-1 Product certifications CB/ CE
Key Details
- Brand / Vendor: Scheider Electric
- Product SKU: EVlink2-7943
- MPN / Model: EVlink2
- Category: Three Phase Electric Vehicle Charging
- Parent Category: EV Electric Vehicle Charging
- Condition: New
- Availability: InStock
