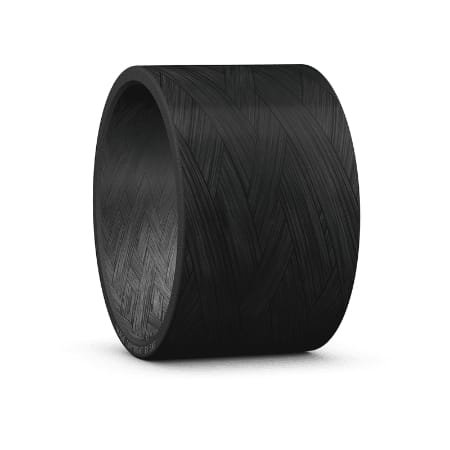

This spherical bearing provides a self-aligning Interface for rotating or oscillating connections in industrial assemblies. Constructed from a filament-wound material, it is intended for heavy-load contexts where a robust, open-ended bearing is required. The component accommodates radial alignment while operating within assemblies that require a substantial outside diameter and a close-fitting bore.
Features and Benefits
- Filament-wound construction offers enhanced load distribution
Open-end format allows straightforward axial installation
High load capacity supports heavy-duty mechanical joints
PWM series design enables consistent performance characteristics
Applications
- Suitable for pivot joints in heavy machinery assemblies
Used for linkages subject to shock and misalignment
Ideal for rotating shafts requiring a press-fit bore
Can be used for structural suspension pivots in industry
What are the key material characteristics relevant to wear performance?
The filament-wound composition provides layered reinforcement that improves load sharing and resists deformation under sustained loads.
How does the open-end configuration affect maintenance procedures?
The open end permits Visual inspection and easier access for removal or replacement without disassembly of surrounding components.
What fitting considerations should be observed for bore installation?
Ensure a precise interference or transition press fit with the 60 mm bore to achieve correct seating and minimise play.
How does the bearing accommodate shaft misalignment during operation?
The spherical internal geometry permits angular offset between connected parts, reducing stress from misaligned shafts.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
