Toshiba Air Conditioning Ceiling Mounted RAV-GM1601AT8P-E RAV-HM1601CTP-E 14Kw/48000Btu 3Ph
Toshiba Air Conditioning Ceiling Mounted RAV-GM1601AT8P-E RAV-HM1601CTP-E 14Kw/48000Btu 3Ph is listed for TieDex store sale under Toshiba Air Conditioning RAV Ceiling Mounted Heat Pump Inverter. The brand/vendor is Toshiba Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

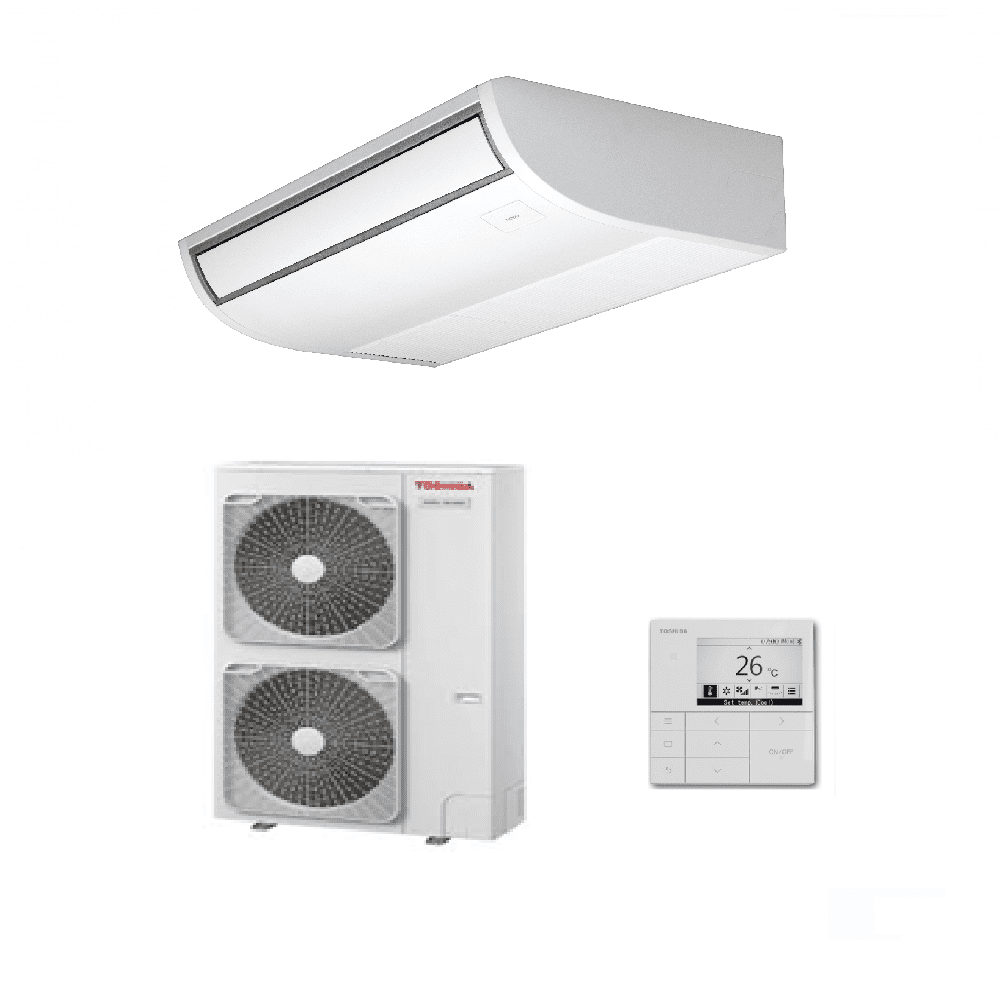

This Kit Includes: 1 × Toshiba Ceiling Suspended Indoor Unit RAV-HM1601CTP-E 14.0kW Cooling / 16.0kW Heating | High-Capacity Commercial Unit | 220-240V~50Hz 1 × Toshiba Digital Inverter Outdoor Unit RAV-GM1601AT8P-E (3-Phase) 14.0kW Cooling / 16.0kW Heating | 380-415V~50Hz/60Hz Heavy-Duty Operation 1 × Toshiba RBC-AMSU52-E Wired Controller Ultra-High-Capacity 14kW 3-Phase Ceiling Suspended System for Demanding Commercial Spaces This 3-phase Toshiba ceiling-suspended system is designed for large, high-demand commercial environments requiring extremely strong airflow and stable heating and cooling performance. The RAV-HM1601CTP-E indoor unit provides powerful, wide-throw airflow suitable for large open-plan offices, restaurants, halls, classrooms, retail environments and public spaces without ceiling void access. With a substantial 14.0kW cooling and 16.0kW heating capacity, this system easily supports large areas and higher occupancy levels. Toshiba’s advanced inverter technology delivers efficient modulation, lower electrical load and quieter operation, ensuring comfortable and reliable climate
control throughout the year. The heavy-duty 3-phase RAV-GM1601AT8P-E outdoor unit provides improved operational stability, lower current draw and outstanding durability, making it ideal for continuous commercial use or installations with high electrical load balancing requirements. With included wired control, robust build quality and leading efficiency, this system is a premium choice for professional installations in commercial buildings. Key Product Features: 14.0kW cooling / 16.0kW heating performance 3-phase outdoor unit for heavy-duty commercial stability Ceiling-suspended indoor design ideal for large open spaces High airflow output for excellent room coverage Low noise levels: 46 / 42 / 36 dB(A) indoor Outdoor airflow up to 6900 m³/h A+ cooling / A++ heating energy efficiency R32 refrigerant for reduced environmental impact Digital Inverter compressor for superior control and reliability Wired controller included (RBC-AMSU52-E) Suitable for offices, retail, restaurants, education and public buildings Robust design
for demanding daily commercial operation Technical Specifications: Indoor Unit: RAV-HM1601CTP-E Outdoor Unit: RAV-GM1601AT8P-E (3-Phase) Cooling Capacity: 14.0 kW Heating Capacity: 16.0 kW UK Cooling (Total/Sensible): 13.30 / 9.30 kW UK Heating: 10.88 kW SEER / SCOP / Energy Label: 5.90 / 4.35 – A+ / A++ Indoor Dimensions (H × W × D): 235 × 1586 × 690 mm Outdoor Dimensions (H × W × D): 1340 × 900 × 320 mm Indoor Airflow (H-M-L): 567 / 425 / 333 l/s Outdoor Airflow (High): 6900 – 1917 m³/h Sound Pressure (Indoor H-M-L): 46 / 42 / 36 dB(A) Outdoor Sound Pressure: 53 / 55 dB(A) Suggested Power & Fuse Rating: 380/415-3-50 & 16 A Interconnecting Cable: 3C+E Flare Connections (Gas-Liquid): 5/8″ – 3/8″ Min/Max Pipe Length: 5 / 50 m Max Height Difference: 30 m Charge-Free Pipe Length: 30 m
Refrigerant & Charge: R32 / 2.4 kg / 35 g/m Options: Model Description Price RBC-AX31U(W)-E Wireless Receiver Kit for 4-Way Cassette £191 RBC-AX33UYP-E Wireless Receiver Kit for 1-Way Cassette £57 RBC-AX31U-E Wireless Remote Controller Kit – Ceiling £211 RBC-AX31UMP-E Wireless Remote Controller Kit – Others (Exclude High Static Ducted) £317 RBC-AX31U1-E Wireless Receiver Kit for 4-Way Cassette £225 RBC-AX31UME-E Wireless Receiver Kit for Compact Cassette £141 RBC-AX31U4WE-E Wireless Remote Controller Kit for 2-Way Cassette £142 RBC-AX31U3MP-E Wireless Remote Controller Kit for Compact 4-Way White £185 RBC-AX31U3MPB-E Wireless Remote Controller Kit for Compact 4-Way Black £185 RBC-AX33U4PE-E Wireless Receiver Kit for 4-Way Cassette (MMU-UP, 1HP-E & RAV-HM, 1UP-E) £185 RBC-AX41U-E Wireless Receiver Kit for 4-Way Cassette £225 RBC-AXU33UPB-E Wireless Remote Controller Kit (IR receiver + handset), Black £173 Model Description Price RBC-AS41E Simplified Remote Controller £106 RBC-ASCU11-E Compact Remote Controller £76
RBC-ASCU32YP-E Compact Remote Controller £81 RBC-AMT32E Standard Remote Controller £126 RBC-AMT32E2 Standard Remote Controller £126 RBC-AMT54E Standard Remote Controller C/W 24/7 Schedule Timer £173 RBC-AMT52E Premium Remote Controller C/W 24/7 Schedule Timer £173 RBC-AMT52U-E Premium Remote Controller C/W 24/7 Schedule Timer + Bluetooth £157 RBC-MTSC1 Mini Touch Screen Controller £272 RBC-MTSC2 Mini Touch Screen Controller C/W Schedule Timer £272 Model Description Price BMS-CT1280E Touch Screen Controller £4,189 BMS-CT2560U-E 256 Touch Screen Controller (Multi-Language) £6,143 BMS-CT5121E Touch Screen Controller £8,733 RBC-BP2 Black Pear BMS Controller £5,233 RBC-BP1 Black Pear Controller For BACnet £4,254 RBC-BPM1 Black Pear Controller For Modbus £4,254 These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until
we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Toshiba Air Conditioning
- Product SKU: RAV-GM1601AT8P-E RAV-HM1601CTP-E
- MPN / Model: RAV-GM1601AT8P-E RAV-HM1601CTP-E
- Category: Toshiba Air Conditioning RAV Ceiling Mounted Heat Pump Inverter
- Parent Category: Toshiba Air Conditioning
- Condition: New
- Availability: InStock
