Toshiba Air Conditioning RAS-2M10G3AVG-E Multi-Split Outdoor With 2 × SEIYA Wall RAS-B07S4KVG-E A++

Toshiba Air Conditioning RAS-2M10G3AVG-E Multi-Split Outdoor With 2 × SEIYA Wall RAS-B07S4KVG-E A++

Toshiba Air Conditioning RAS-2M10G3AVG-E Multi-Split Outdoor With 2 × SEIYA Wall RAS-B07S4KVG-E A++ is listed for TieDex store sale under Toshiba Air Conditioning RAS Multi Room Heat Pump Inverter. The brand/vendor is Toshiba Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.

Product Overview

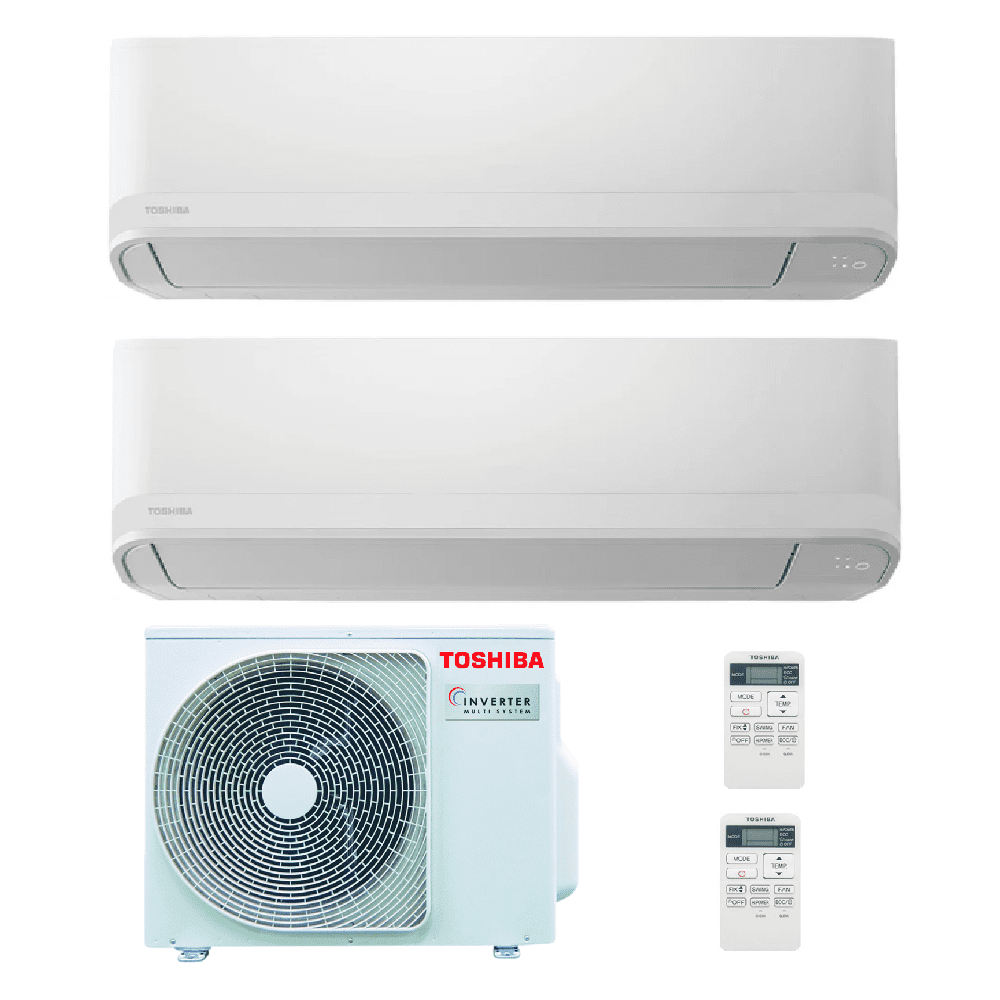

This Kit Includes: 1 × Toshiba SEIYA Indoor Unit RAS-B07S4KVG-E 2.0kW / 6800Btu A++ 220-240V~50Hz 1 × Toshiba SEIYA Indoor Unit RAS-B07S4KVG-E 2.0kW / 6800Btu A++ 220-240V~50Hz 1 × Toshiba Air Conditioning RAS-2M10G3AVG-E Multi-Split Outdoor Heat Pump Unit 3.30kW / 11250Btu A++ 220-240V~50Hz 2 × Toshiba Air Conditioning WH-TG01NE Standard Wireless Remote Controller Compact Dual-Room Comfort With Ultra-Low Noise Performance The Toshiba wall mounted multi-split system provides efficient, discreet and whisper-quiet climate control for modern residential environments. With two SEIYA 2.0kW indoor units paired to the compact RAS-2M10G3AVG-E outdoor heat pump, this dual-room package delivers smooth, stable cooling and heating with excellent seasonal efficiency and ultra-quiet operation. Each RAS-B07S4KVG-E indoor unit provides 2.0kW of cooling and 2.7kW of heating, making them ideal for bedrooms, small lounges, home offices, loft rooms and compact living spaces. Toshiba’s R32 inverter heat pump technology

delivers rapid temperature pull-down, low energy consumption and precise modulation, while SEIYA’s whisper-quiet indoor noise levels drop to as low as 19dB(A), one of the quietest wall units in its class. The RAS-2M10G3AVG-E outdoor heat pump is engineered for reliable all-season use and supports 2 unit combination's with efficient and stable performance. Its compact, lightweight design is perfect for homes with limited installation space and benefits from eco-friendly R32 refrigerant and refined inverter control for reduced running costs. Combining minimal noise, dependable output and compact styling, this Toshiba SEIYA multi-split package is a superb dual-room climate solution for smaller residential properties that require comfort, efficiency and a low visual footprint. Key Product Features: Supported 07 + 07 combination for dual-room applications Two SEIYA indoor units delivering 2.0kW / 6800Btu each Ultra-quiet indoor operation from just 19dB(A) Outdoor unit achieves A+++

cooling efficiency Inverter-driven heat pump for year-round heating and cooling Eco-friendly R32 refrigerant for lower environmental impact Compact and lightweight outdoor unit design Multi-speed airflow with precise temperature control Washable long-life filtration Wireless controllers included Ideal for bedrooms, home offices, loft rooms and small lounges Technical Specifications: Category Specification Cooling Capacity (Outdoor Unit – Nominal) 3.30 kW Heating Capacity (Outdoor Unit – Nominal) 4.00 kW Cooling Capacity (Indoor Units – Catalogue) 2 × 2.0 kW Heating Capacity (Indoor Units – Catalogue) 2 × 2.7 kW SEER (Combination) 8.60 (A+++) SCOP (Average) 4.60 (A++) Indoor Sound Pressure 19–38 dB(A) Outdoor Sound Pressure 51 / 46 dB(A) Indoor Airflow 140 – 55 l/s Outdoor Airflow 2100 m³/h Indoor Dimensions (H×W×D) 288 × 770 × 225 mm Outdoor Dimensions (H×W×D) 550 × 780 × 290 mm Indoor Weight 9 kg (each) Outdoor Weight

36 kg Refrigerant Type R32 Refrigerant Charge 0.80 kg Liquid / Gas Pipe Size 1/4" – 3/8" × 2 Max Pipe Length 15 m (per unit) / 20 m (total) Max Height Difference 10 m Charge-Free Length 10 m Power Supply 220–240V / 1Ph / 50Hz Toshiba RAS-2M10G3AVG-E – Performance Data (Bi-Split Size 07): Cooling – 230V Operating Status Combination Unit Capacity A (kW) Unit Capacity B (kW) Cooling Min (kW) Cooling Nom (kW) Cooling Max (kW) Power Input Nom (W) Power Input Max (W) Op Current Nom (A) Op Current Pdc (A) Lot.10 SEER Class EER Nom 1 Unit Operation 05 1.50 – 1.00 1.50 2.00 362 500 – – – – – 07 2.00 – 1.00 2.00 2.90 487 890 – – – – – 10 2.50 – 1.00 2.50 3.20 662 1140 – – – – –

2 Unit Operation 05 + 05 1.50 1.50 1.20 3.00 4.00 609 1040 3.18 3.00 8.00 A++ 4.93 05 + 07 1.41 1.89 1.20 3.30 4.10 697 1050 3.39 3.30 8.20 A++ 4.73 05 + 10 1.24 2.06 1.20 3.30 4.10 697 1050 3.39 3.30 8.20 A++ 4.73 07 + 07 1.65 1.65 1.20 3.30 4.10 670 1050 3.31 3.30 8.60 A+++ 4.93 07 + 10 1.83 1.47 1.20 3.30 4.10 670 1050 3.31 3.30 8.60 A+++ 4.93 10 + 10 1.65 1.65 1.20 3.30 4.10 670 1050 3.31 3.30 8.60 A+++ 4.93 Heating – 230V Operating Status Combination Unit Capacity A (kW) Unit Capacity B (kW) Heating Min (kW) Heating Nom (kW) Heating Max (kW) Power Input Nom (W) Power Input Max (W) Op Current Nom (A) Op Current Pdh (A) Lot.10 SCOP SCOP Warm Climate Label Average Label

Warm COP Nom 1 Unit Operation 05 2.00 – 0.90 2.00 2.50 460 690 – – – – – – – 07 2.50 – 1.00 2.50 3.60 520 920 – – – – – – – 10 3.20 – 1.00 3.20 4.90 730 1460 – – – – – – – 2 Unit Operation 05 + 05 2.04 2.04 1.00 4.00 4.90 780 1240 4.45 2.70 4.60 5.70 A++ A+++ 4.17 05 + 07 2.20 2.20 1.00 4.40 4.90 780 1240 4.45 2.70 4.60 5.60 A++ A++ 4.55 05 + 10 2.46 1.78 1.00 4.40 4.90 780 1240 4.09 2.20 4.50 5.60 A+ A++ 4.17 07 + 07 2.20 2.20 1.00 4.30 4.90 780 1240 4.09 2.20 4.60 5.80 A++ A+++ 4.71 07 + 10 2.25 2.00 1.00 4.40 4.90 840 1100 3.91 2.70 4.50 5.80 A++ A+++ 4.71 10

+ 10 2.00 2.00 1.00 4.40 4.90 840 1100 3.91 2.70 4.50 5.80 A++ A+++ 4.71 These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.

Key Details

• Brand / Vendor: Toshiba Air Conditioning
• Product SKU: RAS-2M10G3AVG-E-2-RAS-B07S4KVG-E
• MPN / Model: RAS-2M10G3AVG-E-2-RAS-B07S4KVG-E
• Category: Toshiba Air Conditioning RAS Multi Room Heat Pump Inverter
• Parent Category: Toshiba Air Conditioning
• Condition: New
• Availability: InStock
• TieDex UK
