Toshiba Air Conditioning RAS-2M10G3AVG-E Multi-Split With SEIYA Wall RAS-B07S4KVG-E & RAS-B10S4KVG-E

Toshiba Air Conditioning RAS-2M10G3AVG-E Multi-Split With SEIYA Wall RAS-B07S4KVG-E & RAS-B10S4KVG-E

Toshiba Air Conditioning RAS-2M10G3AVG-E Multi-Split With SEIYA Wall RAS-B07S4KVG-E & RAS-B10S4KVG-E is listed for TieDex store sale under Toshiba Air Conditioning RAS Multi Room Heat Pump Inverter. The brand/vendor is Toshiba Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.

Product Overview

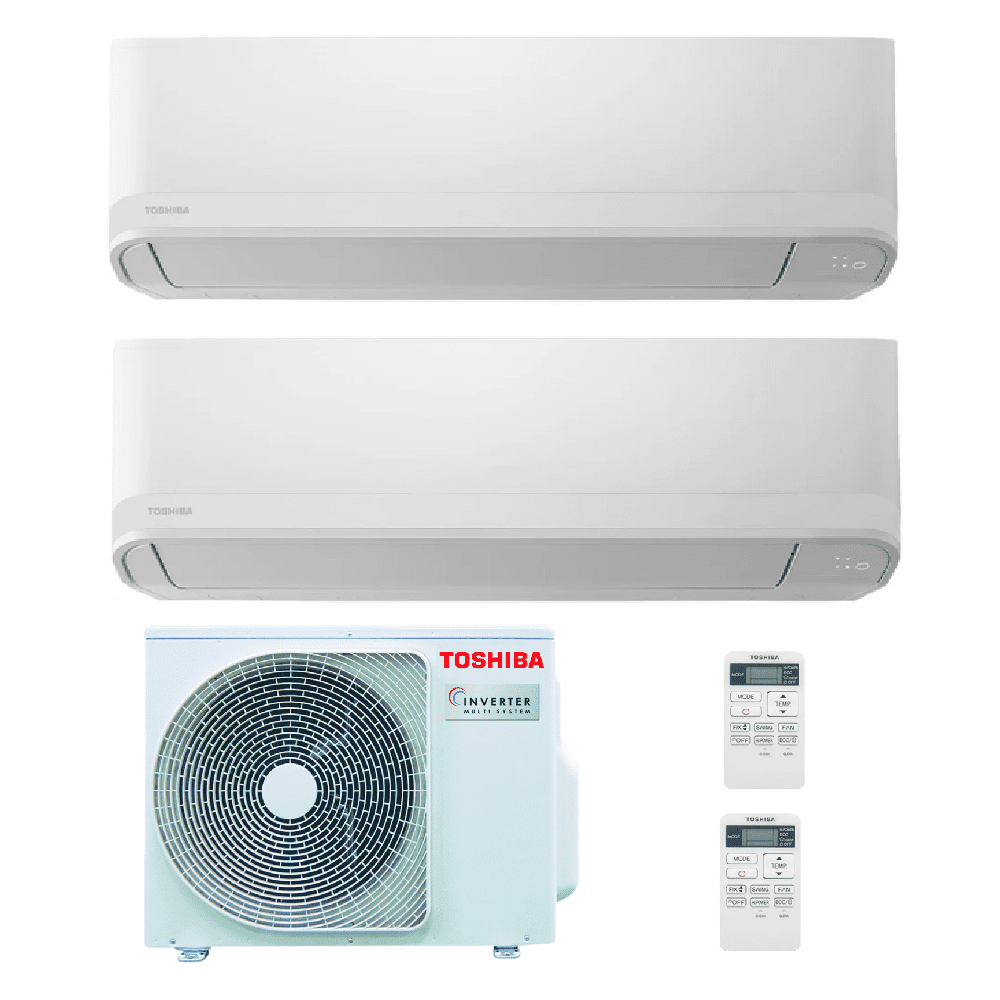

This Kit Includes: 1 × Toshiba SEIYA Indoor Unit RAS-B07S4KVG-E 2.0kW / 6800Btu A++ 220-240V~50Hz 1 × Toshiba SEIYA Indoor Unit RAS-B10S4KVG-E 2.5kW / 8500Btu A++ 220-240V~50Hz 1 × Toshiba Air Conditioning RAS-2M10G3AVG-E Multi-Split Outdoor Heat Pump Unit 3.30kW / 11250Btu A+++ 220-240V~50Hz 2 × Toshiba Air Conditioning WH-TG01NE Standard Wireless Remote Controllers Balanced Dual-Room Comfort With High Efficiency and Quiet Operation The Toshiba SEIYA wall mounted multi-split system delivers efficient, quiet and dependable climate control across two rooms, pairing the compact RAS-2M10G3AVG-E outdoor heat pump with one 2.0kW SEIYA unit and one 2.5kW SEIYA unit. This combination is ideal for homes requiring two different room capacities, such as a bedroom and a lounge, while maintaining whisper-quiet performance and excellent seasonal efficiency. Each SEIYA indoor unit offers smooth, stable cooling and heating operation using Toshiba’s advanced R32 inverter technology. With

quiet-mode sound levels as low as 19–20 dB(A), both indoor units operate unobtrusively, making them perfect for bedrooms, home offices, and living spaces where low noise is essential. The system achieves rapid temperature pull-down, precise modulation and reduced energy use thanks to Toshiba’s refined twin-rotary compressor technology. The RAS-2M10G3AVG-E outdoor unit is compact, lightweight and exceptionally efficient, achieving A+++ cooling performance while supporting the 07 + 10 combination with stable output. Designed for residential environments with tight installation spaces, it uses eco-friendly R32 refrigerant and intelligent power control to minimise running costs throughout the year. Delivering flexible room-by-room performance, reliable heating and cooling, and very low noise levels, this Toshiba SEIYA multi-split package is a superb choice for small to medium-sized homes requiring two different indoor capacities under one compact outdoor heat pump. Key Product Features: Fully supported 07 +

10 indoor combination 2.0kW & 2.5kW SEIYA high-wall units included Whisper-quiet indoor operation from 19–20 dB(A) A+++ cooling efficiency for low running costs Inverter-driven heat pump for year-round performance Eco-friendly R32 refrigerant Compact outdoor unit ideal for residential applications Wide-angle airflow and multi-speed fan modes Washable long-life filtration Two wireless remote controllers included Suitable for bedrooms, lounges, home offices and small living areas Technical Specifications: Category Specification Cooling Capacity (Outdoor Unit – Nominal) 3.30 kW Heating Capacity (Outdoor Unit – Nominal) 4.00 kW Cooling Capacity (Indoor Units – Catalogue) 2.0 + 2.5 kW Heating Capacity (Indoor Units – Catalogue) 2.7 + 3.2 kW SEER (Combination) 8.60 (A+++) SCOP (Average) 4.60 (A++) Indoor Sound Pressure 19–39 dB(A) Outdoor Sound Pressure 51 / 46 dB(A) Indoor Airflow 140 – 64 l/s Outdoor Airflow 2100 m³/h Indoor Dimensions (H×W×D) – B07 288 ×

770 × 225 mm Indoor Dimensions (H×W×D) – B10 288 × 770 × 225 mm Outdoor Dimensions (H×W×D) 550 × 780 × 290 mm Indoor Weight 9 kg (each) Outdoor Weight 36 kg Refrigerant Type R32 Refrigerant Charge 0.80 kg Liquid / Gas Pipe Size 1/4" – 3/8" × 2 Max Pipe Length 15 m per unit / 20 m total Max Height Difference 10 m Charge-Free Length 10 m Power Supply 220–240V / 1Ph / 50Hz Toshiba RAS-2M10G3AVG-E – Performance Data (Bi-Split Size 07+10): Cooling – 230V Operating Status Combination Unit Capacity A (kW) Unit Capacity B (kW) Cooling Min (kW) Cooling Nom (kW) Cooling Max (kW) Power Input Nom (W) Power Input Max (W) Op Current Nom (A) Op Current Pdc (A) Lot.10 SEER Class EER Nom 1 Unit Operation 05 1.50 – 1.00 1.50 2.00 362 500

– – – – – 07 2.00 – 1.00 2.00 2.90 487 890 – – – – – 10 2.50 – 1.00 2.50 3.20 662 1140 – – – – – 2 Unit Operation 05 + 05 1.50 1.50 1.20 3.00 4.00 609 1040 3.18 3.00 8.00 A++ 4.93 05 + 07 1.41 1.89 1.20 3.30 4.10 697 1050 3.39 3.30 8.20 A++ 4.73 05 + 10 1.24 2.06 1.20 3.30 4.10 697 1050 3.39 3.30 8.20 A++ 4.73 07 + 07 1.65 1.65 1.20 3.30 4.10 670 1050 3.31 3.30 8.60 A+++ 4.93 07 + 10 1.83 1.47 1.20 3.30 4.10 670 1050 3.31 3.30 8.60 A+++ 4.93 10 + 10 1.65 1.65 1.20 3.30 4.10 670 1050 3.31 3.30 8.60 A+++ 4.93 Heating – 230V Operating Status Combination Unit Capacity A (kW) Unit Capacity B (kW) Heating Min

(kW) Heating Nom (kW) Heating Max (kW) Power Input Nom (W) Power Input Max (W) Op Current Nom (A) Op Current Pdh (A) Lot.10 SCOP SCOP Warm Climate Label Average Label Warm COP Nom 1 Unit Operation 05 2.00 – 0.90 2.00 2.50 460 690 – – – – – – – 07 2.50 – 1.00 2.50 3.60 520 920 – – – – – – – 10 3.20 – 1.00 3.20 4.90 730 1460 – – – – – – – 2 Unit Operation 05 + 05 2.04 2.04 1.00 4.00 4.90 780 1240 4.45 2.70 4.60 5.70 A++ A+++ 4.17 05 + 07 2.20 2.20 1.00 4.40 4.90 780 1240 4.45 2.70 4.60 5.60 A++ A++ 4.55 05 + 10 2.46 1.78 1.00 4.40 4.90 780 1240 4.09 2.20 4.50 5.60 A+ A++ 4.17 07 + 07 2.20

2.20 1.00 4.30 4.90 780 1240 4.09 2.20 4.60 5.80 A++ A+++ 4.71 07 + 10 2.25 2.00 1.00 4.40 4.90 840 1100 3.91 2.70 4.50 5.80 A++ A+++ 4.71 10 + 10 2.00 2.00 1.00 4.40 4.90 840 1100 3.91 2.70 4.50 5.80 A++ A+++ 4.71 These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.

Key Details

• Brand / Vendor: Toshiba Air Conditioning
• Product SKU: RAS-2M10G3AVG-E-1-RAS-B07S4KVG-E-1- RAS-B10S4KVG-E
• MPN / Model: RAS-2M10G3AVG-E-1-RAS-B07S4KVG-E-1- RAS-B10S4KVG-E
• Category: Toshiba Air Conditioning RAS Multi Room Heat Pump Inverter
• Parent Category: Toshiba Air Conditioning
• Condition: New
• Availability: InStock
• TieDex UK
