Toshiba Air Conditioning RAS-2M18G3AVG-E Multi 1 × Slim Duct RAS-M07U2DVG-E 1 x RAS-M10U2DVG-E
Toshiba Air Conditioning RAS-2M18G3AVG-E Multi 1 × Slim Duct RAS-M07U2DVG-E 1 x RAS-M10U2DVG-E is listed for TieDex store sale under Toshiba Air Conditioning RAS Multi Room Heat Pump Inverter. The brand/vendor is Toshiba Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

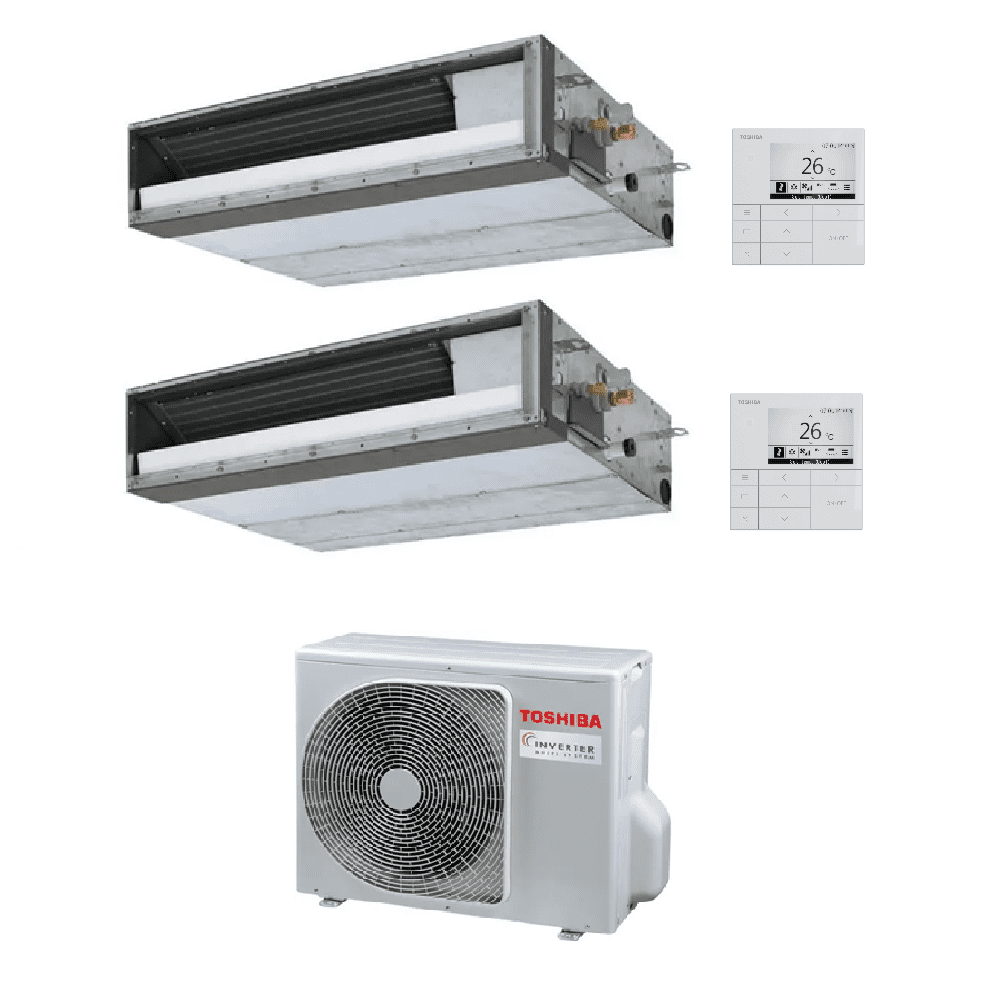

This Kit Includes: • Toshiba Outdoor Unit RAS-2M18G3AVG-E – 5.2kW Cooling / 6.8kW Heating • Toshiba Slim Duct Indoor Unit RAS-M07U2DVG-E – 2.0kW × 1 • Toshiba Slim Duct Indoor Unit RAS-M10U2DVG-E – 2.5kW × 1 • Toshiba Hard-Wired Controller RBC-AMSU52-E × 2 Flexible Dual-Zone Slim-Duct System for Discreet, High-Efficiency Comfort in Two Rooms This dual-room multi-split configuration combines the energy-efficient RAS-2M18G3AVG-E outdoor unit with a mixed pair of slim-duct indoor units — one 2.0kW RAS-M07U2DVG-E and one 2.5kW RAS-M10U2DVG-E. Designed for homes and small commercial spaces requiring discreet airflow distribution and varied room capacities, the system delivers balanced and reliable performance across both zones. Toshiba’s DC twin-rotary inverter compressor ensures exceptionally smooth modulation at partial load, reducing energy consumption, improving acoustic comfort and maintaining highly stable room temperatures. With R32 refrigerant and A++ efficiency potential, this configuration provides a
future-ready cooling and heating solution. Both slim-duct indoor units feature a compact 210mm height for installation in shallow ceiling voids, making them ideal for projects where visible wall units are not desirable. Adjustable static pressure (10–45 Pa) enables airflow through ducting to grilles or diffusers, supporting flexible design layouts and evenly spread air distribution. Quiet performance, washable filters and an accessible service layout ensure reliable day-to-day operation. Each room is equipped with the advanced Toshiba RBC-AMSU52-E hard-wired controller, providing intuitive temperature control, weekly scheduling functionality and enhanced diagnostics for long-term performance and comfort. Key Product Features: • Dual-room multi-split system with mixed capacities • Indoor units: 2.0kW (M07) and 2.5kW (M10) • Outdoor capacity: 5.2kW cooling / 6.8kW heating • Ultra-slim 210mm ducted chassis • External static pressure: 10–45 Pa • Quiet indoor sound levels: 35 / 27 dB(A) •
Airflow (M07): 158–106 l/s • Airflow (M10): 158–106 l/s • R32 refrigerant for lower environmental impact • Hidden installation suitable for premium interiors • Washable filters and easy maintenance access • Includes Toshiba RBC-AMSU52-E hard-wired controllers × 2 Technical Specifications: Outdoor Unit – RAS-2M18G3AVG-E • Cooling capacity: 5.2kW • Heating capacity: 6.8kW • SEER/SCOP: 8.70 – 4.80 (A+++ / A++) • Dimensions: 630 × 800 × 300 mm • Weight: 43kg • Sound pressure: 50 / 44 dB(A) • Airflow (High): 2600–722 m³/h • Refrigerant: R32 / 1.25kg • Max pipe length: 20/30 – 15 m • Flare connections: 3/8" – 1/4" × 2 • Power supply: 220–240V~50Hz • Interconnecting cable: (3C+E) Indoor Unit – RAS-M07U2DVG-E • Cooling: 2.0kW • Heating: 2.7kW • UK Cooling: 1.95 / 1.57kW • UK Heating: 1.60kW • Dimensions: 210 × 700 × 450 mm
• Sound pressure: 35 / 27 dB(A) • Airflow: 158–106 l/s • External static pressure: 10–45 Pa • Refrigerant piping: 3/8" – 1/4" • Controller: RBC-AMSU52-E Indoor Unit – RAS-M10U2DVG-E • Cooling: 2.5kW • Heating: 4.0kW • UK Cooling: 2.44 / 2.03kW • UK Heating: 2.50kW • Dimensions: 210 × 700 × 450 mm • Sound pressure: 35 / 27 dB(A) • Airflow: 158–106 l/s • External static pressure: 10–45 Pa • Refrigerant piping: 3/8" – 1/4" • Controller: RBC-AMSU52-E Performance Table: Unit A Unit B Capacity A (kW) Capacity B (kW) Cooling Min (kW) Cooling Nom (kW) Cooling Max (kW) Power Input Min (W) Power Input Nom (W) Power Input Max (W) Operating Current Nom (A) Pdc SEER Class EER 07 10 2.00 2.50 1.60 4.5 6.40 270 880 1680 4.09 4.0 8.00 A++ 4.55 These air conditioning units
must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Toshiba Air Conditioning
- Product SKU: RAS-2M18G3AVG-E-1-RAS-M07U2DVG-E-1-RAS-M10U2DVG-E
- MPN / Model: RAS-2M18G3AVG-E-1-RAS-M07U2DVG-E-1-RAS-M10U2DVG-E
- Category: Toshiba Air Conditioning RAS Multi Room Heat Pump Inverter
- Parent Category: Toshiba Air Conditioning
- Condition: New
- Availability: InStock
