Toshiba Air Conditioning RAS-2M18G3AVG-E Multi 1 × Slim Duct RAS-M07U2DVG-E 1 x RAS-M13U2DVG-E
Toshiba Air Conditioning RAS-2M18G3AVG-E Multi 1 × Slim Duct RAS-M07U2DVG-E 1 x RAS-M13U2DVG-E is listed for TieDex store sale under Toshiba Air Conditioning RAS Multi Room Heat Pump Inverter. The brand/vendor is Toshiba Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

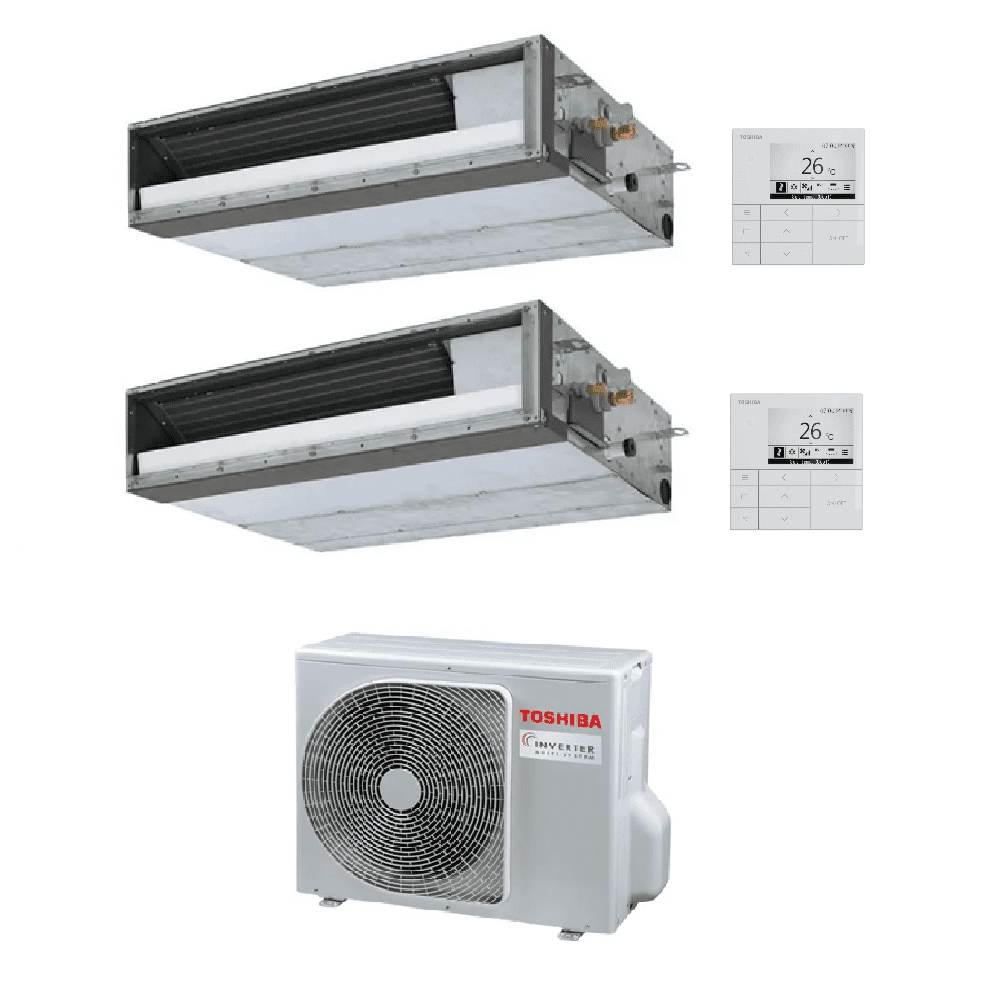

This Kit Includes: • Toshiba Outdoor Unit RAS-2M18G3AVG-E – 5.2kW Cooling / 6.8kW Heating • Toshiba Slim Duct Indoor Unit RAS-M07U2DVG-E – 2.0kW × 1 • Toshiba Slim Duct Indoor Unit RAS-M13U2DVG-E – 3.7kW × 1 • Toshiba Hard-Wired Controller RBC-AMSU52-E × 2 Quiet, Concealed Dual-Room Climate Control Designed for Low-Profile Installations This versatile dual-room multi-split system pairs the RAS-2M18G3AVG-E outdoor unit with two slim-duct indoor units of different capacities, making it ideal for homes or commercial projects requiring concealed installation and flexible zoning. The outdoor unit uses Toshiba’s DC twin-rotary inverter compressor, enabling exceptionally smooth modulation, low vibration and highly efficient performance during partial-load operation — the condition in which most real buildings operate. With R32 refrigerant, an A+++ SEER potential and quiet outdoor operation down to 44 dB(A), the system delivers premium comfort with reduced environmental impact and
long-term operating efficiency. The RAS-M07U2DVG-E serves smaller rooms with a compact 2.0kW output, while the higher-capacity 3.7kW RAS-M13U2DVG-E supports medium-sized areas requiring stronger airflow. Both indoor units feature a shallow 210mm chassis height for installation in tight ceiling voids, adjustable external static pressure (10–45 Pa) for duct routing, quiet sound levels from 35 dB(A), and washable filters for easy maintenance. Each indoor unit is paired with the RBC-AMSU52-E hard-wired controller, offering precise temperature adjustment, advanced scheduling, and enhanced diagnostic capability. This combination provides architects, installers and end-users with a discreet, reliable and energy-efficient comfort solution. Key Product Features: • Mixed-capacity dual-zone slim-duct system • Indoor units: 2.0kW (M07) + 3.7kW (M13) • Outdoor capacity: 5.2kW cooling / 6.8kW heating • Ultra-slim 210mm chassis depth • External static pressure: 10–45 Pa • Quiet indoor sound levels from 35 dB(A) • R32
refrigerant for reduced environmental impact • Washable long-life filters • Low-profile concealed installation • Compatible with ceiling grilles or duct diffuser layouts • Includes Toshiba RBC-AMSU52-E controllers × 2 Technical Specifications: Outdoor Unit – RAS-2M18G3AVG-E • Cooling capacity: 5.2kW • Heating capacity: 6.8kW • SEER/SCOP: 8.70 – 4.80 (A+++ / A++) • Dimensions: 630 × 800 × 300 mm • Weight: 43kg • Sound pressure: 50 / 44 dB(A) • Airflow (High): 2600–722 m³/h • Refrigerant: R32 / 1.25kg • Max pipe length: 20/30 – 15 m • Flare connections: 3/8" – 1/4" × 2 • Power supply: 220–240V~50Hz • Interconnecting cable: (3C+E) Indoor Unit – RAS-M07U2DVG-E • Cooling: 2.0kW • Heating: 2.7kW • UK Cooling: 1.95 / 1.57kW • UK Heating: 1.60kW • Dimensions: 210 × 700 × 450 mm • Sound pressure: 35 / 27 dB(A) • Airflow:
158–106 l/s • External static pressure: 10–45 Pa • Refrigerant piping: 3/8" – 1/4" • Controller: RBC-AMSU52-E Indoor Unit – RAS-M13U2DVG-E • Cooling: 3.7kW • Heating: 5.0kW • UK Cooling: 3.22 / 2.49kW • UK Heating: 2.20kW • Dimensions: 210 × 700 × 450 mm • Sound pressure: 37 / 27 dB(A) • Airflow: 169–107 l/s • External static pressure: 10–45 Pa • Refrigerant piping: 3/8" – 1/4" • Controller: RBC-AMSU52-E Performance Table: Unit A Unit B Capacity A (kW) Capacity B (kW) Cooling Min (kW) Cooling Nom (kW) Cooling Max (kW) Power Input Min (W) Power Input Nom (W) Power Input Max (W) Operating Current Nom (A) Pdc SEER Class EER 13 07 3.31 1.89 1.60 5.20 6.50 270 1290 2100 5.93 5.20 7.80 A++ 4.03 These air conditioning units must be installed by an F-Gas qualified engineer. We
can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Toshiba Air Conditioning
- Product SKU: RAS-2M18G3AVG-E-1-RAS-M07U2DVG-E-1-RAS-M13U2DVG-E
- MPN / Model: RAS-2M18G3AVG-E-1-RAS-M07U2DVG-E-1-RAS-M13U2DVG-E
- Category: Toshiba Air Conditioning RAS Multi Room Heat Pump Inverter
- Parent Category: Toshiba Air Conditioning
- Condition: New
- Availability: InStock
