Toshiba Air Conditioning RAS-4M27G3AVG-E Multi-Split 4 × Seiya Wall Mounted RAS-B13S4KVG-E 3.5Kw A++
Toshiba Air Conditioning RAS-4M27G3AVG-E Multi-Split 4 × Seiya Wall Mounted RAS-B13S4KVG-E 3.5Kw A++ is listed for TieDex store sale under Toshiba Air Conditioning RAS Multi Room Heat Pump Inverter. The brand/vendor is Toshiba Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

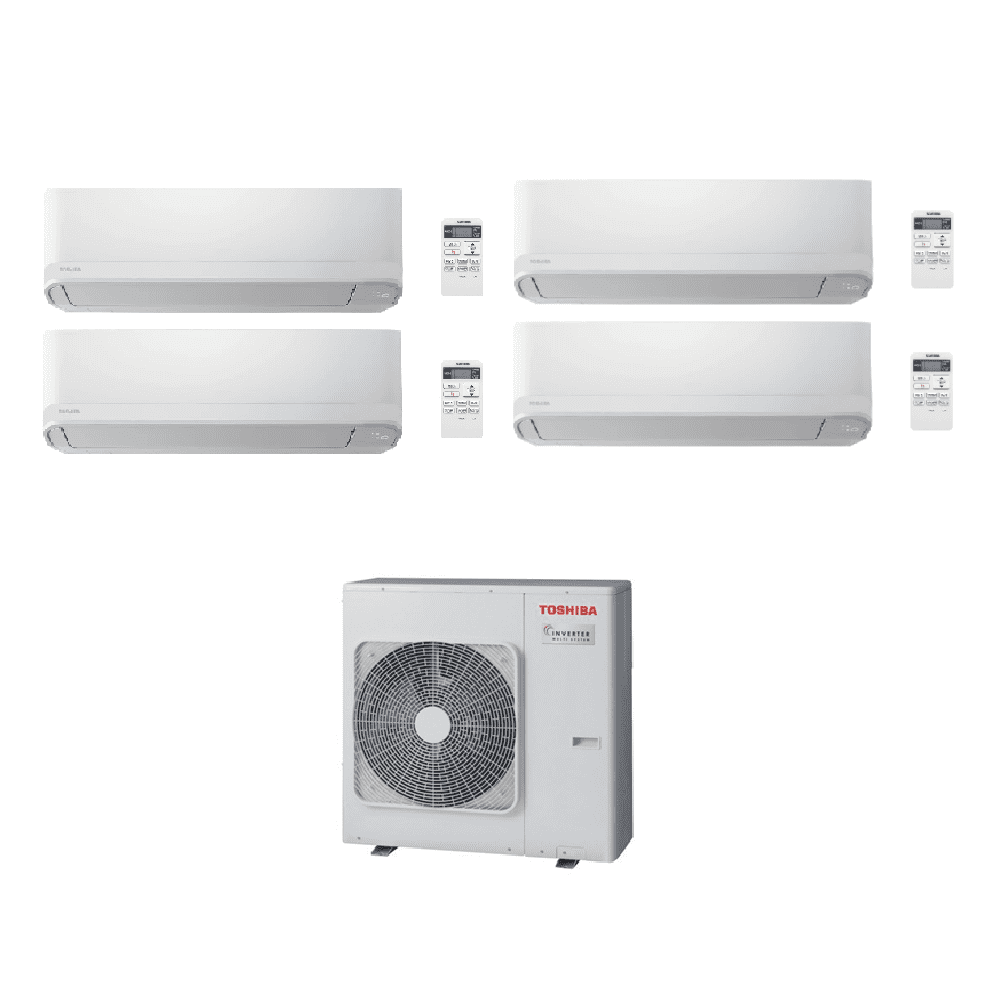

This Kit Includes: • 1 × Toshiba RAS-4M27G3AVG-E Outdoor Multi-Split Inverter Unit • 4 × Toshiba SEIYA RAS-B13S4KVG-E Indoor Wall-Mounted Units (3.5kW each) • 4 × Toshiba WH-UC01NE Standard Wireless Remote Controllers Powerful Multi-Room Cooling & Heating with High-Output 3.5kW SEIYA Units: This four-room Toshiba multi-split configuration pairs the robust RAS-4M27G3AVG-E outdoor inverter with four high-output 3.5kW SEIYA RAS-B13S4KVG-E indoor units. Perfect for medium to large bedrooms, lounges, open-plan areas and commercial rooms, this configuration ensures efficient, reliable and quiet year-round climate control for demanding spaces. The outdoor unit features Toshiba’s advanced Hybrid DC Inverter and twin-rotary compressor technology, ensuring low vibration, strong part-load performance and excellent long-term durability. The 3.5kW SEIYA indoor units deliver whisper-quiet comfort, ECO mode efficiency, powerful airflow distribution and advanced air filtration, making them ideal for both residential and professional environments. With R32 refrigerant, flexible
installation options and independent control for each room, this multisplit solution delivers premium, energy-efficient performance across four zones. Key Product Features: • Four-room multisplit system with powerful 3.5kW SEIYA indoor heads • Ideal for medium to large rooms requiring strong cooling and heating • A++ seasonal cooling performance for reduced running costs • Hybrid DC Inverter for smooth, efficient and stable operation • Whisper-quiet SEIYA operation with silent comfort mode • Heat pump technology provides cooling in summer and heating in winter • ECO mode for optimised energy efficiency • Advanced filtration improves indoor air cleanliness • Independent room temperature and mode control • Compact high-capacity outdoor inverter unit Technical Specifications: Outdoor Unit – RAS-4M27G3AVG-E • Cooling Capacity: 8.0 kW • Heating Capacity: 9.0 kW • SEER / SCOP: 8.30 / 4.50 • Energy Rating: A++ / A+ / A+
• Sound Pressure Level: 54 / 45 dB(A) • Outdoor Airflow: 3700–1028 m³/h • Power Supply: 220–240V, 1Ph, 50Hz • Dimensions (HxWxD): 890 × 900 × 320 mm • Weight: 68 kg • Refrigerant: R32 / 2.05 kg • Max Pipe Length: 25 m per room / 70 m total • Max Height Difference: 15 m • Pipe Connections: 3/8" × 1/2" × 2 + 1/4" × 2 Indoor Units – RAS-B13S4KVG-E (×4) • Cooling Capacity: 3.5 kW • Heating Capacity: 3.6 kW • UK Cooling Total/Sensible: 3.22 / 2.49 kW • SEER / SCOP: 7.00 / 4.60 • Noise Level: 19–42 dB(A) • Airflow: 228–870 m³/h • Dimensions: 293 × 798 × 230 mm • Weight: 10 kg • Controller: WH-UC01NE Wireless Remote • Refrigerant: R32 Combination Table: Comb A Comb B Comb C Comb D Cap A (kW)
Cap B (kW) Cap C (kW) Cap D (kW) Cool Min (kW) Cool Nom (kW) Cool Max (kW) Power Min (W) Power Nom (W) Power Max (W) Current (A) Pdc SEER Class EER Nom 13 13 13 13 2.00 2.00 2.00 2.00 2.0 8.0 10.0 350 1900 2900 8.63 8.0 8.30 A++ 4.21 These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Toshiba Air Conditioning
- Product SKU: RAS-4M27G3AVG-E-4-RAS-B13S4KVG-E B13S4-1-KVG-E-1-B10S4KVG-E
- MPN / Model: RAS-4M27G3AVG-E-4-RAS-B13S4KVG-E B13S4-1-KVG-E-1-B10S4KVG-E
- Category: Toshiba Air Conditioning RAS Multi Room Heat Pump Inverter
- Parent Category: Toshiba Air Conditioning
- Condition: New
- Availability: InStock
