Toshiba Air Conditioning RAV-GP1101AT8-E 2 x RAV-HM561KRTP-E Twin Wall Split Heat Pump 10Kw 3Ph

Toshiba Air Conditioning RAV-GP1101AT8-E 2 x RAV-HM561KRTP-E Twin Wall Split Heat Pump 10Kw 3Ph

Toshiba Air Conditioning RAV-GP1101AT8-E 2 x RAV-HM561KRTP-E Twin Wall Split Heat Pump 10Kw 3Ph is listed for TieDex store sale under Toshiba Air Conditioning RAS Wall Mounted Digital Heat Pump Inverter 1Ph and 3Ph. The brand/vendor is Toshiba Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.

Product Overview

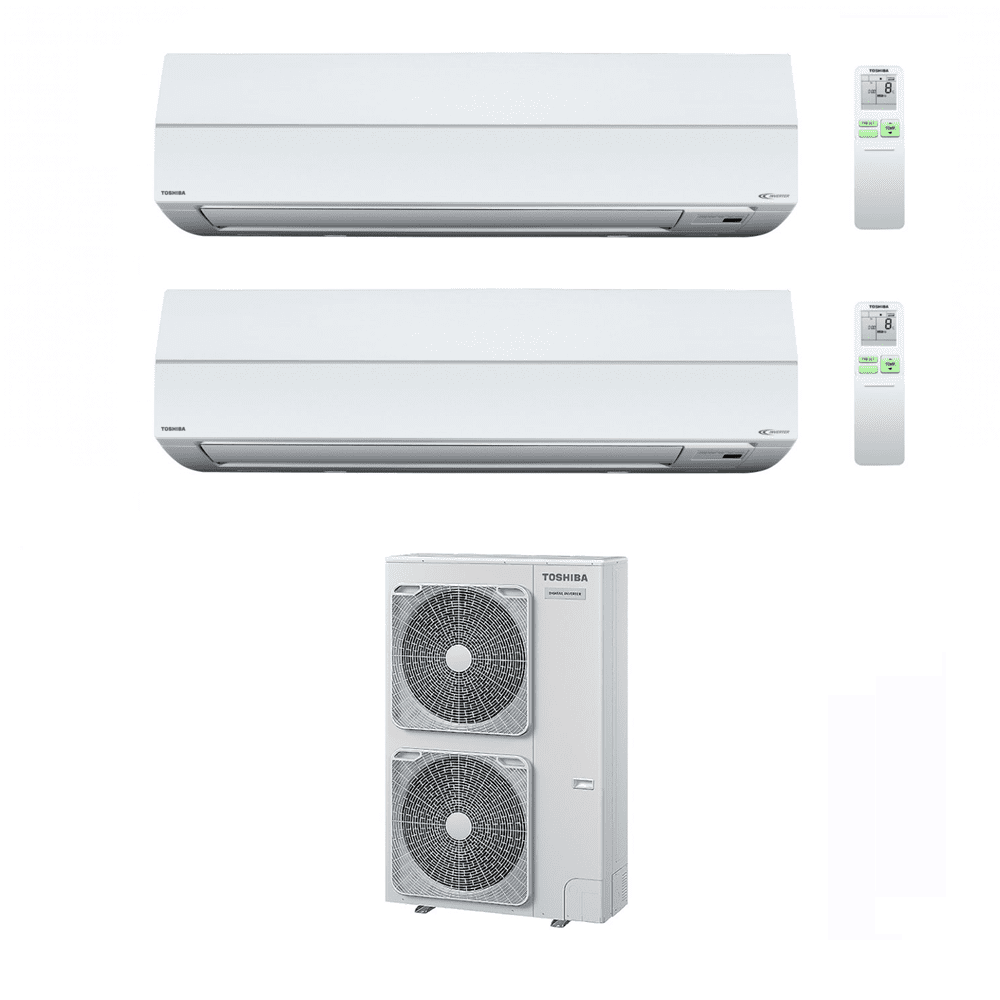

This Kit Includes: 2 × Toshiba RAV-HM561KRTP-E Digital Inverter High-Wall Indoor Units 220–240V~50Hz 1 × Toshiba RAV-GP1101AT8-E Digital Inverter Outdoor Heat Pump Unit 380–415V~50Hz 3Ph 1 × Toshiba RBC-AMSU52-E Hard-Wired Controller Standard wireless remote controllers included (WH-TA09NE) High-Capacity Twin-Split High-Wall System for Large Commercial Spaces : The Toshiba RAV-HM561KRTP-E Twin-Split High-Wall system is a powerful commercial climate-control solution designed for large offices, retail spaces, hospitality areas, classrooms, server rooms and high-demand environments. Using two 5.0 kW indoor units paired with the heavy-duty RAV-GP1101AT8-E outdoor inverter system, this configuration delivers outstanding cooling and heating output across two separate indoor zones while operating from a single outdoor unit, ideal where external space is limited or where twin indoor coverage is required. Each RAV-HM561KRTP-E unit features Toshiba’s Digital Inverter technology for fast pull-down, efficient modulation, reduced energy consumption and stable temperature maintenance. Airflow

performance reaches up to 267 l/s per unit, ensuring balanced distribution across larger rooms or dual-room applications. Operating noise levels remain low at 42 dB(A) on high mode and just 35 dB(A) on low, making the system suitable for noise-sensitive offices or commercial environments. The outdoor heat-pump system provides a substantial 9.5 kW cooling and 11.2 kW heating capacity, delivering A++/A+ seasonal efficiency with a tough multi-stage inverter compressor. With long pipe-run flexibility up to 30 m and height differences up to 30 m, this system is suitable for complex installations and refurbishment projects. This twin-split package includes both wireless controllers and a centralised hard-wired RBC-AMSU52-E controller for direct commercial integration. Designed for reliability, efficiency and premium performance, it is one of Toshiba’s strongest high-wall commercial configurations. Key Product Features: • Twin-split configuration: two indoor units on one outdoor •

Large-capacity 5.0 kW indoor units with strong airflow • Digital Inverter efficiency with A++ cooling / A+ heating • Quiet indoor operation: 42 / 39 / 35 dB(A) • High-performance outdoor unit: 9.5 kW cooling / 11.2 kW heating • Long pipe-run capability: 30 m • Self-cleaning coil function to reduce maintenance • Enhanced filtration for improved air quality • Wireless controllers included + wired commercial controller • Ideal for medium-large offices, shops, hospitality and open-plan environments Technical Specifications (Indoor Unit – RAV-HM561KRTP-E): Cooling / Heating: 5.0 kW / 5.3 kW UK Total/Sensible Cooling: 4.75 / 3.61 kW UK Heating: 3.79 kW Energy Label: A++ Cooling / A+ Heating Indoor Dimensions (H×W×D): 320 × 1050 × 250 mm Indoor Airflow (H–M–L): 267 – 231 – 189 l/s Sound Pressure (ID): 42 – 39 – 35 dB(A) Power Supply: 220–240V /

1Ph / 50Hz Interconnecting Cable: (3C+E) Pipe Connections (liquid/gas): 1/2″ – 1/4″ Max Pipe Length: 30 m Max Height Difference: 30 m Charge-Free Length: 20 m Refrigerant Additional Charge: R32 / 1.3 kg / 35–20 g/m Technical Specifications (Outdoor Unit – RAV-GP1101AT8-E): Cooling / Heating: 9.5 kW / 11.2 kW UK Cooling Total/Sensible: 9.28 / 7.22 kW UK Heating: 6.93 kW Energy Label: A++ Cooling / A+ Heating Outdoor Dimensions (H×W×D): 1340 × 900 × 320 mm Outdoor Airflow (High): 4080 m³/h (≈1133 l/s) Sound Pressure (OD): 54 / 57 dB(A) Power Supply: 380–415V / 3Ph / 50Hz Pipe Connections (liquid/gas): 5/8″ – 3/8″ Refrigerant Charge: R32 / 2.6 kg total Options: Model Description Price RBC-AX31U(W)-E Wireless Receiver Kit for 4-Way Cassette £191 RBC-AX33UYP-E Wireless Receiver Kit for 1-Way Cassette £57 RBC-AX31U-E Wireless Remote Controller Kit – Ceiling £211 RBC-AX31UMP-E

Wireless Remote Controller Kit – Others (Exclude High Static Ducted) £317 RBC-AX31U1-E Wireless Receiver Kit for 4-Way Cassette £225 RBC-AX31UME-E Wireless Receiver Kit for Compact Cassette £141 RBC-AX31U4WE-E Wireless Remote Controller Kit for 2-Way Cassette £142 RBC-AX31U3MP-E Wireless Remote Controller Kit for Compact 4-Way White £185 RBC-AX31U3MPB-E Wireless Remote Controller Kit for Compact 4-Way Black £185 RBC-AX33U4PE-E Wireless Receiver Kit for 4-Way Cassette (MMU-UP, 1HP-E & RAV-HM, 1UP-E) £185 RBC-AX41U-E Wireless Receiver Kit for 4-Way Cassette £225 RBC-AXU33UPB-E Wireless Remote Controller Kit (IR receiver + handset), Black £173 Model Description Price RBC-AS41E Simplified Remote Controller £106 RBC-ASCU11-E Compact Remote Controller £76 RBC-ASCU32YP-E Compact Remote Controller £81 RBC-AMT32E Standard Remote Controller £126 RBC-AMT32E2 Standard Remote Controller £126 RBC-AMT54E Standard Remote Controller C/W 24/7 Schedule Timer £173 RBC-AMT52E Premium Remote Controller C/W 24/7 Schedule Timer £173 RBC-AMT52U-E Premium Remote Controller C/W 24/7

Schedule Timer + Bluetooth £157 RBC-MTSC1 Mini Touch Screen Controller £272 RBC-MTSC2 Mini Touch Screen Controller C/W Schedule Timer £272 Model Description Price BMS-CT1280E Touch Screen Controller £4,189 BMS-CT2560U-E 256 Touch Screen Controller (Multi-Language) £6,143 BMS-CT5121E Touch Screen Controller £8,733 RBC-BP2 Black Pear BMS Controller £5,233 RBC-BP1 Black Pear Controller For BACnet £4,254 RBC-BPM1 Black Pear Controller For Modbus £4,254 These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.

Key Details

• Brand / Vendor: Toshiba Air Conditioning
• Product SKU: RAV-GP1101AT8-E 2 x RAV-HM561KRTP-E
• MPN / Model: RAV-GP1101AT8-E 2 x RAV-HM561KRTP-E
• Category: Toshiba Air Conditioning RAS Wall Mounted Digital Heat Pump Inverter 1Ph and 3Ph
• Parent Category: Toshiba Air Conditioning RAS High-Wall Inverter Heat Pump Split
• Condition: New
• Availability: InStock
