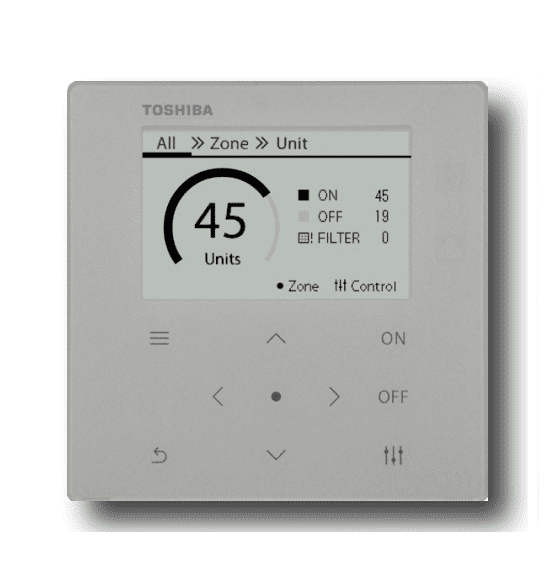

Toshiba Air Conditioning TCB-SC640U Standard Central Hard Wired Remote Controller
Toshiba Air Conditioning TCB-SC640U Standard Central Hard Wired Remote Controller is listed for TieDex store sale under Toshiba Air Conditioning Remote Controllers. The brand/vendor is Toshiba Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
The Toshiba TCB-SC640U is a premium 64-way central control device designed for sophisticated management of Toshiba DI, SDI and VRF indoor units (excluding DI Flexi). Engineered for centralised HVAC control across multi-zone commercial environments, this controller enables individual, grouped and full-system management with advanced scheduling, zoning, permission control and connectivity options. Its intuitive interface and powerful network capability make it ideal for offices, hotels, schools, retail spaces, and modular commercial buildings requiring streamlined and reliable air conditioning control. Why Choose the Toshiba TCB-SC640U Standard Central Controller?: This versatile controller allows comprehensive control of up to 64 indoor units and multiple refrigerant systems within the same TCC / TU2C-link network. Featuring built-in scheduling, 10 fixed controllable zones, and 4-level permit/prohibit functions, it provides exceptional flexibility for site managers and building engineers. The device can be part of a wider system of
up to 10–20 networked central controllers, ensuring full scalability across larger commercial installations. Key Product Features: 64-Unit Control Capability: Supports control of up to 64 indoor units across multiple refrigerant systems. Built-In Schedule Timer: Supports robust, programmable scheduling without requiring additional devices. 10-Zone Classification: Provides 10 fixed controllable zones with enable/disable settings via central control. 4-Pattern Permit/Prohibit System: Restricts or allows specific local controller functions for better energy and usage management. Network Scalability: Up to 10 central controllers can run on a single TCC-link network; extended to 20 controllers when using TU2C. Digital I/O Connections: Provides external input/output terminals for on/off control integration and alarm status output. Flexible Indoor Unit Control: Controls rooms individually, by zone, or as a complete system. Clear Display Interface: User-friendly LCD layout for quick monitoring of ON/OFF/FILTER status. Technical Specifications: Specification Details Model TCB-SC640U Control
Capacity Up to 64 indoor units Zone Control 10 fixed controllable zones Permit/Prohibit Levels 4 patterns Network Compatibility TCC-link and TU2C-link Max Number of Controllers per Network 10 units (TCC), 20 units (TU2C) Schedule Timer Integrated External I/O Digital input/output for on-off control and alarm output Display LCD with system/zone/unit status Control Modes Individual, zone-based, or full-system Applications Commercial, mixed-use, office buildings, schools, hotels
Key Details
- Brand / Vendor: Toshiba Air Conditioning
- Product SKU: TCB-SC640U
- MPN / Model: TCB-SC640U
- Category: Toshiba Air Conditioning Remote Controllers
- Parent Category: Air Conditioning Remote Controllers Replacement
- Condition: New
- Availability: InStock
