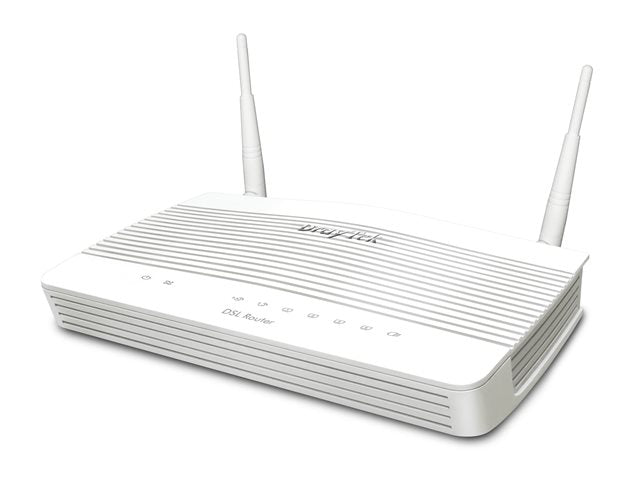

TieDex UK Draytek Vigor 2763ac - wireless router - DSL modem - Wi-Fi 5 - desktop, wall-mountable
Regular price
£318.25
£318.25
Regular price
Sale price
£318.25
£318.25
Save <span class=money>£-318.25</span>
/
- Free UK Mainland Delivery & Returns
- Ship From UK
- Carbon neutral
- Secure payments
- In stock, ready to ship
- Backordered, shipping soon
Draytek Vigor 2763ac - Wireless router - DSL modem 4-port switch - 1GbE, PPP - WAN ports: 2 - Wi-Fi 5 - Dual Band - wall-mountable
Basic Specifications
- Manufacturer's Part Number
- V2763AC-K
- EAN
- 4710484745347
- Manufacturer Warranty
- 2-year warranty
- Weight
- 450 g
- Product Description
- Draytek Vigor 2763ac - wireless router - DSL modem - Wi-Fi 5 - desktop, wall-mountable
- Model
- Draytek Vigor 2763ac
- Dimensions (WxDxH)
- 20.7 cm x 13.1 cm x 4.2 cm
- Localisation
- United Kingdom, Ireland
- Features
- IGMP snooping, DoS attack prevention, content filtering, port mirroring, E-mail alert, LAN-to-LAN bridging, WMM support, file sharing, TFTP support, ACL support, QoS, DPD, IPSec NAT-T, SMS alert, reset button, DNS server, port triggering, 3G/4G USB Dongle Support, TxBF ready, dual-stream (2x2), IGMP proxy, 802.1x authentication, ToS, automated backup scheduling, MU-MIMO technology, fast leave, Inter-VLAN Routing, L2TP over IPSec, black list, white list, DSCP based ToS, wireless access control, DNSSEC support, PPP, IPTV support, EAPOL, OpenVPN pass-through, Brute Force Protection, SIP ALG, DrayDDNS, WAN Budget, Wi-Fi on/off button, DSL mode, USB backup, ping detect, ARP detect, dynamic DNS, Full Feature-set Hardware Acceleration, 2-Level Administration Privilege, Teleworker-to-LAN bridging, ISP Video support, NAT port redirection, DMZ host, spoofing defence, user-based Time Quota, IP-based Firewall Policy
- Power
- AC 100-240 V / DC 12 V
- Device Type
- Wireless router - DSL modem - 4-port switch (integrated)
- Compliant Standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, X.509, IEEE 802.11n, UPnP, ITU-T G.993.1, ITU-T G.993.2, ITU-T G.997.1, IEEE 802.11ac Wave 2
- Capacity
- Priority QoS queues: 4 ¦ Concurrent VPN tunnels: 2 ¦ NAT sessions: 50000 ¦ DHCP pool: 253 ¦ SSIDs per radio: 4 ¦ VLANs supported: 8
- Performance
- VPN throughput (256-bit AES IPSec): 200 Mbps ¦ VPN throughput (SSL): 80 Mbps ¦ NAT throughput: 700 Mbps ¦ NAT throughput (with VDSL2): 100 Mbps ¦ NAT throughput with hardware acceleration: 950 Mbps ¦ NAT throughput without hardware acceleration: 700 Mbps ¦ Maximum data rate (2.4 GHz): 400 Mbps ¦ Maximum data rate (5 GHz): 866 Mbps
- Frequency Band
- 2.4 GHz / 5 GHz
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Enclosure Type
- Desktop, wall-mountable
- Routing Protocol
- MPOA, static IPv4 routing, static IPv6 routing
- Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, PPPoA, AAL5, FTP, DHCP, Bonjour, DHCPv6, RTSP, IPv4, IPv6
- WAN Ports Qty
- 2
- VoIP Protocols
- H.323, SIP
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, TR-069, Syslog
- Digital Signaling Protocol
- H.323, ADSL, SIP, ADSL2, ADSL2+, VDSL2
General
- Device Type
- Wireless router - 4-port switch (integrated)
- Enclosure Type
- Desktop, wall-mountable
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Frequency Band
- 2.4 GHz / 5 GHz
- Performance
- VPN throughput (256-bit AES IPSec): 200 Mbps ¦ VPN throughput (SSL): 80 Mbps ¦ NAT throughput: 700 Mbps ¦ NAT throughput (with VDSL2): 100 Mbps ¦ NAT throughput with hardware acceleration: 950 Mbps ¦ NAT throughput without hardware acceleration: 700 Mbps ¦ Maximum data rate (2.4 GHz): 400 Mbps ¦ Maximum data rate (5 GHz): 866 Mbps
- Capacity
- Priority QoS queues: 4 ¦ Concurrent VPN tunnels: 2 ¦ NAT sessions: 50000 ¦ DHCP pool: 253 ¦ SSIDs per radio: 4 ¦ VLANs supported: 8
- Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, PPPoA, AAL5, FTP, DHCP, Bonjour, DHCPv6, RTSP, IPv4, IPv6
- Routing Protocol
- MPOA, static IPv4 routing, static IPv6 routing
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, TR-069, Syslog
- Encryption Algorithm
- DES, Triple DES, MPPE, SHA-1, WPA, WPA2, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, WEP, WPS, WPA3, IKEv1, SHA-256
- Authentication Method
- RADIUS, internal user database, Mobile One Time Password (mOTP)
- Wi-Fi Rating
- AC1300
- Features
- IGMP snooping, DoS attack prevention, content filtering, port mirroring, E-mail alert, LAN-to-LAN bridging, WMM support, file sharing, TFTP support, ACL support, QoS, DPD, IPSec NAT-T, SMS alert, reset button, DNS server, port triggering, 3G/4G USB Dongle Support, TxBF ready, dual-stream (2x2), IGMP proxy, 802.1x authentication, ToS, automated backup scheduling, MU-MIMO technology, fast leave, Inter-VLAN Routing, L2TP over IPSec, black list, white list, DSCP based ToS, wireless access control, DNSSEC support, PPP, IPTV support, EAPOL, OpenVPN pass-through, Brute Force Protection, SIP ALG, DrayDDNS, WAN Budget, Wi-Fi on/off button, DSL mode, USB backup, ping detect, ARP detect, dynamic DNS, Full Feature-set Hardware Acceleration, 2-Level Administration Privilege, Teleworker-to-LAN bridging, ISP Video support, NAT port redirection, DMZ host, spoofing defence, user-based Time Quota, IP-based Firewall Policy
- Compliant Standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, X.509, IEEE 802.11n, UPnP, ITU-T G.993.1, ITU-T G.993.2, ITU-T G.997.1, IEEE 802.11ac Wave 2, TOTP
- Built-in Devices
- Led panel
- Status Indicators
- WAN, LAN, USB, 5 GHz, 2.4 GHz, QoS
Communications
- Type
- DSL modem
- Digital Signaling Protocol
- H.323, ADSL, SIP, ADSL2, ADSL2+, VDSL2
- Protocols & Specifications
- ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.992.5 Annex M, ITU G.992.3 Annex M, ITU G.992.5 Annex J, ITU G.992.3 Annex J
- Max Transfer Rate
- 300 Mbps
Dimensions & Weight
- Width
- 20.7 cm
- Depth
- 13.1 cm
- Height
- 4.2 cm
- Weight
- 450 g
Miscellaneous
- Included Accessories
- 2 x WiFi aerials
- Cables Included
- 1 x network cable - 2 m
- Mounting Kit
- Included
- Localisation
- United Kingdom, Ireland
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Expansion / Connectivity
- Interfaces
- LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x VDSL2 / ADSL2+ - RJ-11 ¦ USB 2.0: 2 x 4 pin USB Type A ¦ Antenna: 2 x
Power
- Power Device
- External power adapter
- Voltage Required
- AC 100-240 V / DC 12 V
- Power Consumption Operational
- 21 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
Software / System Requirements
- OS Provided
- No operating system
Aerial
- Aerial
- External detachable
- Antenna Qty
- 2
Line Properties
- Framing Format
- ANSI T1.413i2
IP Telephony
- VoIP Protocols
- H.323, SIP
