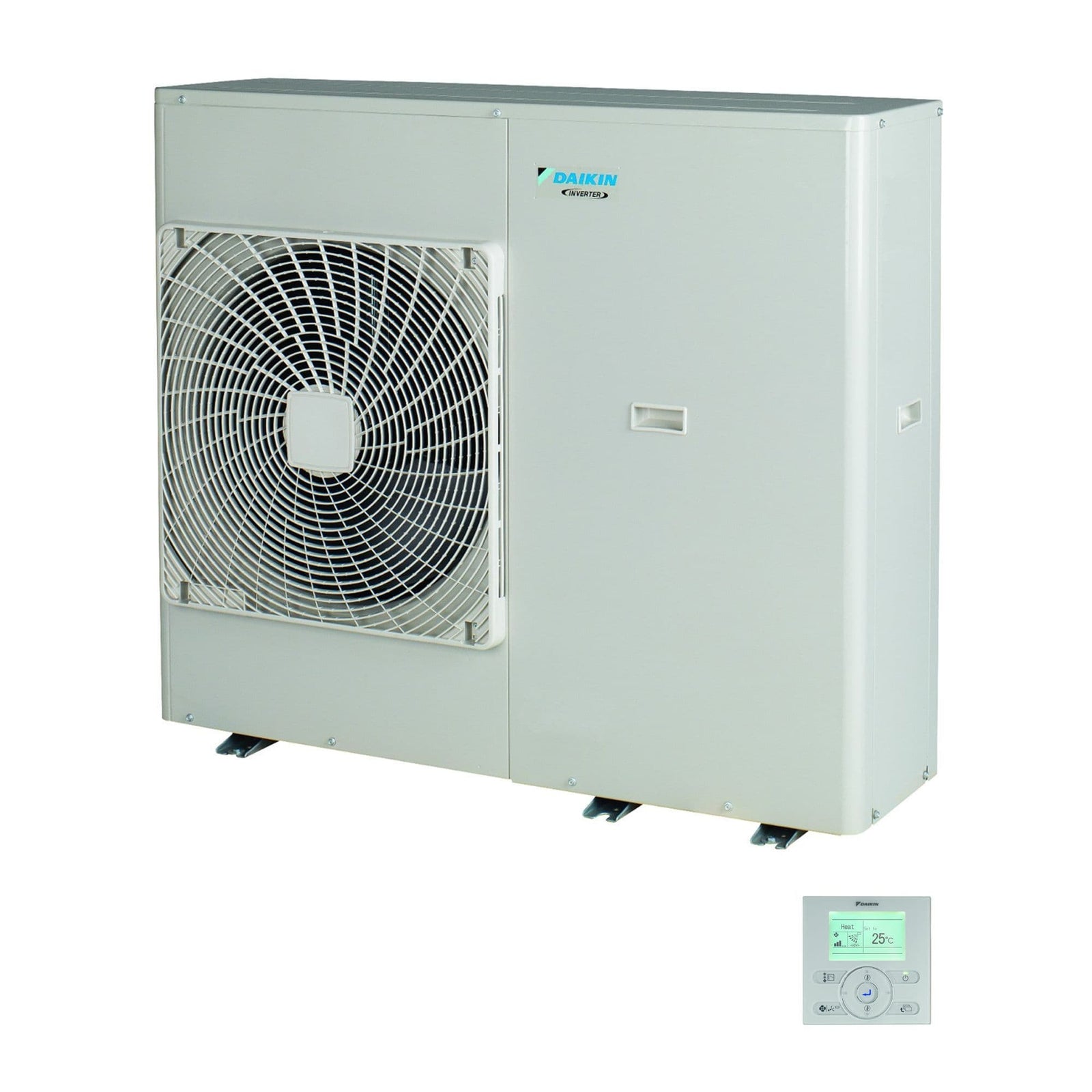

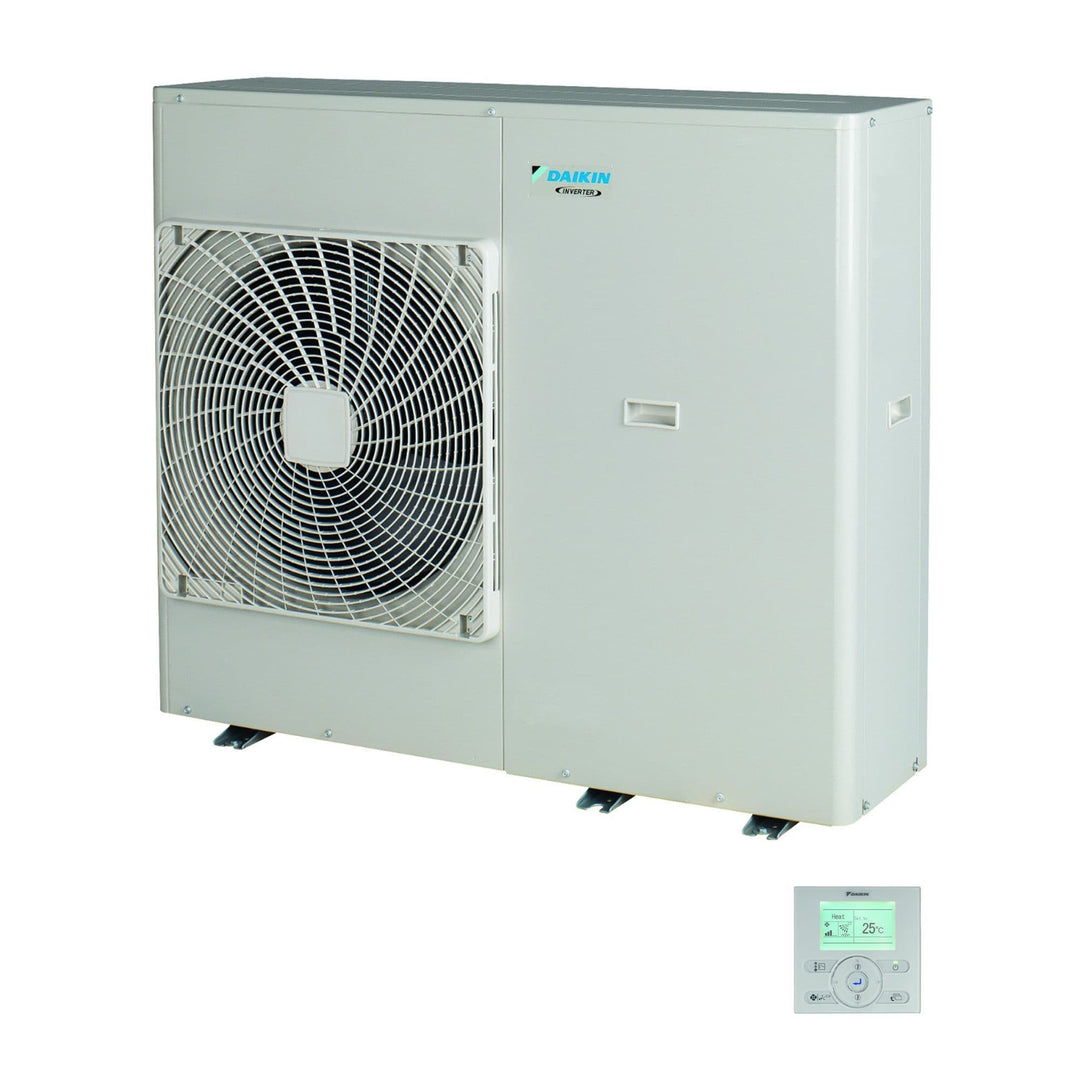

Daikin Air Conditioning Daikin Applied EWAQ006BAVP Air Cooled Mini Inverter Water Chiller 6Kw/19000Btu 240V~50Hz
Daikin Air Conditioning Daikin Applied EWAQ006BAVP Air Cooled Mini Inverter Water Chiller 6Kw/19000Btu 240V~50Hz is listed for TieDex store sale under Daikin Applied Air Cooled Mini Inverter Water Chiller. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
Daikin mini chillers are equipped with an inverter swing or scroll compressor allowing a smooth, more reliable and energy-efficient operation with low noise levels and leader-of-class ESEER. Ideal for residential or light commercial applications. Top product in terms of energy efficiency and operation range. All capacities available in 2 versions: standard version and version with OP10 option (no freeze up of water when not in operation thanks to the water piping heater tape) Easy ‚plug and play‘ installation, amongst the most quiet units in the market (63dBA - sound power). Single phase power supply and low starting currents. Weight reduced with 20% compared with the previous models. Built-in Hydraulic kit: no buffer tank required, standard inverter driven pump, main flow sensor and switch included. Standard wired remote control enables setting of different set points (cooling, heating, water leaving temperature) or
based on outdoor conditions (weather dependent control). It has an alarm history, night time noise reduction function and is language based. Key Product Data: Simple installations No F-gas qualification needed for installation In-built weather compensation control Daikin inverter technology Technical data: EWAQ006BAVP Cooling capacity Nom. kW 5.88 (1), 6.07 (2) Capacity control Method Variable (inverter) Power input Cooling Nom. kW 1.87 (1), 1.13 (2) EER 3.15 (1), 5.35 (2) ESEER 5.25 (5) Dimensions Unit Depth mm 380 Height mm 997 Width mm 1,160 Weight Unit kg 106 Water heat exchanger Type Brazed plate Water flow rate Min. l/min 13 Water volume l 2 Air heat exchanger Type Cross fin coil/Hi-X tubes and PE coated waffle louvre fins Hydraulic components Expansion vessel Volume l 7 Fan Air flow rate Cooling Nom. m³/min 72 (1) Compressor Quantity 1 Type Hermetically sealed swing
compressor Starting method Inverter driven Operation range Air side Cooling Max. °CDB 10 Water side Cooling Max. °CDB 5 Sound power level Cooling Nom. dBA 69 (1) Sound pressure level Cooling Nom. dBA 52 (10) Night quiet mode Cooling dBA 43 (10) Refrigerant Type R-410A GWP 2,087.5 Circuits Quantity 1 Control Electronic expansion valve Charge Per circuit kg 2.70 Per circuit TCO2Eq 5.6 Water circuit Air purge valve Yes (Manually) Drain valve / fill valve Yes Manometer No Minimum water volume in the system l 20 Piping connections diameter inch 1" MBSP Shut off valve Yes Power supply Phase 1N~ Frequency Hz 50 Voltage V 230 Notes Cooling: entering evaporator water temp. 12°C; leaving evaporator water temp. 7°C; ambient air temp.
Key Details
- Brand / Vendor: Daikin Air Conditioning
- Product SKU: EWAQ006BAVP
- MPN / Model: EWAQ006BAVP
- Category: Daikin Applied Air Cooled Mini Inverter Water Chiller
- Parent Category: Daikin Applied Air Cooled Chillers And Condensing Units
- Condition: New
- Availability: InStock
