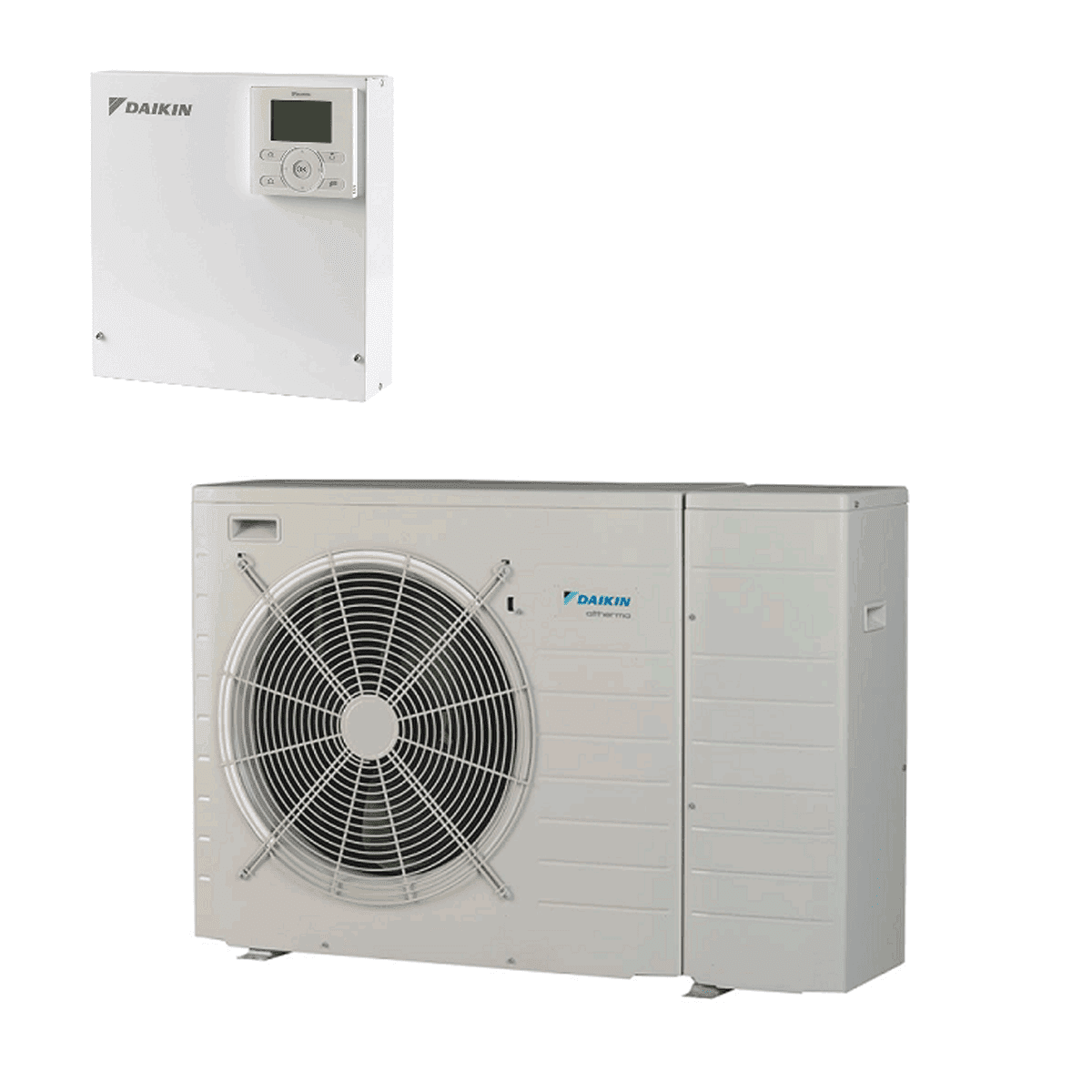

Daikin Air Conditioning Daikin UK.MONO7GROUND EDLQ07CV3 Ground to Water Monoblock Heat Pump 7Kw/24000Btu A++ 240V~50Hz
Daikin Air Conditioning Daikin UK.MONO7GROUND EDLQ07CV3 Ground to Water Monoblock Heat Pump 7Kw/24000Btu A++ 240V~50Hz is listed for TieDex store sale under Daikin Air Conditioning Altherma Air Source Heat Pump. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
Daikin UK.MONO7GROUND EDLQ07CV3 Ground to Water Low Temperature Monoblock Heat Pump 7Kw/24000Btu A++ R32 240V~50Hz This Kit Includes: UK.MONO7GROUND 7kW ground mounted configuration for heating and hot water containing: £2,969.00 EDLQ07CV3 7kW outdoor unit (heating only) £2,482.00 EKCB07CV3 Wiring centre £252.00 EKRUCBL2 User interface £100.00 K.FF600ASN Pair of flexi feet £55.00 K.HOSE750 Pair of flexible hoses 750mm £80.00 This unit is used for both heating and cooling applications. The unit can be combined with Daikin fan coil units, floor heating applications, low temperature radiators, domestic hot water tank (option) and Daikin solar kit (option). A remote controller is standard supplied with the unit to control your installation. Heating/cooling units and heating only units The unit range consists of two main versions: a heating/cooling (EB) version and a heating only (ED) version. The units are delivered with an integrated backup heater
for additional heating capacity during low outdoor temperatures. The backup heater also serves as a backup in case of malfunctioning of the unit and for freeze protection of the outside water piping during winter time. The backup heater factory set capacity is 6 kW, however, depending on the installation, the installer can limit the backup heater capacity to 3 kW/2 kW. The backup heater capacity decision is a mode based on the equilibrium temperature, An optional domestic hot water tank can be connected to the unit. The domestic hot water tank is available in 2 types: tank with built-in electrical booster heater (EKHW*) in 3 different sizes: 150, 200 and 300 litre, tank without electrical booster heater (EKHTS) in 2 different sizes: 200 and 260 litre. An optional room thermostat EKRTW, EKRTWA, or EKRTR can be connected to the unit.
Refer to the installation manual of the room thermostat for more information. To obtain more information concerning these option kits, please refer to dedicated installation manuals of the kits. Key Product Features: Outdoor Unit EDLQ07CV3 Trade Unit Price £2482.00 User Interface (must be ordered separately) EKRUCBL2 Description 7kW, 1-phase, 230V Function Heating Only Dimensions Height x Width x Depth mm 735 × 1090 × 350 Weight kg 80 Capacity Heating (a/b) kW 7.00 / 6.90 Input Heating (a/b) kW 1.55 / 2.02 COP 4.52 / 3.42 Seasonal space heating efficiency Space heating (Average climate) 35°C Class A++ Efficiency 163 SCOP 4.14 Space heating (Average climate) 55°C Class A++ Efficiency 125 SCOP 3.22 Operation Range Heating °C -25 ~ +25 Hot Water °C -25 ~ +35 Sound pressure/Power level dBA 49 / 62 Refrigerant charge R-410A kg 1.45 Power supply 1-phase
/ 230V / 50Hz Recommended Fuses Amps 16 Pump No. of speeds Inverter Controlled Expansion vessel volume litres 7 Water connections Diameter Inch 1” (male) Max piping length OU to cylinder mm 10 Minimum water volume without back-up heater litres 20 Minimum water volume with back-up heater litres 10 BACK UP HEATER KIT (OPTIONAL) EKMBUHC3V3 Description Back up heater kit (3kW) Trade Unit Price £517.00 Nominal rating kW 3 Dimensions Depth mm 210 Width mm 250 Height mm 560 Power supply 1-phase / 230V / 50Hz Recommended fuses 3 kW 1ph 230V Amps 16 Water connections Diameter inch 1” (male) Accessories: Accessory Ref Description Trade Price EKRUCBL2 User interface £100.00 EKRUCBS Optional simplified room thermostat £94.00 EKPCCAB4 PC cable – to upload field settings from PC to unit or spare controller £215.00 EKRSC1 Optional remote outdoor temperature sensor (see note)
£71.00 KRCS01-1 Optional remote indoor temperature sensor (see note) £54.00 EK2CB07CV3 Optional Wiring centre - for remote alarm monitoring, run and fault indication and bivalent operation £252.00 K.FF600ASN Pair of flexi feet to mount the outdoor unit £55.00 K.CWBXL Wall mounting brackets for outdoor units (250kg, 660mm long) £81.00 K.DT2 Condensate drip tray for use with K.CWBXL £68.00 K.HOSE750 Pair of flexible hoses (Length 750mm, 19mm tough PVC coat insulation, 1" FBSP, 28mm compression) £80.00 K.HOSE750EL Pair of flexible hoses with elbow (Length 750mm, 19mm tough PVC coat insulation, 1" FBSP, 28mm compression) £114.00 K.CG750S Outdoor unit guard £326.00 K.FERNOXTF1 Fernox magnetic filter 1” £110.00 K.FERNOXTF1FL Fernox magnetic filter 1” and F1 inhibitor fluid (500ml) £129.00 BRP069A62 Smart Comfort Controller £143.00 K.ELECMETV Electric meter for domestic RHI - Single-phase (Metering for performance compliant) MID Class A electric meter to measure
the electricity consumption of the Daikin Altherma heat pump £129.00 K.ELECMETW Electric meter for domestic RHI - Three-phase (Metering for performance compliant) MID Class A electric meter to measure the electricity consumption of the Daikin Altherma heat pump £230.00 EKUMBPART 3rd party tank connection kit - Dry pocket sensor £210.00 PDF Data:
Key Details
- Brand / Vendor: Daikin Air Conditioning
- Product SKU: UK.MONO7GROUND
- MPN / Model: UK.MONO7GROUND
- Category: Daikin Air Conditioning Altherma Air Source Heat Pump
- Parent Category: Daikin Air Conditioning
- Condition: New
- Availability: InStock
