Mitsubishi Electric Air Conditioning MSZ-HR35VF Classic Wall Mounted 3.5Kw/12000Btu R32 A+ 240V~50Hz
Mitsubishi Electric Air Conditioning MSZ-HR35VF Classic Wall Mounted 3.5Kw/12000Btu R32 A+ 240V~50Hz is listed for TieDex store sale under Mitsubishi Electric Air Conditioning MSZ-HR Classic Wall Mount. The brand/vendor is Mitsubishi Electric Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

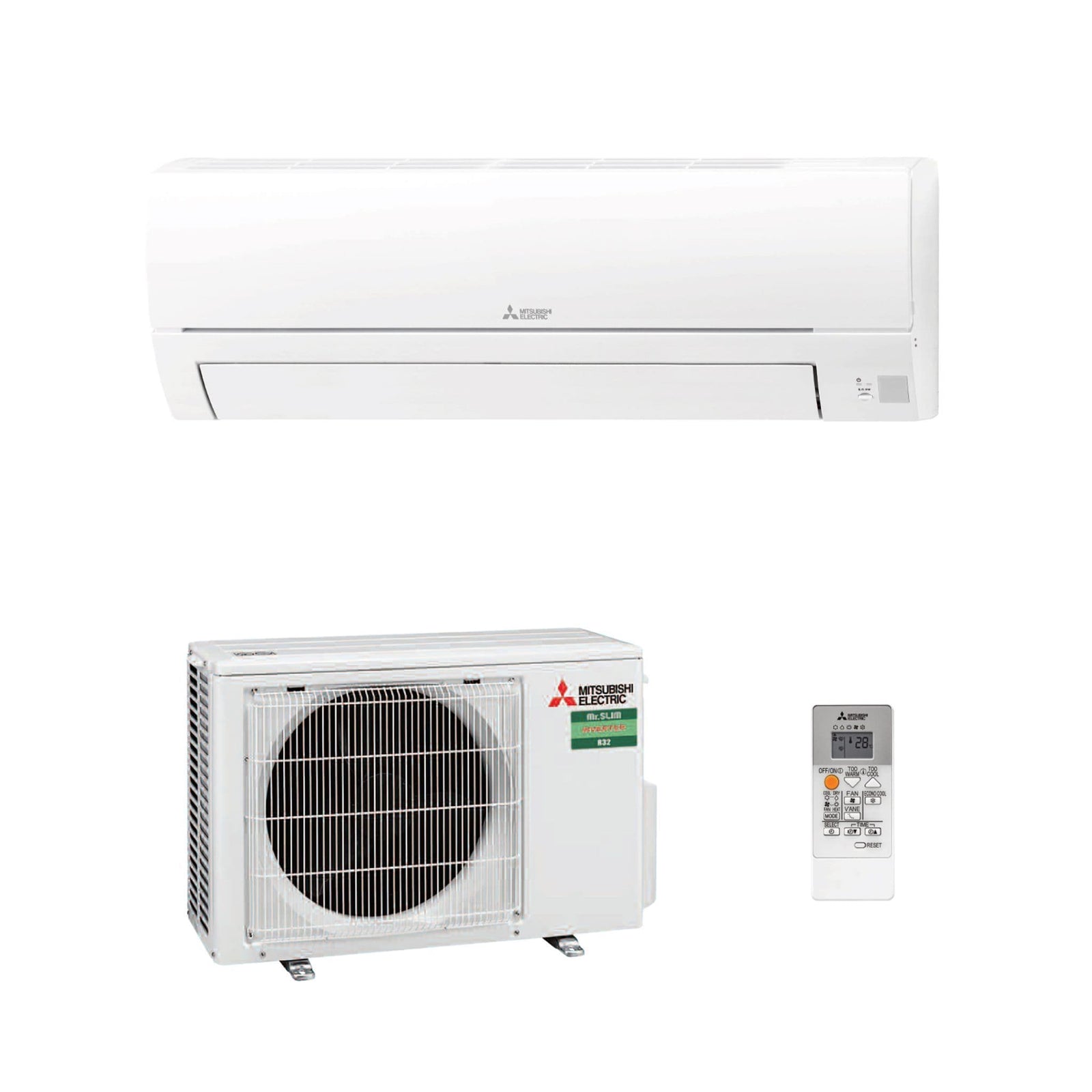

This kit includes: 1 x MSZ-HR35VF Classic Wall Mount Indoor unit 1 x MUZ-HR35VF Outdoor unit 1 x Standard IR remote control A++ Energy rated product Mitsubishi Electric’s range of classic, R32, flat panel wall mounted models make use of inverter technology, whilst providing extremely good value for money, costing approximately 20% less than equivalent models. Mitsubishi Electric’s classic MSZ-HR R32 range of high specification "Classic" flat panel wall mounted models make use of the latest Mitsubishi Electric inverter compressor technology. Designed specifically for comfort cooling and heating, these units have extremely quiet sound levels, whilst also delivering economical air conditioning, with improved EER figures. Ideal for use in any size room, many units come equipped with a wide-angle airflow system, as well as an automatic swing vane, allowing airflow to be extended to every corner of a room. Designed
to heat or cool small to medium sized applications, the M Series range provides a versatile, yet affordable air conditioning solution. Extremely quiet sound levels whilst also delivering economical air conditioning with improved SCOP / SEER figures and also quiet (as low as 21dBA* On smaller models). Unlike conventional models with a grilled air intake, wall mounted models feature a smoothly contoured, flat panel finish with a top air intake that not only improves aesthetics, but also helps to reduce noise as the heat exchanger area is fully covered. This is as a result of the multi-angled heat exchanger having a modified fin shape that reduces air resistance, producing a smoother, quieter flow of air. Alongside this, the wide diameter of the fan produces greater airflow at lower fan speeds and the uneven pitch between each fan blade helps to
eliminate unwanted noise. Key Product Feature's: High SCoP, up to record 5.7 R32 Advanced technology control Infra-red controller Slim construction Pipe runs up to 20 metres Extremely quiet sound levels whilst also delivering economical air conditioning with improved SCOP / SEER figures Auto re-start after power interruption PRE-CHARGED WITH REFRIGERANT for up to 7 metres pipe length Easy cleaned & serviced. Full ECA tax allowance Optional Wi-Fi interface now available with this model Silver-ionised air purifying filter as standard Fault diagnosis Technical Specification: MSZ-HR - INDOOR UNITS MSZ-HR35VF CAPACITY (kW) Heating (nominal) 3.60 (0.9-3.7) Cooling (nominal) 3.40 (0.9-3.4) Heating (UK) 2.99 (0.75-3.1) Cooling (UK) 3.37 (0.89-3.4) SHF (nominal) 0.78 COP / EER (nominal) 3.69 / 2.81 SCOP / SEER (BS EN14825) 4.30 / 6.20 ErP ENERGY EFFICIENCY CLASS Heating/Cooling A+ / A++ AIRFLOW (l/s) Heating/Cooling - Lo-Mi-Hi-SHi 55-90-123-175 / 60-93-130-195
PIPE SIZE mm (in) Gas 9.52 (3/8”) Liquid 6.35 (1/4”) SOUND PRESSURE LEVEL (dBA) Heating/Cooling - Lo-Mi-Hi-SHi 21-30-37-44 / 22-31-38-46 SOUND POWER LEVEL (dBA) 60 DIMENSIONS (mm) Width x Depth x Height 838 x 228 x 280 WEIGHT (kg) 8.5 ELECTRICAL SUPPLY Fed by Outdoor Unit FUSE RATING (BS88) - HRC (A) 6 INTERCONNECTING CABLE No. CORES 4 MUZ-HR - OUTDOOR UNITS MUZ-HR35VF SOUND PRESSURE LEVEL (dBA) Heating/Cooling 51 / 51 SOUND POWER LEVEL (dBA) Cooling 64 WEIGHT (kg) 24 DIMENSIONS (mm) Width x Depth x Height 699 x 249 x 538 ELECTRICAL SUPPLY 220-240v, 50Hz PHASE Single SYSTEM POWER INPUT (kW) Heating/Cooling (nominal) Heating/Cooling (UK) 0.98 / 1.21 0.89 / 0.96 STARTING CURRENT (A) 5.9 SYSTEM RUNNING CURRENT (A) Heating/Cooling [MAX] 4.6 / 5.9 [6.4] FUSE RATING (BS88) - HRC (A) 10 MAINS CABLE No. CORES 3 MAX PIPE
LENGTH (m) 20 MAX HEIGHT DIFFERENCE (m) 12 CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675) 0.45 / 0.30 MAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675) 0.26 / 0.18 PDF Data: Wi-fi module: Mitsubishi Electric Air Conditioning MAC-557IF MELCLOUD WiFi Connection Interface Optional System Control Units: PAR-CT01MAA-SB/PB: Touch screen wired remote controller (PB = Premium Finish) PAR-40MAA : Standard wired remote controller MAC-334F: Interface for m-NET, mA remote controller (PAR-40mAA / PAR-CT01mAA), on/off input and run/fault output MAC-397IF: Interface for mA remote controller (PAR-40mAA / PAR-CT01mAA), on/off input and run or fault output MELCOBEMS MINI modbus and BACnet mSTP CN105 adaptor MELCORETAIL MINI Retail control and input / output interface These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas
Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Mitsubishi Electric Air Conditioning
- Product SKU: MSZ-HJ35VA
- MPN / Model: MSZ-HJ35VA
- Category: Mitsubishi Electric Air Conditioning MSZ-HR Classic Wall Mount
- Parent Category: Mitsubishi Electric Air Conditioning MS Wall Unit A+, A++,A+++
- Condition: New
- Availability: InStock
