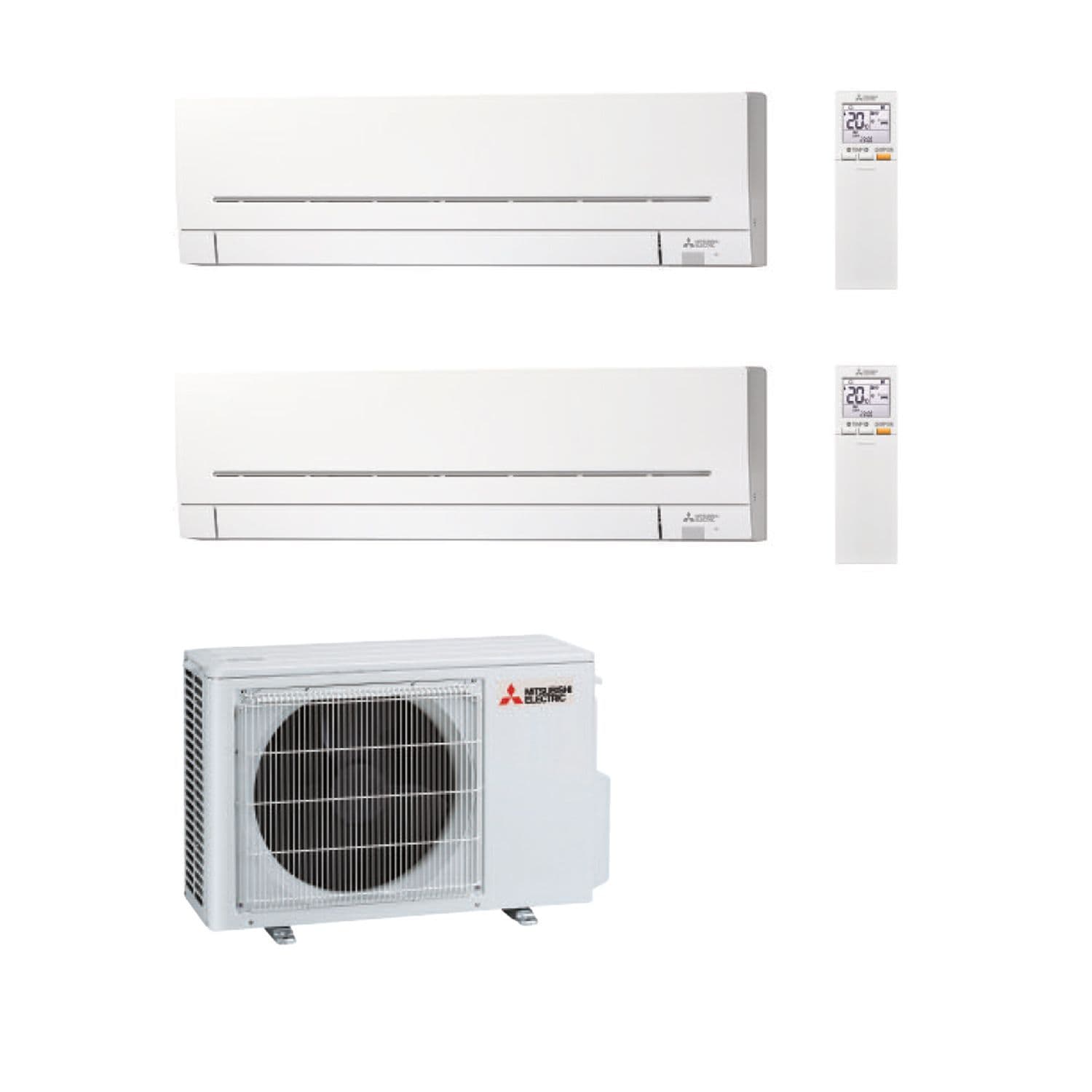

Mitsubishi Electric Air Conditioning MXZ-2F42VF4 Multi 2 x MSZ-AY35VGK 3.5kW Wall A++ 240V~50Hz
Mitsubishi Electric Air Conditioning MXZ-2F42VF4 Multi 2 x MSZ-AY35VGK 3.5kW Wall A++ 240V~50Hz is listed for TieDex store sale under Mitsubishi Electric Air Conditioning MXZ Multi Air Conditioning A+. The brand/vendor is Mitsubishi Electric Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
Mitsubishi Electric Air Conditioning MXZ-2F42VF4 Multi 2 x MSZ-AY35VGK 3.5kW Wall A++ 240V~50Hz Includes: 1 x Mitsubishi MXZ-2F42VF4 Multi room 2 port condensing unit (1.0-4.1Kw) A++ 240V~50Hz 2 x Mitsubishi MSZ-AY35VGK Wall Mounted Indoor units 3.5kW Wall A++ 2 x Wireless Ir Controllers "A++" rated energy product The MXZ Mitsubishi Electric air conditioning R32 refrigerant multi- room split systems allows MULTIPLE Mr Slim or M Series indoor units to be operated from a single outdoor unit. This makes it an economic answer in multi-room applications, whilst also offering space saving benefits. The indoor units are the M series which are renowned for quiet operation and outstanding reliability. A compact design makes these units ideal for commercial and home applications. Mitsubishi Electric's classic range of high specification wall mounted models make use of the latest Mitsubishi Electric comfort based technology. Designed
specifically for comfort cooling and heating, these units have extremely quiet sound levels, whilst also delivering economical air conditioning, with improved EER figures. Ideal for use in any size room, many units come equipped with a wide-angle airflow system, as well as an automatic swing vane, allowing airflow to be extended to every corner of a room. Designed to heat or cool small to medium sized applications, the M Series range provides a versatile, yet affordable air conditioning solution. Extremely quiet sound levels whilst also delivering economical air conditioning with improved SCOP / SEER figures and also quiet (as low as 22dBA* 1 ). Key Product Feature's: Up to multiple indoor units connected to a single outdoor unit Single outdoor unit for minimal noise and space impact Energy saving inverter controlled performance Compact design indoor and outdoor Mixture of different
types of indoor unit's if required New design indoor units High COP Infra-red controller with wall mounting bracket Auto re-start after power interruption PRE-CHARGED WITH REFRIGERANT Fault diagnosis New advanced technology control Technical Data: Indoor type Wall Mounted Heating capacity: nominal (kW) 4.00 Cooling capacity: nominal (kW) 3.50 COP (nominal) 3.88 EER (nominal) 3.54 SCOP (BS EN14825) 4.70 SEER (BS EN14825) 8.70 Sound pressure level (dBA) 18-24-30-36-42 Fuse rating (BS88) - HRC (A) 6 Dimensions - WxDxH (mm) 798 x 245 x 299 Weight (kg) 10.5 Refrigerant R32 Sound pressure level (dBA) 44 Max pipe length (m) 30 Max pipe height (m) 15 Electrical supply 220-240v, 50Hz Starting current (A) 4.2 Running current: H/C [MAX] (A) 4.2 / 4.5 [12.2] Fuse rating (BS88) - HRC (A) 16 Dimensions - WxDxH (mm) 800 x 285 x 550 Weight (kg) 37 PDF
Data: VIEW COMBINATION TABLES Optional System Control Units: PAR-CT01MAA-SB/PB: Touch screen wired remote controller (PB = Premium Finish) PAR-40MAA : Standard wired remote controller MAC-334F: Interface for m-NET, mA remote controller (PAR-40mAA / PAR-CT01mAA), on/off input and run/fault output MAC-397IF: Interface for mA remote controller (PAR-40mAA / PAR-CT01mAA), on/off input and run or fault output MELCOBEMS MINI modbus and BACnet mSTP CN105 adaptor MELCORETAIL MINI Retail control and input / output interface These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5)
EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Mitsubishi Electric Air Conditioning
- Product SKU: MXZ-2F42VF4 Multi 2 x MSZ-AY35VGK
- MPN / Model: MXZ-2F42VF4 Multi 2 x MSZ-AY35VGK
- Category: Mitsubishi Electric Air Conditioning MXZ Multi Air Conditioning A+
- Parent Category: Mitsubishi Electric Air Conditioning
- Condition: New
- Availability: InStock
