Mitsubishi Heavy Industries Air Conditioning FDC125VSA-W FDE125VH Under Ceiling Micro 12.5Kw 3P
Mitsubishi Heavy Industries Air Conditioning FDC125VSA-W FDE125VH Under Ceiling Micro 12.5Kw 3P is listed for TieDex store sale under Mitsubishi Heavy Industries FDE Ceiling Air Conditioning Heat Pump Inverters A. The brand/vendor is Mitsubishi Heavy Industries Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

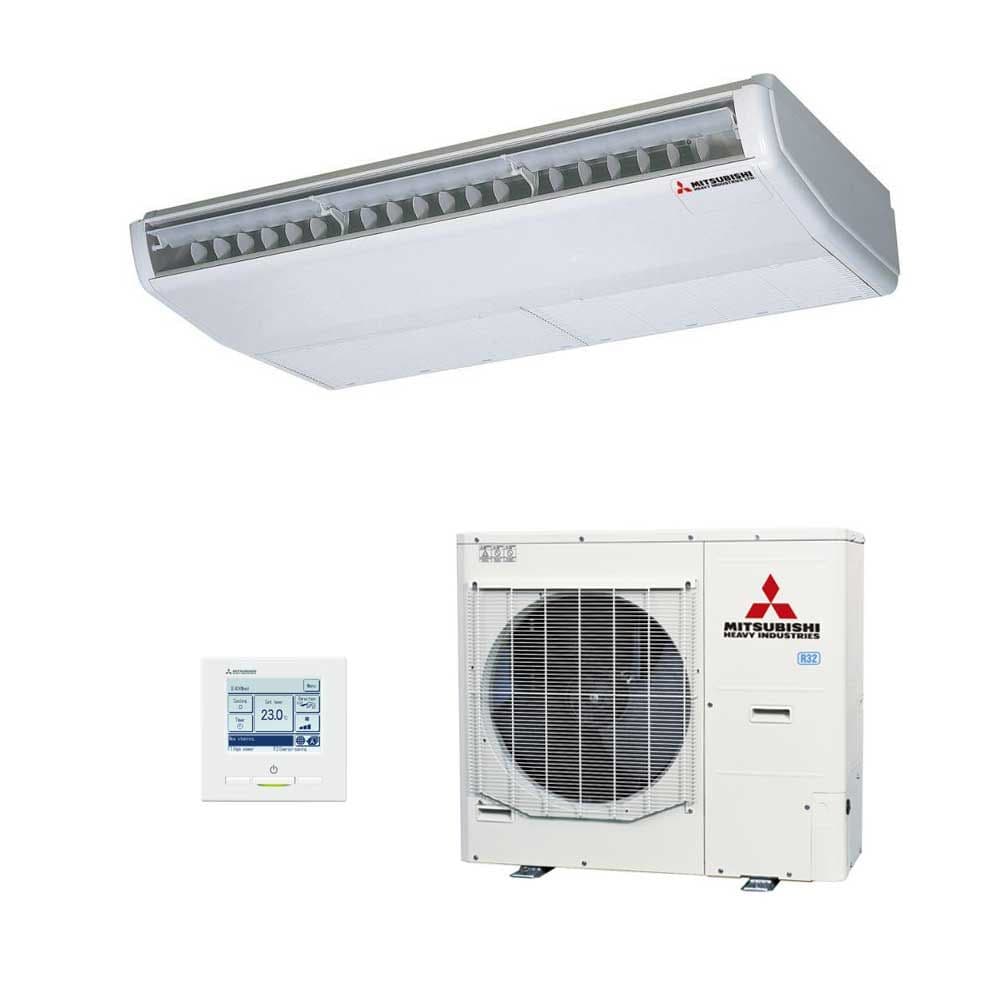

Mitsubishi Heavy Industries Air Conditioning FDC125VSA-W FDE125VH Under Ceiling 12.5Kw/42000Btu R32 A+ 3 Phase, 380 - 415V 50Hz This Kit Includes: 1 x Mitsubishi Heavy Industries Air Conditioning FDE125VH Under Ceiling 12.5Kw R32 1 x Mitsubishi Heavy Industries Air Conditioning FDC125VSA-W Outdoor Inverter Micro Inverter Heat Pump Unit 12.5Kw R32 A+ 3 Phase, 380 - 415V 50Hz 1 x Mitsubishi Heavy Industries Air Conditioning Eco Touch RC-EX3A Wired Remote Controller 2 wire The new Mitsubishi Heavy Industries Air Conditioning FDE R32 ceiling suspended indoor series now comes with stylish rounded side panels and a slimmer profile. The Mitsubishi Heavy Industries FDE is suitable for areas which do not have suspended ceilings, and can be installed adjacent to a side wall, allowing the pipe connections and electrical wiring are concealed. This system comes with the RC-EX3A Eco-touch is a touch screen
wired controller providing full function control and more than 90 function settings.Using the wired remote control system, users can run and stop the unit, switch operations, adjust the temperature, fan speed and air flow direction (up or down), and control timer operation. Mitsubishi Heavy Industries Air Conditioning has made a giant leap forward in air conditioning and heat pump technology, with the development of high performance R32 charged FDE series split systems ideally suited for commercial application such as offices, shops, meeting rooms, restaurants, hotels, clubs, gyms, and open plan areas. The heat exchangers have again been improved, now using slit-fins and inner grooved tubing for maximum efficiency in heating and cooling, whilst maintaining lower sound levels. The 7-Day Programmable timer is now included in the standard controls specification. Product Key Feature's: • 7-Day 24 HR Programmable Timer • Two
on/off settings each day • Different temperature for each set period • External timer/BMS switching for Group control • Wall Controller - hard wired • Integral temperature sensor • Slim Construction • Infra-red wireless controller optional • INVERTER technology • Low profile attractive grey/white fascia panel • Improved anti-smudge air discharge • Low ambient control included • Auto re-start after power interruption • Reduced sound levels • Long pipe-runs • High C.O.P Technical Data: INDOOR UNIT FDE125VH HARD WIRED CONTROLLER RC-EX3A OUTDOOR UNIT FDC125VSA-W UK Cooling kW 11.58 UK Sensible Cooling kW 8.82 Cooling Range (Nominal) kW 5.0 to 14.0 S.E.E.R, EER, Energy Label 6.3, 2.81, N/A Heating Range (Nominal) kW 4.0 to 16.00 S.C.O.P, COP, Energy Label 4.30, 3.74, N/A INDOOR UNIT Exterior Dimensions (H x W x D) mm 250 x 1,620 x 690 Net Weight kg 43
Air Flow (H/M/L) Cooling m3/m 29 / 23 / 17 Air Flow (H/M/L) Heating m3/m 29 / 23 / 17 Sound Pressure Level (H/M/L) Cooling db(A) 45 / 40 / 35 Sound Pressure Level (H/M/L) Heating db(A) 45 / 40 / 35 OUTDOOR UNIT Exterior Dimensions (H x W x D) mm 845 x 970 x 370 Net Weight kg 78 Sound Pressure Level Cooling/Heating db(A) 54 / 65 ELECTRICAL DATA Power Source Rating MCB A 20A per a phase Mains Power To Outdoor 3 Phase, 380 - 415V 50Hz Interconnecting Wires (Dia) (mm2) 3+E (1.5) Start Current / Max Running Current A 5 / 15 INSTALLATION/REFRIGERANT Ref. Piping Size o.d.ins (mm) Liquid 3/8 Suction 5/8 Ref. Min Piping Length m - Ref. Max Piping Length m 50 Vertical Height Difference (Max) *Outdoor Unit Above/Below Indoor Unit m 50 /
15 Refrigerant Amount Pre-charged (kg/TCO2Eq) 3.3 / 2.228 * For Pipe Length Up To m 30 Additional Refrigerant g/m 54 PRODUCT NO. PRODUCT DESCRIPTION RCN-E-E3 IR Remote Control & Receiver Kit for FDE**VG/F LB-E Motion Sensor (USE 629204 RCEX3A Controller) RCE5 Wired Controller RCEX3A Eco Touch Controller RCH-E3 Simplified Controller PCZ006A043 6 Wire Adaptor INMBSM- HI001R000 Modbus Interface 1 Indoor Unit INKNXM- HI001R000 KNX Interface 1 Indoor Unit SC-ADNA-E Superlink Adaptor IHWFIM- HI001R000 Intensis Home WIFI Interface MHI Hard Wired AZA16WSCMHI Airzone Aido WiFi SC-THB-E3 Remote Sensor 8m SSA42A024 Elbow for condensing drain kit (1 required) SSA947089 Grommet for condensing drain kit (4 required) PDF Data Sheet: These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation
service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Mitsubishi Heavy Industries Air Conditioning
- Product SKU: FDC125VSA-W FDE125VH
- MPN / Model: FDC125VSA-W FDE125VH
- Category: Mitsubishi Heavy Industries FDE Ceiling Air Conditioning Heat Pump Inverters A
- Parent Category: Mitsubishi Heavy Industries Air Conditioning
- Condition: New
- Availability: InStock
