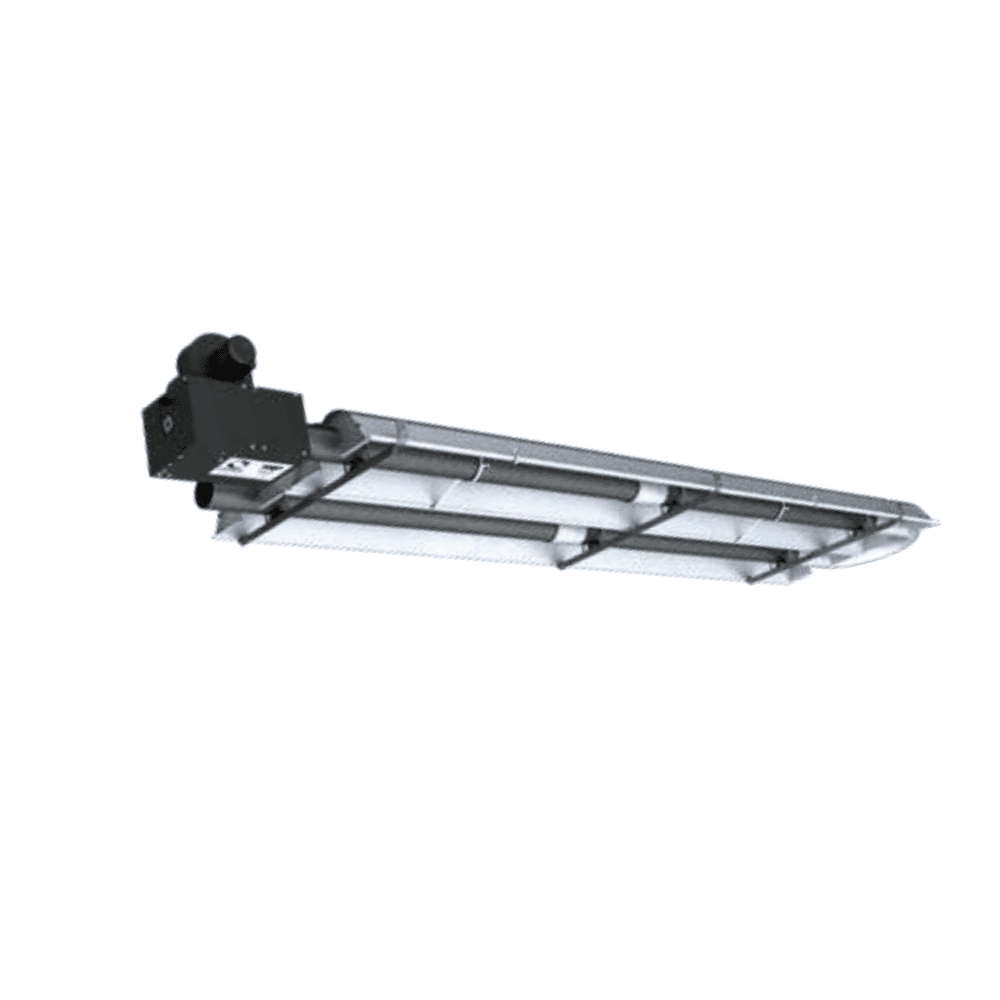

Powrmatic SRP PU20US Tube Gas Radiant Tube Heater Industrial Warehouse 22kW/74000Btu 220-240V~50Hz
Powrmatic SRP PU20US Tube Gas Radiant Tube Heater Industrial Warehouse 22kW/74000Btu 220-240V~50Hz is listed for TieDex store sale under Gas Radiant Tube Heater. The brand/vendor is Powrmatic. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
This Kit Includes: 1 × Powrmatic SRP PU20US U-Tube Gas Radiant Tube Heater 1 × High-efficiency aluminised steel U-tube radiant emitter assembly 1 × Precision-formed aluminium reflector system 1 × Gas burner assembly with combustion fan 1 × Suspension mounting bracket kit 1 × Factory-installed ignition and safety control system 1 × MC200 Optimised Control MC200V3 Compact 22kW U-Tube Gas Radiant Heater for Industrial and Warehouse Heating The Powrmatic SRP PU20US is a gas-fired U-tube radiant heater designed to provide efficient infrared heating for industrial buildings, workshops and warehouse environments. With a heat input of 22kW, this compact model is well suited to applications where effective zoned heating is required but available installation length is more limited than with linear radiant tube heaters. Using infrared radiant heating technology, the PU20US warms people, machinery and floor surfaces directly rather than heating
the surrounding air volume. This improves comfort while reducing heat stratification in buildings with high ceilings or frequent door openings, helping to maintain more effective heating performance in demanding industrial settings. The U-tube configuration allows a shorter overall installed footprint while still delivering strong radiant coverage into the occupied zone. Combined with the high-efficiency aluminium reflector and gas-fired burner assembly, the heater provides reliable and focused heating performance for warehouses, workshops and commercial spaces requiring dependable overhead radiant heat. Supplied with the MC200 optimised digital controller, the PU20US offers improved temperature management and efficient day-to-day operation for professional installations. Key Product Features: • Gas-fired U-tube radiant heater • Heat input: 22kW / 74,000 Btu • Compact U-tube radiant emitter configuration • Infrared radiant heating technology • High-efficiency aluminium reflector system • Two-stage burner operation for improved efficiency • Suitable for
Natural Gas or LPG operation • Supplied with MC200 optimised digital heater controller • Designed for suspended ceiling installation • Ideal for zoned heating within warehouses and workshops • Reduces heat stratification in high roof environments • Compact layout for sites with restricted installation length Technical Specifications: Model: SRP PU20US Product Type: U-Tube Gas Radiant Tube Heater Heat Input (High Fire): 22kW Heat Input (Low Fire): 17kW Heating Capacity: 22kW / 74,000 Btu Fuel Type: Natural Gas (G20) or LPG (G31) Heating Method: Infrared Radiant Tube Electrical Supply: 220-240V~50Hz 1Ph Burner Type: Gas-fired burner with combustion fan Emitter Tube Material: Heat-treated aluminised steel Reflector Type: High-efficiency aluminium radiant reflector Installation Type: Suspended ceiling or roof mounting Applications: • Industrial warehouses • Manufacturing facilities • Distribution centres • Workshops and vehicle garages • Agricultural buildings • Storage depots • Zoned heating
within large commercial buildings Compatible Accessories: Model Part Number 10 20LS 20 30 40 50 60 20US 20 30 40 50 PL & PU PL*-SG / PU*-SG 567 747 996 1175 1690 1305 655 1499 1967 2905 PVL & PVU PL*-SG / PU*-SG 567 747 996 1175 1690 N/A 655 1499 1967 2905 PVDL PVDL**-SG N/A 1105 1134 1290 2153 N/A N/A N/A N/A N/A Description Included Part Number Used On Flue Dia (mm) £ Vertical B22 (Single Pipe) Flue Kit 1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands PSRP/VFK/1 PU/PVU 100 503 PSRP/VFK/2 PL/PVL 100 555 PSRP/VFK/3 PVDL 130 657 Horizontal B22 (Single Pipe) Flue Kit 2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length,
1 × Horizontal terminal, 6 × Locking bands PSRP/HFK/1 PU/PVU 100 733 PSRP/HFK/2 PL/PVL 100 483 PSRP/HFK/3 PVDL 130 609 Vertical C32 (Twin Pipe Balanced) Flue Kit 1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 PSRP/VBFK/1 PVU 100 881 PSRP/VBFK/2 PU 100 961 Description Included Part Number Used On Flue Dia (mm) £ Vertical B22 (Single Pipe) Flue Kit 1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands PSRP/VFK/1 PU/PVU 100 503 PSRP/VFK/2 PL/PVL 100 555 PSRP/VFK/3 PVDL 130 657 Horizontal B22 (Single Pipe) Flue Kit 2 ×
45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands PSRP/HFK/1 PU/PVU 100 733 PSRP/HFK/2 PL/PVL 100 483 PSRP/HFK/3 PVDL 130 609 Vertical C32 (Twin Pipe Balanced) Flue Kit 1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 PSRP/VBFK/1 PVU 100 881 PSRP/VBFK/2 PU 100 961 Difference Between PL20LS and PL20: Model Heat Input Main Difference Tube Length PL20LS 22 kW Longer radiant tube system ~7.9 m PL20 22 kW Standard length radiant tube system ~9.5 m
Key Details
- Brand / Vendor: Powrmatic
- Product SKU: SRP-20550
- MPN / Model: SRP P20US
- Category: Gas Radiant Tube Heater
- Parent Category: Heating
- Condition: New
- Availability: InStock
