TieDex UK StarTech.com 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables - Rack mount KVM - VGA KVM Switch - 8 Port KVM Switch (SV831DUSBUK) - KVM switch - 8 ports - rack-mountable

The SV831DUSBUK 8-port rack mount USB KVM switch kit offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple.

The USB KVM delivers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.

A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.

StarTech.com 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables - Rack mount KVM - VGA KVM Switch - 8 Port KVM Switch (SV831DUSBUK) - KVM switch - 8 x KVM port(s) - 1 local user - rack-mountable - for P/N: RK12OD2, RK3236BKF, RK4236BKB, RK4242BK30, RKCONS1701, RKCONS17HD, RKQMCAB12V2

The USB KVM delivers a dependable computer management tool that allows you to control up to 8 VGA and USB-connected computers from a single keyboard, mouse and display with support for resolutions up to 1920x1440. The KVM provides maximum control through either hotkey or front panel push-button switching, plus the added configurability and convenience of an On-Screen Display.

A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

StarTech.com 8 Port 1U Rackmount USB KVM Switch Kit w/ OSD and Cables

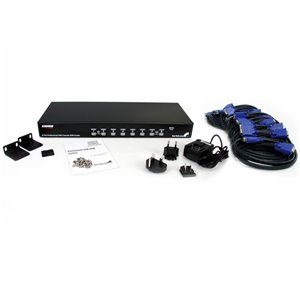

A complete 8-port USB KVM kit, including all necessary cables and accessories

The SV831DUSBUK 8-Port Rack Mount USB KVM Switch Kit offers a well-appointed VGA KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple.

The USB KVM delivers a dependable computer management tool that allows you to control up to 8 VGA and USB-connected computers from a single keyboard, mouse and display with support for resolutions up to 1920x1440. The KVM provides maximum control through either hotkey or front panel push-button switching, plus the added configurability and convenience of an On-Screen Display.

A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Documents

Basic Specifications

Manufacturer's Part Number

SV831DUSBUK

EAN

0763615990677

Designed For

P/N: 2POSTRACK12, 2POSTRACK16, 2POSTRACK42, 4POSTRACK12U, 4POSTRACK25U, 4POSTRACK42, RACKCOND17HD, RK1233BKM, RK12OD2, RK1833BKM, RK2433BKM, RK2537BKM, RK3236BKF, RK4236BKB, RK4242BK24, RK4242BK30, RK8OD, RK960CP, RKCONS1701, RKCONS17HD, RKQMCAB12, RKQMCAB12V2, RKWOODCAB12, SVA12M2NEUA, SVA12M5NA

Manufacturer Warranty

3-year warranty

Product Description

StarTech.com 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables - Rack mount KVM - VGA KVM Switch - 8 Port KVM Switch (SV831DUSBUK) - KVM switch - 8 ports - rack-mountable

Model

StarTech.com 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables - Rack mount KVM - VGA KVM Switch - 8 Port KVM Switch (SV831DUSBUK)

Weight

2.9 kg

Device Type

KVM switch - 8 ports - cascadable

Product Type

KVM switch

Bundled Services

3 years warranty

Dimensions (WxDxH)

43.8 cm x 18 cm x 4.5 cm

Interfaces

KVM

Enclosure Type

Rack-mountable 1U

Subtype

KVM

Ports

8 x KVM port(s)

KVM Users Qty

1 local user

Power

Power Device

External power adapter

General

Device Type

KVM switch - 8 ports - cascadable

Enclosure Type

Rack-mountable 1U

Subtype

KVM

Ports

8 x KVM port(s)

KVM Local Users Qty

1 local user

Keyboard / Mouse Interface

USB

Max Resolution

1920 x 1440

Status Indicators

Port status, power

Compatibility Information

Designed For

P/N: 2636CABINET, 2POSTRACK12, 2POSTRACK16, 2POSTRACK42, 4POSTRACK12, 4POSTRACK12A, 4POSTRACK12U, 4POSTRACK25, 4POSTRACK25U, 4POSTRACK36, 4POSTRACK42, 4POSTRACKBK, 4POSTRACKHD, 7236CABINET, RACKCOND17HD, RK1233BKM, RK1236BKF, RK12OD, RK12OD2, RK1833BKM, RK2236BKF, RK2433BKM, RK2536BKF, RK2537BKM, RK3236BKF, RK4236BK, RK4236BKB, RK4242BK, RK4242BK24, RK4242BK30, RK8OD, RK960CP, RKCONS1701, RKCONS17HD, RKQMCAB12, RKQMCAB12V2, RKWOODCAB12, SVA12M2NEUA, SVA12M5NA, SVECONUS10, SVECONUS15, SVECONUS6, SVUSBVGA10, SVUSBVGA6

Expansion / Connectivity

Interfaces

8 x KVM HD-15 ¦ 1 x keyboard (USB) Type A ¦ 1 x mouse (USB) Type A ¦ 1 x VGA HD-15

Environmental Parameters

Min Operating Temperature

5 °C

Max Operating Temperature

40 °C

Dimensions & Weight

Width

43.8 cm

Depth

18 cm

Height

4.5 cm

Weight

2.9 kg

Miscellaneous

Cables Included

8 x keyboard / mouse / video cable

Rack Mounting Kit

Included

Manufacturer Warranty

Service & Support

Limited warranty - 3 years
