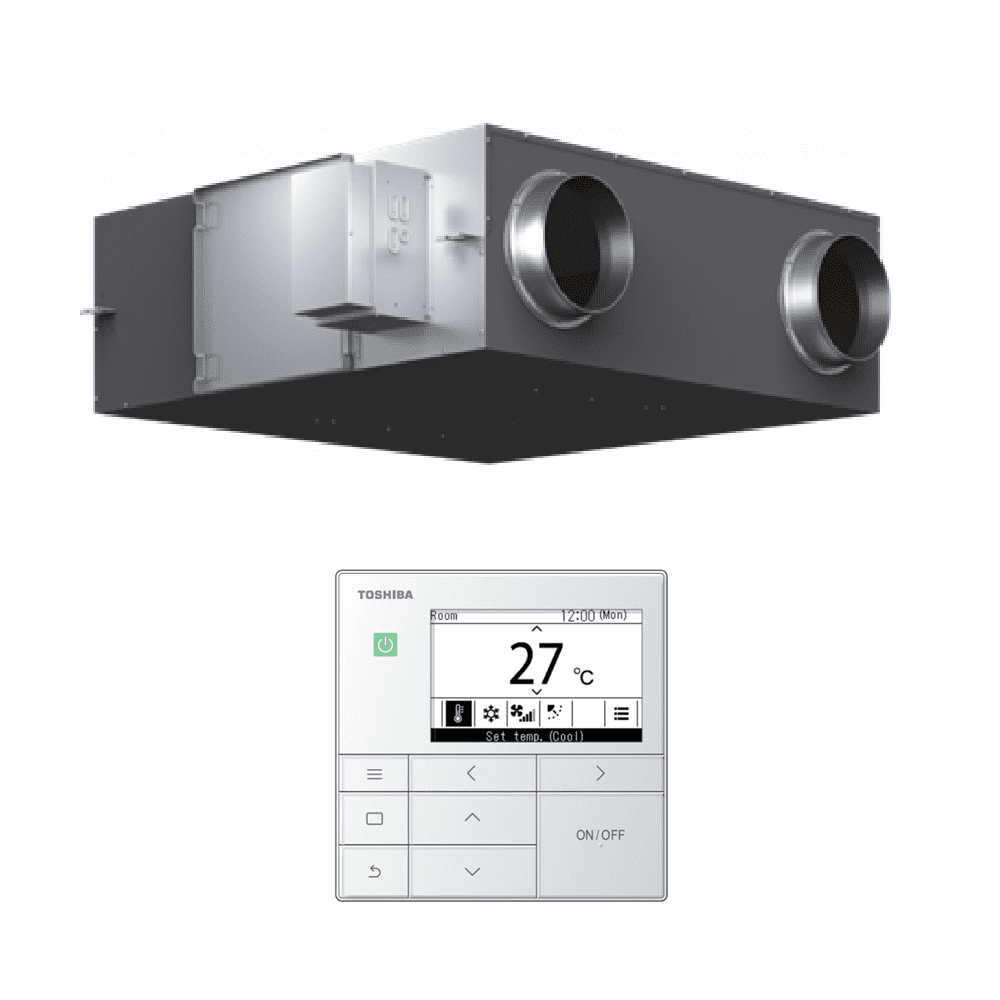

Toshiba Air Conditioning MMD-UPV0801HY-E Air-to-Air Heat Exchanger + DX Coil 960 m³/h 8Kw 220-240V
Toshiba Air Conditioning MMD-UPV0801HY-E Air-to-Air Heat Exchanger + DX Coil 960 m³/h 8Kw 220-240V is listed for TieDex store sale under Toshiba Air Conditioning Air-to-Air Heat Exchanger. The brand/vendor is Toshiba Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
This Kit Includes: Toshiba MMD-UPV0801HY-E Air-to-Air Heat Exchanger + DX Coil Unit DC Fan Motor Assembly Standard Washable Filter Set Cross-Flow Heat Exchanger Core Flare Connection Set (1/2 – 1/4) Installation & Commissioning Documentation The Toshiba MMD-UPV0801HY-E is the premium large-capacity model in the Air-to-Air Heat Exchanger + DX Coil series, delivering high-performance ventilation with integrated cooling and heating assistance. This powerful 8.61 kW heating and 6.56 kW cooling system is designed to support modern commercial buildings, residential developments, offices, retail spaces and high-efficiency mechanical ventilation systems where stable airflow and robust climate control are essential. With full compatibility across Toshiba’s SMMS-u/e, SHRM-e/a and Mini SMMS-e VRF platforms, the MMD-UPV0801HY-E allows seamless integration into VRF-based HVAC designs. Its large cross-flow heat exchanger recovers thermal energy from outgoing air, helping maintain indoor comfort while significantly reducing energy expenditure. The inclusion of
a DC fan motor ensures stable air volume management, quiet operation and increased efficiency even on demanding ductwork layouts. This model is engineered for installers needing a high-capacity ventilation + DX solution with outstanding enthalpy recovery, broad operating limits and flexible installation features suitable for a wide range of UK commercial applications. Key Product Features: Heating Capacity: 8.61 kW (3.41 kW DX coil assist) Cooling Capacity: 6.56 kW (2.06 kW DX coil assist) Compatible with Toshiba SMMS-u/e, SHRM-e/a, Mini SMMS-e Cross-flow heat exchanger with removable/washable core DC fan motor for reduced energy consumption High enthalpy exchange efficiency up to 81.5% Wide operating temperature limits for supply, return and outdoor air Built-in air flaps to prevent outside air ingress during shutdown Optional CO₂/PM sensor for intelligent ventilation control Suitable for residential, commercial and controlled ventilation applications High-performance filter option available Complies
with ENTR Lot 11 requirements Stable airflow on long duct runs Integrated standard air filter Robust housing with easy-access maintenance sections Technical Specifications: Cooling Capacity (kW): 6.56 (2.06) Heating Capacity (kW): 8.61 (3.41) Operating Range – Around Unit (°C • %RH): -15 to 50 • ≤ 80 Operating Range – Outdoor Air (°C • %RH): -20 to 52 • ≤ 80 Operating Range – Return Air (°C • %RH): 5 to 40 • ≤ 80 Standard Air Flow (m³/h): 800 – 640 – 480 – 320 Airflow Limit Upper/Lower (m³/h): 1600 – 800 External Static Pressure (Pa): 220 – 130 – 27 Sound Pressure Level (dB[A]): 43 – 38 – 32 Filtration Efficiency (Weighted Method): 80.3% Enthalpy Exchange Efficiency (High Air Flow): 76.0% Dimensions (HxWxD mm): 386 x 1020 x 1290 Weight (kg): 122 Duct Diameter Supply/Return (mm): 250 x
2 / 250 x 2 Flare Connections (gas-liquid): 1/2 – 1/4 Suggested Power Supply (V-ph-Hz & A): 220/240-1-50 & 3(10) Options: Accessory Type Model / Part Code Description / Purpose Wired Controllers RBC‑AMSU52-E Premium remote controller with 7-day timer, multi-language display, refrigerant-leak indication, energy-save settings — ideal for daily control of ventilation. NRC-01HE Basic remote controller for ON/OFF and fan-speed control when only a ventilation unit is installed. Interface / Control Leads RBC‑VNL1 Interface / CN-connector leads Used for linking the heat exchanger to controllers, external inputs, or building-management systems (BMS), enabling external ON/OFF, damper control, and central control functions. Pre-heater / Heater Kits (for cold-climate or pre-heating incoming air) RBC‑VNMH1-PE (100 mm) Adds a 1 kW heater unit suitable for small heat exchangers — useful if fresh air intake requires tempering. RBC‑VNMH2-PE (150 mm) Heater kit for mid-range models
(e.g. RBC‑VNMH3-PE (200 mm) Higher-capacity heater kit for larger ventilation units (e.g. RBC‑VNMH4-PE (250 mm) For large units (800 m³/h and above) — delivers stronger fresh-air heating capacity when needed. High-Performance Air Filters (for improved air quality) Filter panels (EPM1 55 %) — various part codes depending on VN size Provide enhanced filtration (PM / dust / pollen) — important for offices, clinics, schools, or any clean-air requirement. Optional CO₂ / PM Sensor Module TCB-SFMCA1V-E When fitted, enables ventilation fan-speed control based on real-time indoor air-quality — improving efficiency and compliance to air-quality standards (available from 2023 updates) Weatherproof/Outdoor Housings Various “Outdoor Housing” kits (size dependent) If the heat exchanger is installed outdoors or in partially exposed areas — helps protect the unit from weather, ensuring durability and compliance in exposed installations. External Input / ON–OFF Adapter NRB-1HE Remote ON/OFF
Adapter Allows the heat-exchanger to be controlled by external 0-V contact closure or building-management systems (BMS) instead of just the remote controller. CN Connector Kits & Leads (for wiring/branching) Multiple CN-series connectors (CN610, CN704, CN705, CN706, CN80 etc.) Used to connect multiple VN units or interface them with controllers/ BMS; required for “group control” or multi-unit installations. These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Toshiba Air Conditioning
- Product SKU: MMD-UPV0801HY-E
- MPN / Model: MMD-UPV0801HY-E
- Category: Toshiba Air Conditioning Air-to-Air Heat Exchanger
- Parent Category: Toshiba Air Conditioning
- Condition: New
- Availability: InStock
