Toshiba Air Conditioning RAV-GM401ATP-E RAV-HM401KRTP-E High-Wall Digital Inverter 3.5Kw 1Ph

Toshiba Air Conditioning RAV-GM401ATP-E RAV-HM401KRTP-E High-Wall Digital Inverter 3.5Kw 1Ph

Toshiba Air Conditioning RAV-GM401ATP-E RAV-HM401KRTP-E High-Wall Digital Inverter 3.5Kw 1Ph is listed for TieDex store sale under Toshiba Air Conditioning RAS Wall Mounted Digital Heat Pump Inverter 1Ph and 3Ph. The brand/vendor is Toshiba Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.

Product Overview

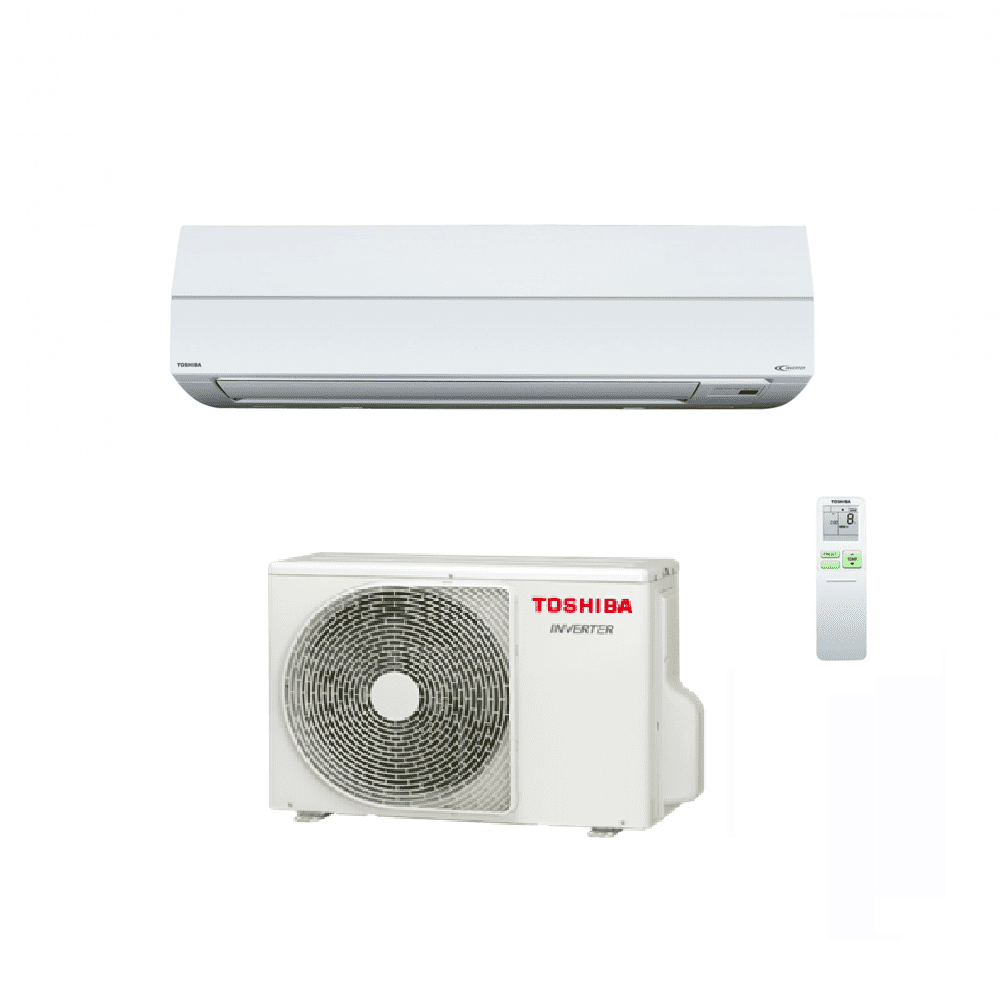

This Kit Includes: 1 × Toshiba RAV-HM401KRTP-E Digital Inverter High-Wall Indoor Unit 230V~50Hz 1 × Toshiba RAV-GM401ATP-E Digital Inverter Outdoor Heat Pump Unit 230V~50Hz 1 × Wireless Remote Controller RBC-AMSU51E-ES (Factory Standard) The Toshiba RAV-HM401KRTP-E Digital Inverter High-Wall System is a stylish, compact and highly efficient commercial wall-mounted air conditioning solution. Designed for offices, retail units, classrooms, small hospitality spaces and refurbishment projects, it delivers strong performance with quiet operation and low running costs. The indoor unit features Toshiba’s new-generation airflow design, optimised air throw and a high-efficiency heat-pump coil. Its slim profile and modern casing make it suitable for environments where aesthetics are important. The system includes enhanced filtration, mould-resistant self-cleaning coil technology and precise temperature control for stable comfort throughout the year. Paired with the RAV-GM401ATP-E outdoor inverter unit, this system delivers reliable 3.6 kW cooling and 4.0

kW heating output with an impressive A++/A+ seasonal energy rating. The outdoor unit uses a twin-rotary DC compressor for smooth, efficient modulation and reduced vibration. With a maximum pipe run of 20 metres, this model is ideal for flexible installations in both new builds and retrofits. This high-wall system supports multiple control modes including Hi-Power, Quiet, Eco and Comfort Sleep, ensuring adaptable operation for different commercial requirements. Optional wired controllers and centralised control options are also supported for integration with building management systems. Overall, this is a dependable, low-noise, high-efficiency heat pump designed for everyday commercial use where performance, reliability and cost-efficiency are essential. Key Product Features: 3.6 kW cooling / 4.0 kW heating capacity High seasonal performance: A++ cooling / A+ heating Slim commercial high-wall unit with modern styling Quiet operation: 41 / 36 / 30 dB(A) (H–M–L) Self-cleaning

coil function helps prevent mould and maintains efficiency Airflow up to 2200 m³/h outdoor / 611 l/s indoor Auto-louvre swing + wide airflow distribution Twin-rotary inverter compressor for smooth, efficient performance Wireless controller with preset modes (Hi-Power, Quiet, Eco, Sleep) Max pipe run: 20 m Ideal for small offices, retail units, meeting rooms and commercial spaces Technical Specifications: Cooling / Heating: 3.6 kW / 4.0 kW UK Total/Sensible Cooling: 3.42 / 2.67 kW UK Heating: 2.86 kW Energy Label: A++ Cooling / A+ Heating Indoor Dimensions (H×W×D): 293 × 798 × 230 mm Outdoor Dimensions (H×W×D): 550 × 780 × 290 mm Indoor Airflow (H–M–L): 194 – 161 – 125 l/s Outdoor Airflow (High): 2200 m³/h / 611 l/s Sound Pressure (ID): 41 – 36 – 30 dB(A) Sound Pressure (OD): 49 / 50 dB(A) Power Supply: 220–240V / 1Ph

/ 50Hz Interconnecting Cable: (3C+E) Pipe Connections (liquid/gas): 1/2″ – 1/4″ Max Pipe Length: 20 m Max Height Difference: 10 m Charge-Free Length: 15 m Refrigerant Additional Charge: R32 / 0.9 kg / 20 g/m Options: Model Description Price RBC-AX31U(W)-E Wireless Receiver Kit for 4-Way Cassette £191 RBC-AX33UYP-E Wireless Receiver Kit for 1-Way Cassette £57 RBC-AX31U-E Wireless Remote Controller Kit – Ceiling £211 RBC-AX31UMP-E Wireless Remote Controller Kit – Others (Exclude High Static Ducted) £317 RBC-AX31U1-E Wireless Receiver Kit for 4-Way Cassette £225 RBC-AX31UME-E Wireless Receiver Kit for Compact Cassette £141 RBC-AX31U4WE-E Wireless Remote Controller Kit for 2-Way Cassette £142 RBC-AX31U3MP-E Wireless Remote Controller Kit for Compact 4-Way White £185 RBC-AX31U3MPB-E Wireless Remote Controller Kit for Compact 4-Way Black £185 RBC-AX33U4PE-E Wireless Receiver Kit for 4-Way Cassette (MMU-UP, 1HP-E & RAV-HM, 1UP-E) £185 RBC-AX41U-E Wireless Receiver Kit for 4-Way Cassette

£225 RBC-AXU33UPB-E Wireless Remote Controller Kit (IR receiver + handset), Black £173 Model Description Price RBC-AS41E Simplified Remote Controller £106 RBC-ASCU11-E Compact Remote Controller £76 RBC-ASCU32YP-E Compact Remote Controller £81 RBC-AMT32E Standard Remote Controller £126 RBC-AMT32E2 Standard Remote Controller £126 RBC-AMT54E Standard Remote Controller C/W 24/7 Schedule Timer £173 RBC-AMT52E Premium Remote Controller C/W 24/7 Schedule Timer £173 RBC-AMT52U-E Premium Remote Controller C/W 24/7 Schedule Timer + Bluetooth £157 RBC-MTSC1 Mini Touch Screen Controller £272 RBC-MTSC2 Mini Touch Screen Controller C/W Schedule Timer £272 Model Description Price BMS-CT1280E Touch Screen Controller £4,189 BMS-CT2560U-E 256 Touch Screen Controller (Multi-Language) £6,143 BMS-CT5121E Touch Screen Controller £8,733 RBC-BP2 Black Pear BMS Controller £5,233 RBC-BP1 Black Pear Controller For BACnet £4,254 RBC-BPM1 Black Pear Controller For Modbus £4,254 These air conditioning units must be installed by an F-Gas qualified engineer. We can install the

unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.

Key Details

• Brand / Vendor: Toshiba Air Conditioning
• Product SKU: RAV-GM401ATP-E RAV-HM401KRTP-E
• MPN / Model: RAV-GM401ATP-E RAV-HM401KRTP-E
• Category: Toshiba Air Conditioning RAS Wall Mounted Digital Heat Pump Inverter 1Ph and 3Ph
• Parent Category: Toshiba Air Conditioning RAS High-Wall Inverter Heat Pump Split
• Condition: New
• Availability: InStock
